| Mfr. #: | 2N5657 |
|---|---|
| Hersteller: | STMicroelectronics |
| Beschreibung: | Bipolar Transistors - BJT NPN Fast Switching |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | 2N5657 Datenblatt |
Product belongs to the 2N5657 series. Tube is the packaging method for this product Through Hole Mounting-Style SOT-32-3 Configuration Single Power-off control: 20 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 350 V The transistor polarity is NPN. Saturation voltage between collector and emitter is 10 V The 375 V voltage rating is 40 V. 6 V rating of 5 V Max DC collector current: 1 A Gain-Bandwidth-Product: 10 MHz This product is capable of handling a 0.5 A continuous collector current. Minimum hfe for DC collector-base gain is 30. 250 of 605.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

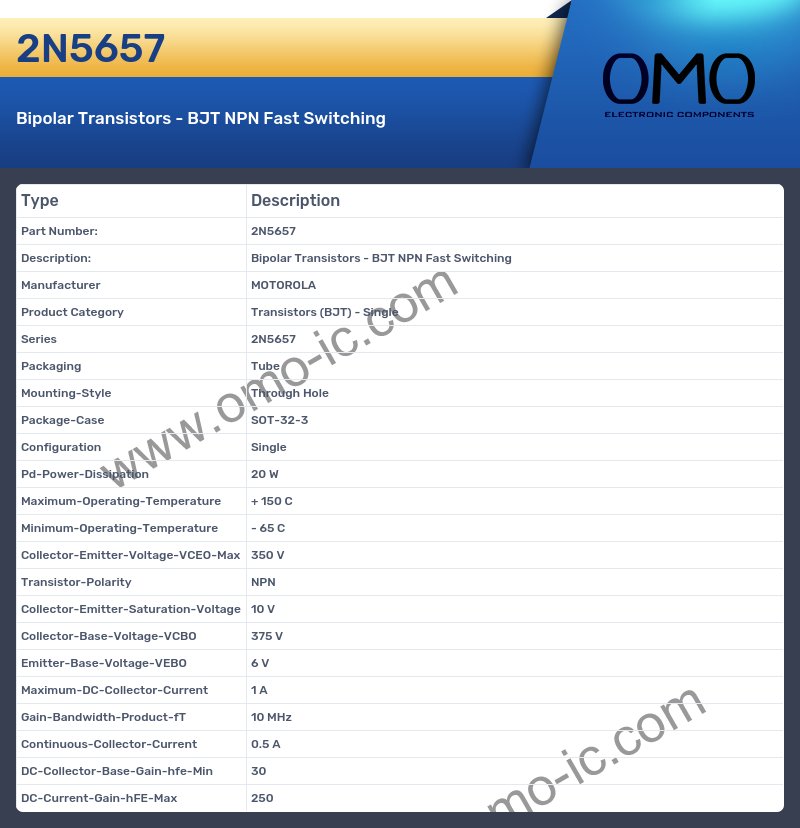

2N5657 Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed 2N5657
A: What is the Packaging of the product?
Q: The Packaging of the product is Tube.
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed Through Hole
A: What is the Package-Case of the product?
Q: The Package-Case of the product is SOT-32-3.
A: Is the cutoff frequency of the product Configuration?
Q: Yes, the product's Configuration is indeed Single
A: What is the Pd-Power-Dissipation of the product?
Q: The Pd-Power-Dissipation of the product is 20 W.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 150 C.
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 65 C.
A: What is the Collector-Emitter-Voltage-VCEO-Max of the product?
Q: The Collector-Emitter-Voltage-VCEO-Max of the product is 350 V.
A: At what frequency does the Transistor-Polarity?
Q: The product Transistor-Polarity is NPN.
A: Is the cutoff frequency of the product Collector-Emitter-Saturation-Voltage?
Q: Yes, the product's Collector-Emitter-Saturation-Voltage is indeed 10 V
A: At what frequency does the Collector-Base-Voltage-VCBO?
Q: The product Collector-Base-Voltage-VCBO is 375 V.
A: Is the cutoff frequency of the product Emitter-Base-Voltage-VEBO?
Q: Yes, the product's Emitter-Base-Voltage-VEBO is indeed 6 V
A: Is the cutoff frequency of the product Maximum-DC-Collector-Current?
Q: Yes, the product's Maximum-DC-Collector-Current is indeed 1 A
A: At what frequency does the Gain-Bandwidth-Product-fT?
Q: The product Gain-Bandwidth-Product-fT is 10 MHz.
A: At what frequency does the Continuous-Collector-Current?
Q: The product Continuous-Collector-Current is 0.5 A.
A: At what frequency does the DC-Collector-Base-Gain-hfe-Min?
Q: The product DC-Collector-Base-Gain-hfe-Min is 30.
A: What is the DC-Current-Gain-hFE-Max of the product?
Q: The DC-Current-Gain-hFE-Max of the product is 250.
