2SD1047

2SD1047 Overview

Product belongs to the 500V Transistors series. Tube is the packaging method for this product Weight of 0.238311 oz Through Hole Mounting-Style TO-3P-3, SC-65-3 Through Hole mounting type Supplier device package: TO-3P Transistor type: NPN Maximum current collector Ic is 12A . Maximum collector-emitter breakdown voltage of 140V DC current gain minimum (hFE) of Ic/Vce at 60 @ 1A, 5V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 700mV @ 700mA, 7A Power-off control: 100 W Rated VCEO up to 140 V The transistor polarity is NPN. 6 V rating of 5 V Gain-Bandwidth-Product: 20 MHz This product is capable of handling a 12 A continuous collector current. Minimum hfe for DC collector-base gain is 50.

2SD1047 Image

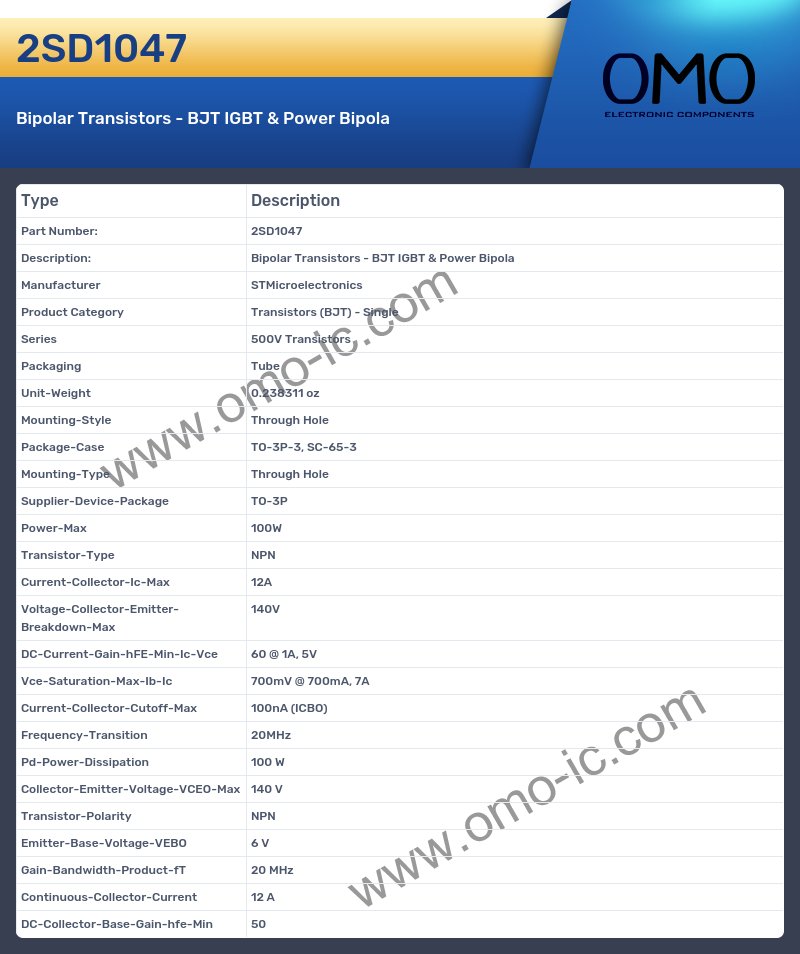

2SD1047 Specifications

• Manufacturer STMicroelectronics
• Product Category Transistors (BJT) - Single
• Series 500V Transistors
• Packaging Tube
• Unit-Weight 0.238311 oz
• Mounting-Style Through Hole
• Package-Case TO-3P-3, SC-65-3
• Mounting-Type Through Hole
• Supplier-Device-Package TO-3P
• Power-Max 100W
• Transistor-Type NPN
• Current-Collector-Ic-Max 12A
• Voltage-Collector-Emitter-Breakdown-Max 140V
• DC-Current-Gain-hFE-Min-Ic-Vce 60 @ 1A, 5V
• Vce-Saturation-Max-Ib-Ic 700mV @ 700mA, 7A
• Current-Collector-Cutoff-Max 100nA (ICBO)
• Frequency-Transition 20MHz
• Pd-Power-Dissipation 100 W
• Collector-Emitter-Voltage-VCEO-Max 140 V
• Transistor-Polarity NPN
• Emitter-Base-Voltage-VEBO 6 V
• Gain-Bandwidth-Product-fT 20 MHz
• Continuous-Collector-Current 12 A
• DC-Collector-Base-Gain-hfe-Min 50
