2STA1695 Overview

Product belongs to the 2ST1695 series. Tube is the packaging method for this product Weight of 0.238311 oz TO-3P Configuration Single Power-off control: 100000 mW Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 140 V The transistor polarity is PNP. The 140 V voltage rating is 40 V. 6 V rating of 5 V Max DC collector current: 10 A Gain-Bandwidth-Product: 20 MHz Minimum hfe for DC collector-base gain is 70.

2STA1695 Image

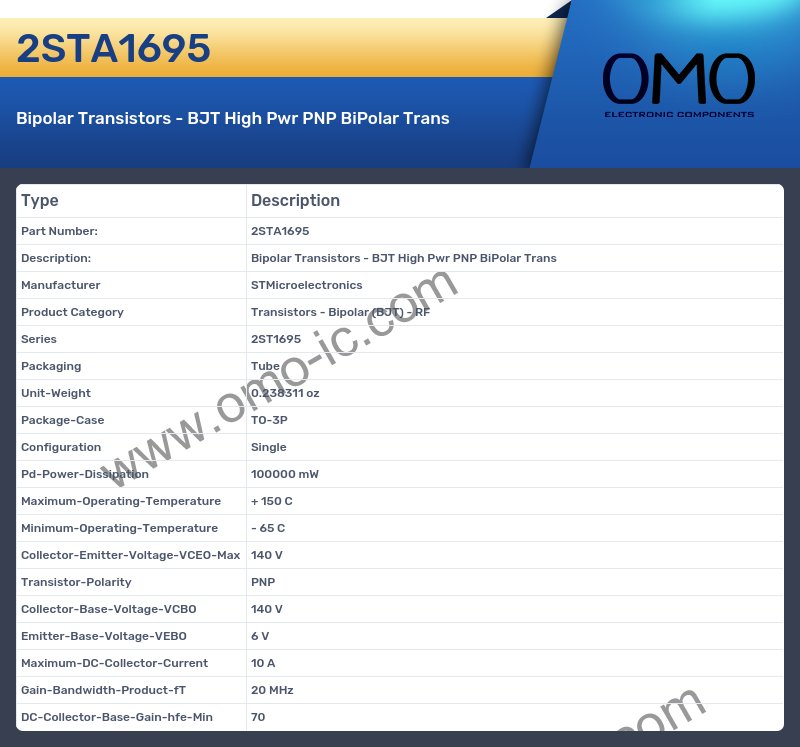

2STA1695 Specifications

• Manufacturer STMicroelectronics
• Product Category Transistors - Bipolar (BJT) - RF
• Series 2ST1695
• Packaging Tube
• Unit-Weight 0.238311 oz
• Package-Case TO-3P
• Configuration Single
• Pd-Power-Dissipation 100000 mW
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Collector-Emitter-Voltage-VCEO-Max 140 V
• Transistor-Polarity PNP
• Collector-Base-Voltage-VCBO 140 V
• Emitter-Base-Voltage-VEBO 6 V
• Maximum-DC-Collector-Current 10 A
• Gain-Bandwidth-Product-fT 20 MHz
• DC-Collector-Base-Gain-hfe-Min 70
