| Mfr. #: | 2STN1550 |
|---|---|
| Hersteller: | STMicroelectronics |
| Beschreibung: | Bipolar Transistors - BJT IGBT & Power Bipola |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | 2STN1550 Datenblatt |
Product belongs to the 500V Transistors series. Reel is the packaging method for this product Weight of 0.006632 oz SMD/SMT Mounting-Style SOT-223 Configuration Single Power-off control: 1600 mW Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 50 V The transistor polarity is NPN. The 50 V voltage rating is 40 V. 5 V rating of 5 V Max DC collector current: 5 A Minimum hfe for DC collector-base gain is 100 at 3 A at 2 V 135 at 2 A at 2 V. 100 at 3 A at 2 V of 605.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

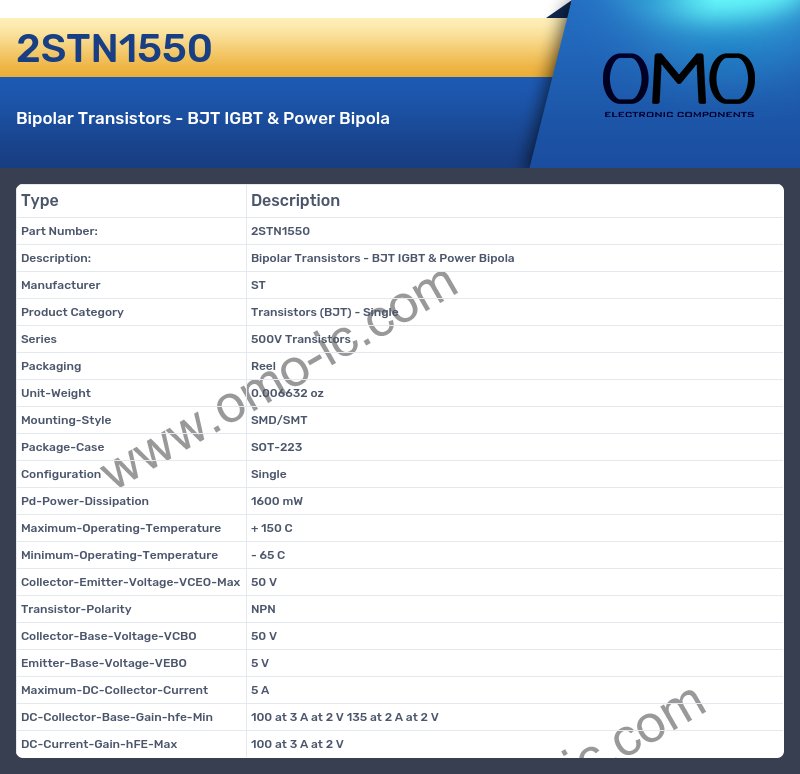

2STN1550 Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed 500V Transistors
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Reel
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.006632 oz
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed SOT-223
A: At what frequency does the Configuration?
Q: The product Configuration is Single.
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 1600 mW
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 150 C.
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 65 C.
A: At what frequency does the Collector-Emitter-Voltage-VCEO-Max?
Q: The product Collector-Emitter-Voltage-VCEO-Max is 50 V.
A: What is the Transistor-Polarity of the product?
Q: The Transistor-Polarity of the product is NPN.
A: What is the Collector-Base-Voltage-VCBO of the product?
Q: The Collector-Base-Voltage-VCBO of the product is 50 V.
A: What is the Emitter-Base-Voltage-VEBO of the product?
Q: The Emitter-Base-Voltage-VEBO of the product is 5 V.
A: What is the Maximum-DC-Collector-Current of the product?
Q: The Maximum-DC-Collector-Current of the product is 5 A.
A: Is the cutoff frequency of the product DC-Collector-Base-Gain-hfe-Min?
Q: Yes, the product's DC-Collector-Base-Gain-hfe-Min is indeed 100 at 3 A at 2 V 135 at 2 A at 2 V
A: What is the DC-Current-Gain-hFE-Max of the product?
Q: The DC-Current-Gain-hFE-Max of the product is 100 at 3 A at 2 V.
