5962-9211701MPA Overview

RoHS compliant with No Single 1 Channel for basic signal processing This product has a 3 V/us at +/- 15 V for fast and accurate signal processing. CMRR is 90 dB Input Bias Current is 0.25 pA The 500 uV is 3 millivolts. The 90 nV/sqrt Hz at +/- 15 V is 5.2 nV/sqrt Hz. Maximum supply voltage of 36 V The minimum supply voltage is 10 V Current consumption is 700 uA . Maximum Operating Temperature: + 125 C - 55 C minimum operating temperature Power-off control: No Shutdown Input bias current of Through Hole Package type is TO-99-8 Bulk is the packaging method for this product The power dissipation is 500 mW. This product is categorized as Precision Amplifiers 90 dB PSRR Product belongs to the AD549 series. Voltage gain of 120 dB

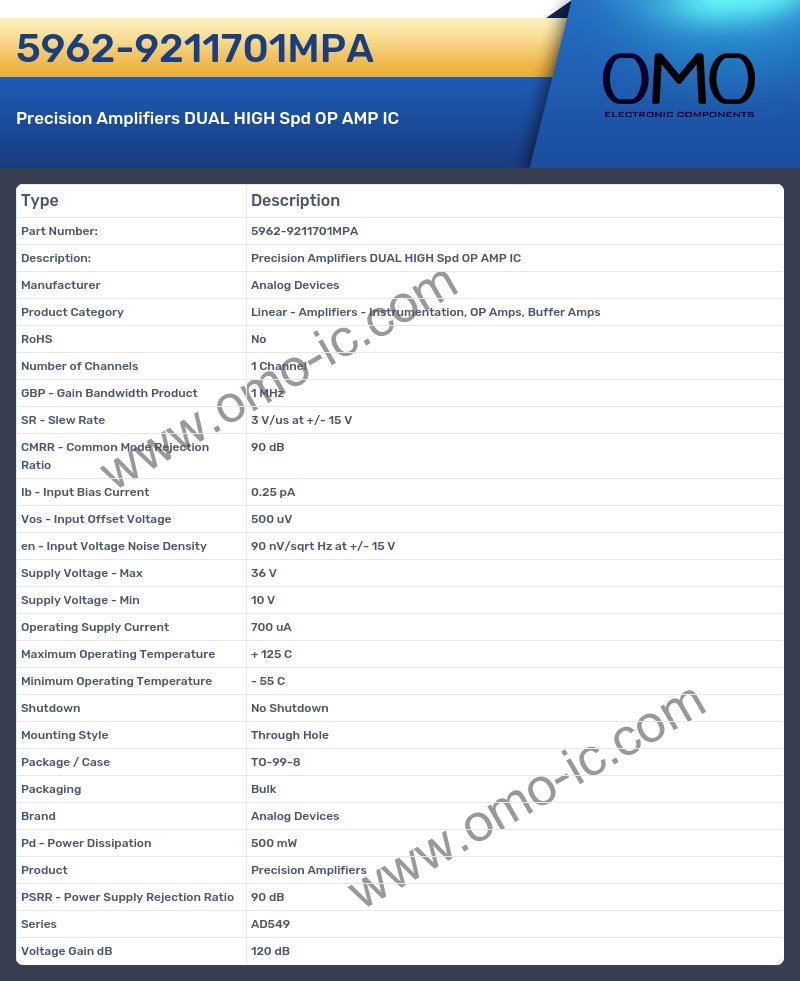

5962-9211701MPA Image

5962-9211701MPA Specifications

• Manufacturer Analog Devices
• Product Category Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
• RoHS No
• Number of Channels 1 Channel
• GBP - Gain Bandwidth Product 1 MHz
• SR - Slew Rate 3 V/us at +/- 15 V
• CMRR - Common Mode Rejection Ratio 90 dB
• Ib - Input Bias Current 0.25 pA
• Vos - Input Offset Voltage 500 uV
• en - Input Voltage Noise Density 90 nV/sqrt Hz at +/- 15 V
• Supply Voltage - Max 36 V
• Supply Voltage - Min 10 V
• Operating Supply Current 700 uA
• Maximum Operating Temperature + 125 C
• Minimum Operating Temperature - 55 C
• Shutdown No Shutdown
• Mounting Style Through Hole
• Package / Case TO-99-8
• Packaging Bulk
• Brand Analog Devices
• Pd - Power Dissipation 500 mW
• Product Precision Amplifiers
• PSRR - Power Supply Rejection Ratio 90 dB
• Series AD549
• Voltage Gain dB 120 dB
