74ACT11543DWG4

74ACT11543DWG4 Overview

This product is manufactured by Texas Instruments. The product uses the ACT logic family. The product's TTL input level ensures compatibility with a wide range of devices. CMOS Output Level for flexible output configuration The output type is 3-State. This product has a - 24 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 24 mA The propagation delay time is 10.8 ns. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. SOIC-28 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Latched Transceiver The height of the product is 2.35 mm. 18 mm long This product has 1 circuit. CMOS Texas Instruments is a trusted brand for quality electronics The product can operate at a maximum temperature of SMD/SMT. This product is equipped with 8 for efficient performance. Maximum supply current: 8 uA 5 V operating supply voltage range Polarity type: Non-Inverting Bus Transceivers product type 1 of 100 Logic ICs as subcategory 1. 0.078125 oz of Unit Weight

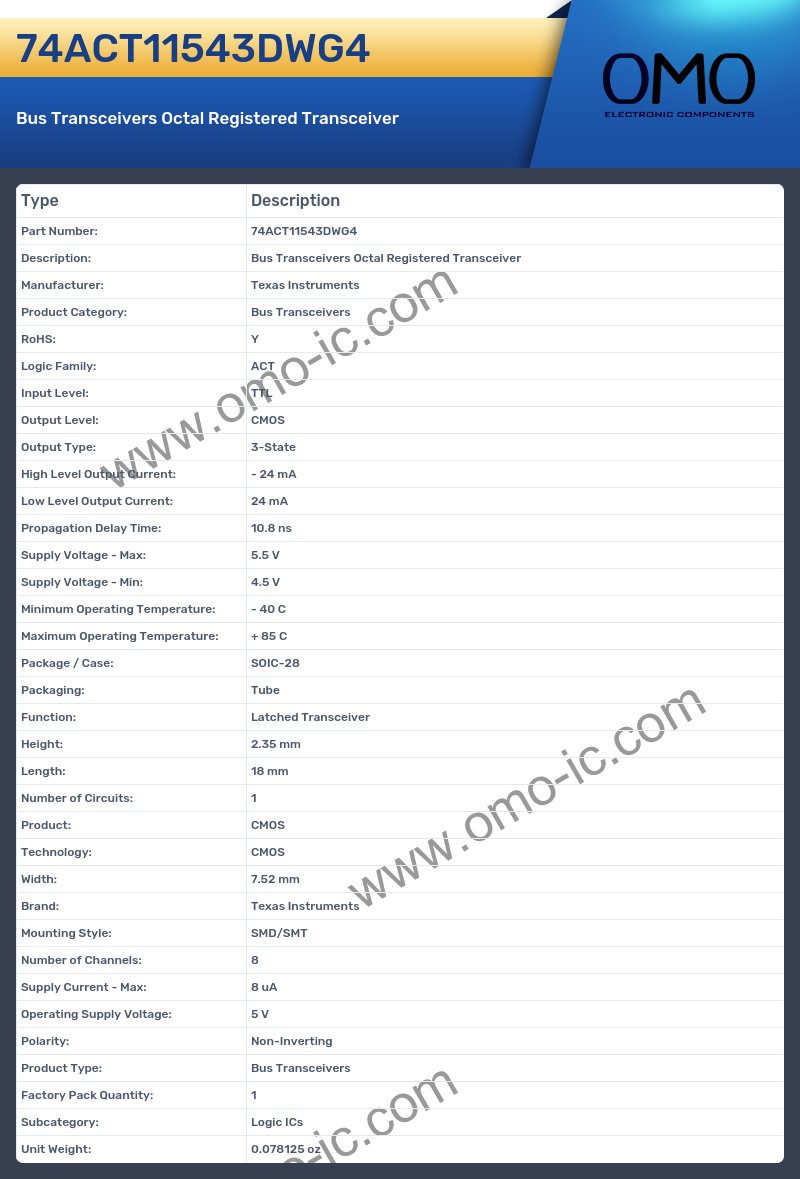

74ACT11543DWG4 Image

74ACT11543DWG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Bus Transceivers
• RoHS: Y
• Logic Family: ACT
• Input Level: TTL
• Output Level: CMOS
• Output Type: 3-State
• High Level Output Current: - 24 mA
• Low Level Output Current: 24 mA
• Propagation Delay Time: 10.8 ns
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 4.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Package / Case: SOIC-28
• Packaging: Tube
• Function: Latched Transceiver
• Height: 2.35 mm
• Length: 18 mm
• Number of Circuits: 1
• Product: CMOS
• Technology: CMOS
• Width: 7.52 mm
• Brand: Texas Instruments
• Mounting Style: SMD/SMT
• Number of Channels: 8
• Supply Current - Max: 8 uA
• Operating Supply Voltage: 5 V
• Polarity: Non-Inverting
• Product Type: Bus Transceivers
• Factory Pack Quantity: 1
• Subcategory: Logic ICs
• Unit Weight: 0.078125 oz
