74LX1G05STR

74LX1G05STR Overview

This product is manufactured by STMicroelectronics. Polarity type: Inverting Supply Voltage - Max: 5.5 V Supply Voltage - Min: 1.65 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. SOT-23-5 package/case type is utilized by this product. Reel packaging for easy dispensing t's a Buffer/Driver The height of the product is 1.3 mm (Max). 3 mm (Max) long The output type is Open Drain. STMicroelectronics is a trusted brand for quality electronics The product uses the LCX logic family. CMOS. This product is equipped with 1 Channel for efficient performance. Maximum supply current: 10 uA Single-Ended is the input signal type. Low Level Output Current is 32 mA 1.65 V to 5.5 V operating supply voltage range Buffers & Line Drivers product type The propagation delay time is 5.5 ns at 2.7 V, 4.2 ns at 3 V to 3.6 V. 3000 of 100 Logic ICs as subcategory 1. 0.000222 oz of Unit Weight

74LX1G05STR Image

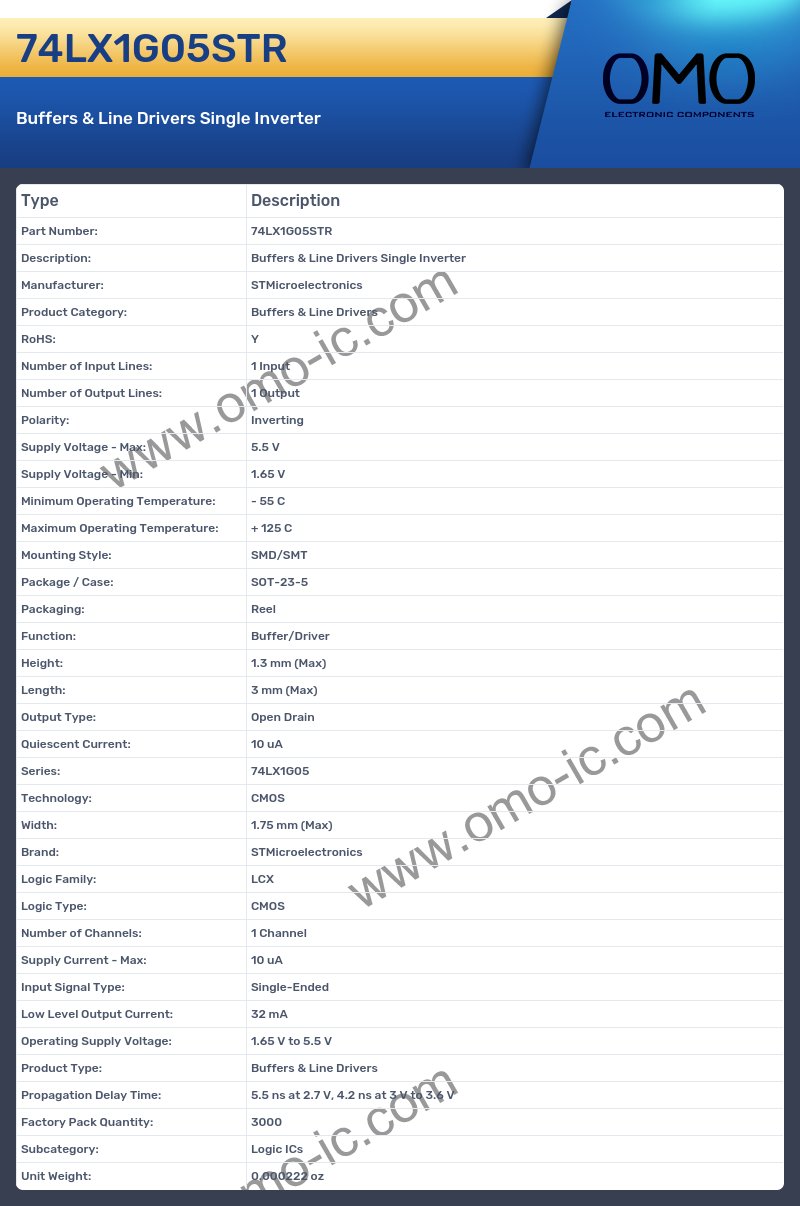

74LX1G05STR Specifications

• Manufacturer: STMicroelectronics
• Product Category: Buffers & Line Drivers
• RoHS: Y
• Number of Input Lines: 1 Input
• Number of Output Lines: 1 Output
• Polarity: Inverting
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 1.65 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: SOT-23-5
• Packaging: Reel
• Function: Buffer/Driver
• Height: 1.3 mm (Max)
• Length: 3 mm (Max)
• Output Type: Open Drain
• Quiescent Current: 10 uA
• Series: 74LX1G05
• Technology: CMOS
• Width: 1.75 mm (Max)
• Brand: STMicroelectronics
• Logic Family: LCX
• Logic Type: CMOS
• Number of Channels: 1 Channel
• Supply Current - Max: 10 uA
• Input Signal Type: Single-Ended
• Low Level Output Current: 32 mA
• Operating Supply Voltage: 1.65 V to 5.5 V
• Product Type: Buffers & Line Drivers
• Propagation Delay Time: 5.5 ns at 2.7 V, 4.2 ns at 3 V to 3.6 V
• Factory Pack Quantity: 3000
• Subcategory: Logic ICs
• Unit Weight: 0.000222 oz
