AD694JNZ

AD694JNZ Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 1 Channel for efficient performance. This product has a 80 dB of 50 dB, ensuring reliable signal acquisition. This product has an 5 nA of 5 uA for precise signal processing. Supply Voltage - Max: 36 V Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of Through Hole. PDIP-16 package/case type is utilized by this product. Tube packaging for easy dispensing The amplifier type is Current Transmitter. The height of the product is 4.95 mm (Max). Buffer input type 21.34 mm (Max) long Instrumentation Amplifiers Supply Type: Single Analog Devices is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. 4.5 V to 36 V operating supply voltage range Instrumentation Amplifiers product type This product has a 80 dB of 50 dB, providing reliable power supply noise rejection. 25 of 100 Amplifier ICs as subcategory 1. 0.057419 oz of Unit Weight

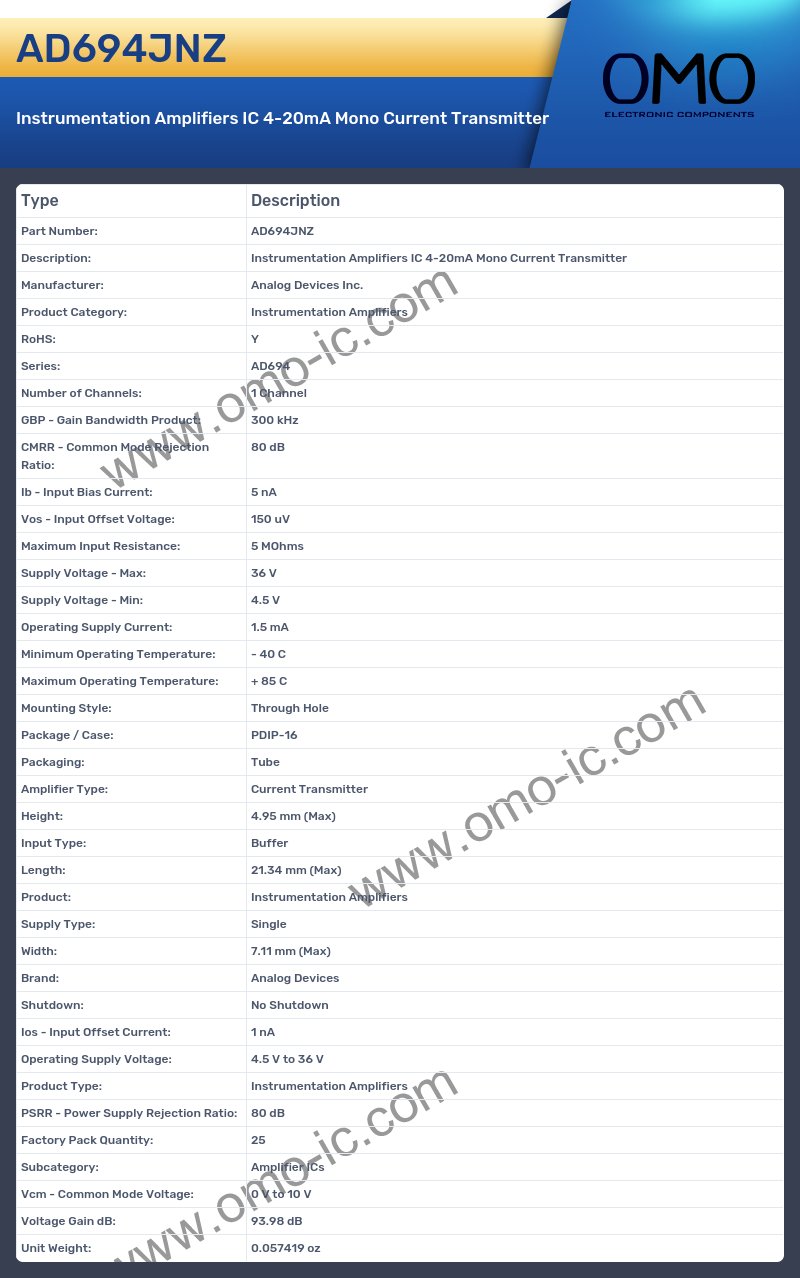

AD694JNZ Image

AD694JNZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Instrumentation Amplifiers
• RoHS: Y
• Series: AD694
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: 300 kHz
• CMRR - Common Mode Rejection Ratio: 80 dB
• Ib - Input Bias Current: 5 nA
• Vos - Input Offset Voltage: 150 uV
• Maximum Input Resistance: 5 MOhms
• Supply Voltage - Max: 36 V
• Supply Voltage - Min: 4.5 V
• Operating Supply Current: 1.5 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: Through Hole
• Package / Case: PDIP-16
• Packaging: Tube
• Amplifier Type: Current Transmitter
• Height: 4.95 mm (Max)
• Input Type: Buffer
• Length: 21.34 mm (Max)
• Product: Instrumentation Amplifiers
• Supply Type: Single
• Width: 7.11 mm (Max)
• Brand: Analog Devices
• Shutdown: No Shutdown
• Ios - Input Offset Current: 1 nA
• Operating Supply Voltage: 4.5 V to 36 V
• Product Type: Instrumentation Amplifiers
• PSRR - Power Supply Rejection Ratio: 80 dB
• Factory Pack Quantity: 25
• Subcategory: Amplifier ICs
• Vcm - Common Mode Voltage: 0 V to 10 V
• Voltage Gain dB: 93.98 dB
• Unit Weight: 0.057419 oz
