AD7304BRU

AD7304BRU Overview

This product is manufactured by Analog Devices Inc.. The sampling rate of this product is 1 MS/s. This product is equipped with 4 Channel for efficient performance. 1 us settling time Interface Type: Serial, 3-Wire, SPI External is the reference type. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 2.7 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. TSSOP-16 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 1.05 mm. 5 mm long The output type is Voltage. This device belongs to the General Purpose type. R-2R architecture Analog Devices is a trusted brand for quality electronics This product does not have a Shutdown feature, ensuring continuous operation. The +/- 1 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within +/- 1 LSB 2.7 V to 5.5 V operating supply voltage range 60 mW DACs - Digital to Analog Converters product type 96 of 100 Data Converter ICs as subcategory 1. 0.006102 oz of Unit Weight

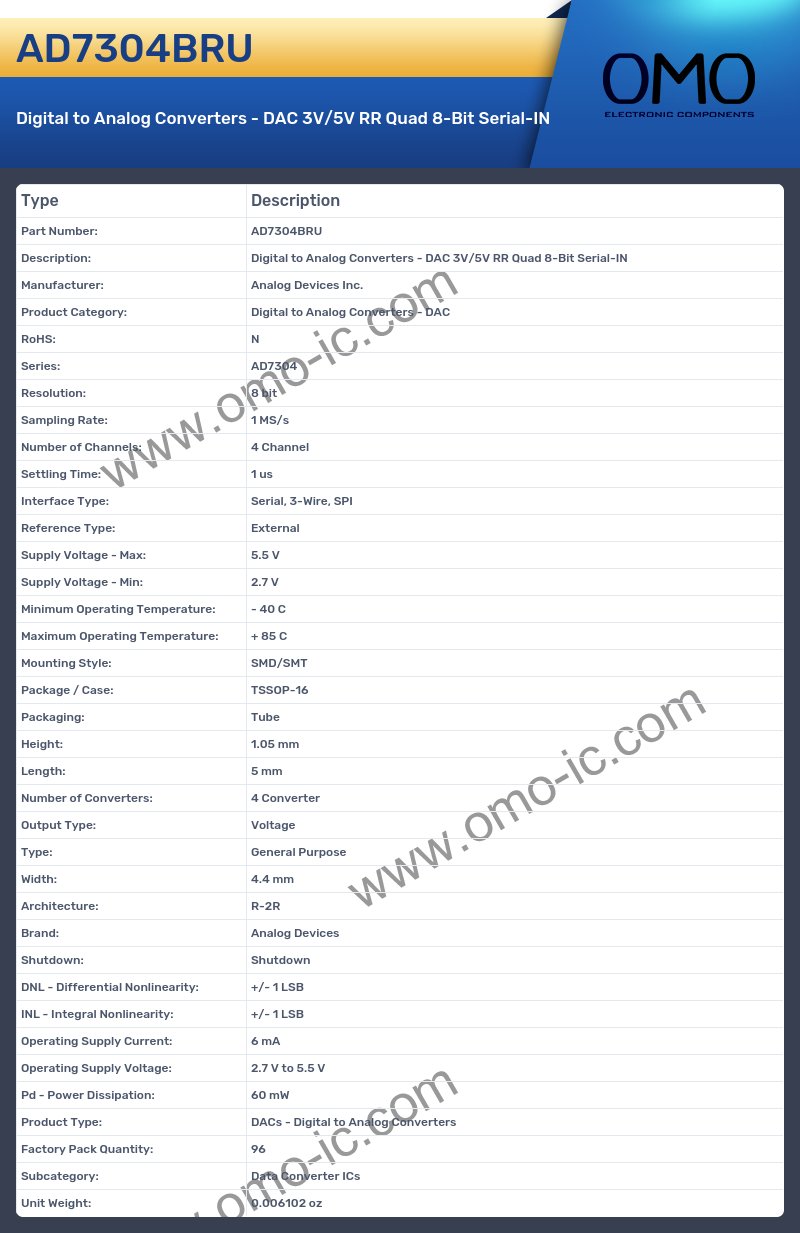

AD7304BRU Image

AD7304BRU Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Digital to Analog Converters - DAC
• RoHS: N
• Series: AD7304
• Resolution: 8 bit
• Sampling Rate: 1 MS/s
• Number of Channels: 4 Channel
• Settling Time: 1 us
• Interface Type: Serial, 3-Wire, SPI
• Reference Type: External
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 2.7 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-16
• Packaging: Tube
• Height: 1.05 mm
• Length: 5 mm
• Number of Converters: 4 Converter
• Output Type: Voltage
• Type: General Purpose
• Width: 4.4 mm
• Architecture: R-2R
• Brand: Analog Devices
• Shutdown: Shutdown
• DNL - Differential Nonlinearity: +/- 1 LSB
• INL - Integral Nonlinearity: +/- 1 LSB
• Operating Supply Current: 6 mA
• Operating Supply Voltage: 2.7 V to 5.5 V
• Pd - Power Dissipation: 60 mW
• Product Type: DACs - Digital to Analog Converters
• Factory Pack Quantity: 96
• Subcategory: Data Converter ICs
• Unit Weight: 0.006102 oz
