AD7476BRTZ-REEL7

AD7476BRTZ-REEL7 Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. SOT-23-6 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 1 MS/s. Single-Ended input type Interface Type: SPI SAR architecture External is the reference type. This product requires an 2.35 V to 5.25 V for proper operation. The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. Reel packaging for easy dispensing The height of the product is 1.15 mm. 5.25 V Input Voltage 2.9 mm long This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics EVAL-CN0303-SDPZ is a versatile development platform for hardware and software The - 0.9 LSB/1.5 LSB, ensuring accurate and precise analog-to-digital conversion. +/- 1.5 LSB is 0.2%. INL is within +/- 1.5 LSB 5 V operating supply voltage range 17.5 mW ADCs - Analog to Digital Converters product type 3000 of 100 Data Converter ICs as subcategory 1. 0.001270 oz of Unit Weight

AD7476BRTZ-REEL7 Image

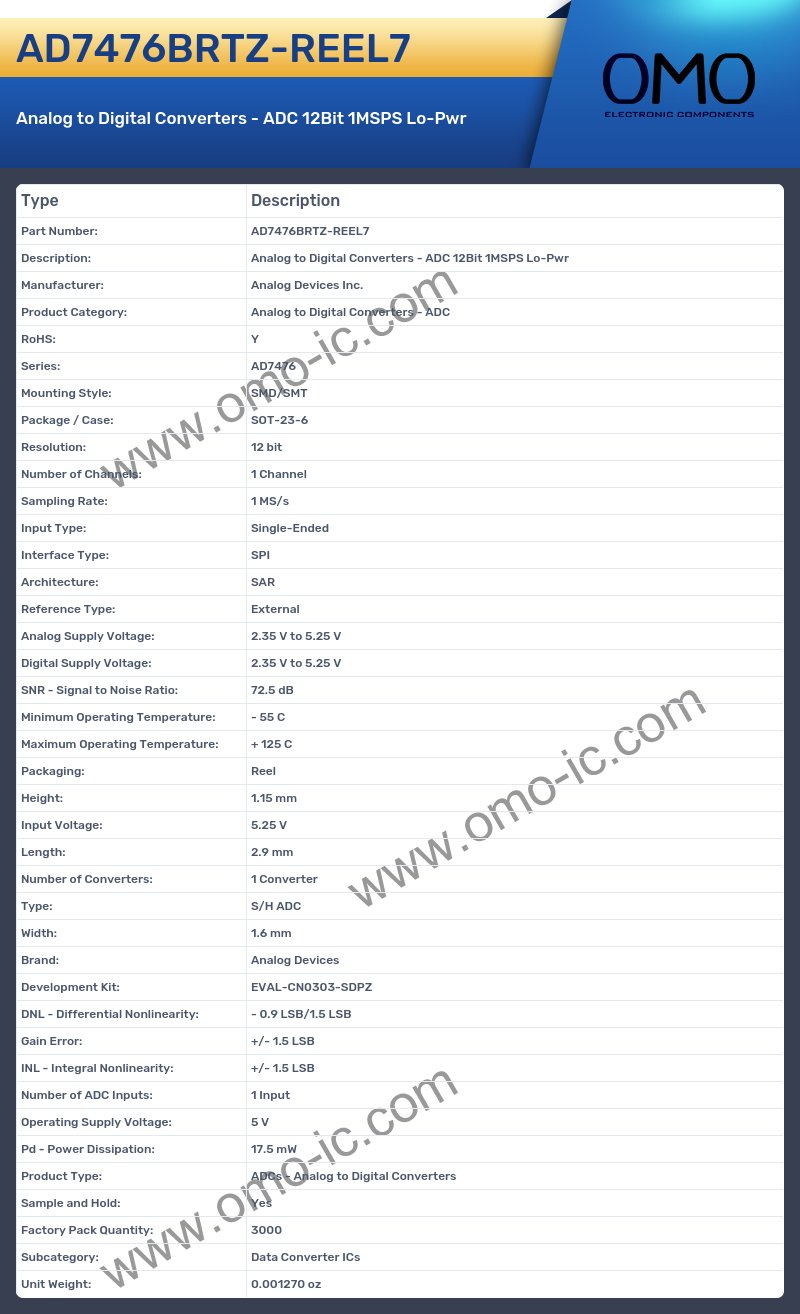

AD7476BRTZ-REEL7 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD7476
• Mounting Style: SMD/SMT
• Package / Case: SOT-23-6
• Resolution: 12 bit
• Number of Channels: 1 Channel
• Sampling Rate: 1 MS/s
• Input Type: Single-Ended
• Interface Type: SPI
• Architecture: SAR
• Reference Type: External
• Analog Supply Voltage: 2.35 V to 5.25 V
• Digital Supply Voltage: 2.35 V to 5.25 V
• SNR - Signal to Noise Ratio: 72.5 dB
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Packaging: Reel
• Height: 1.15 mm
• Input Voltage: 5.25 V
• Length: 2.9 mm
• Number of Converters: 1 Converter
• Type: S/H ADC
• Width: 1.6 mm
• Brand: Analog Devices
• Development Kit: EVAL-CN0303-SDPZ
• DNL - Differential Nonlinearity: - 0.9 LSB/1.5 LSB
• Gain Error: +/- 1.5 LSB
• INL - Integral Nonlinearity: +/- 1.5 LSB
• Number of ADC Inputs: 1 Input
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 17.5 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 3000
• Subcategory: Data Converter ICs
• Unit Weight: 0.001270 oz
