AD7870CQ

AD7870CQ Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of Through Hole. CDIP-24 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 100 kS/s. Single-Ended input type Interface Type: I2C, Parallel SAR architecture Internal is the reference type. The minimum operating temperature of this product is - 25 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 3.56 mm. +/- 3 V Input Voltage 32.51 mm long This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics The +/- 1 LSB, ensuring accurate and precise analog-to-digital conversion. +/- 5 LSB is 0.2%. INL is within +/- 0.5 LSB 5 V operating supply voltage range 60 mW ADCs - Analog to Digital Converters product type 15 of 100 Data Converter ICs as subcategory

AD7870CQ Image

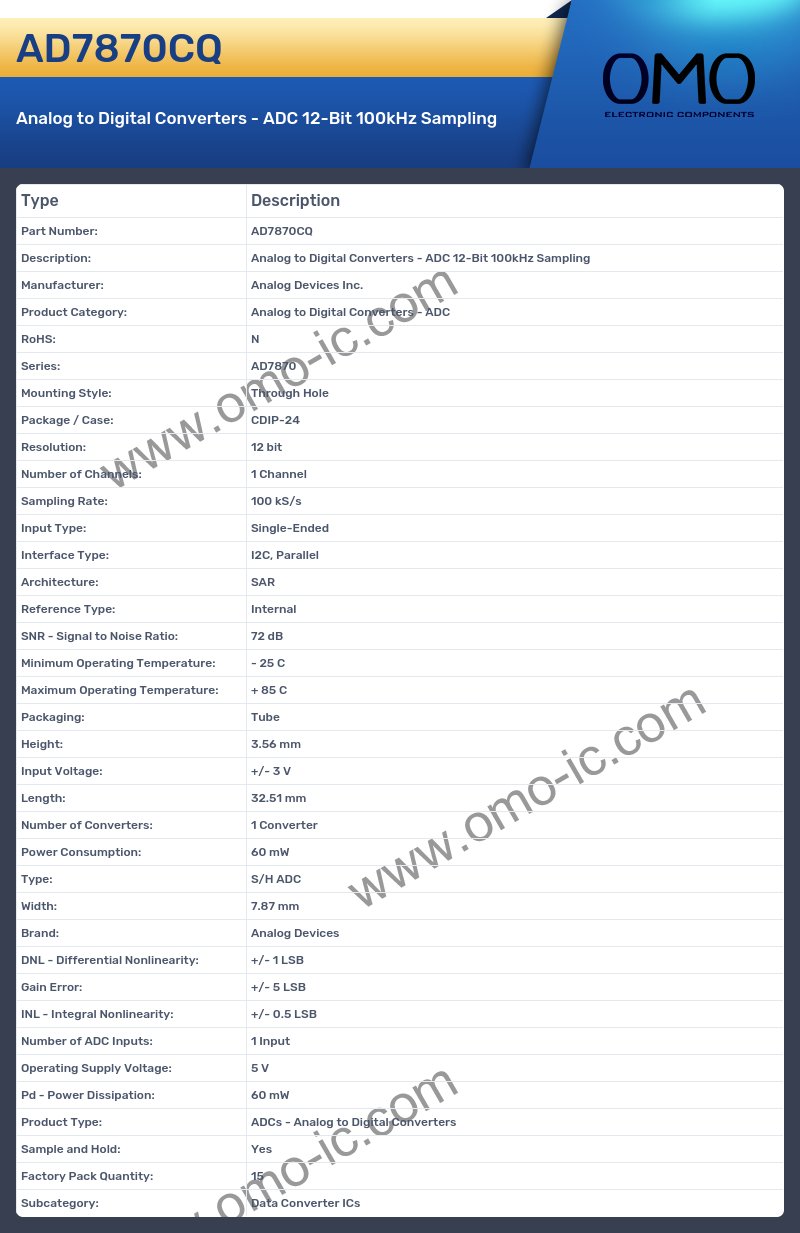

AD7870CQ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: N
• Series: AD7870
• Mounting Style: Through Hole
• Package / Case: CDIP-24
• Resolution: 12 bit
• Number of Channels: 1 Channel
• Sampling Rate: 100 kS/s
• Input Type: Single-Ended
• Interface Type: I2C, Parallel
• Architecture: SAR
• Reference Type: Internal
• SNR - Signal to Noise Ratio: 72 dB
• Minimum Operating Temperature: - 25 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Height: 3.56 mm
• Input Voltage: +/- 3 V
• Length: 32.51 mm
• Number of Converters: 1 Converter
• Power Consumption: 60 mW
• Type: S/H ADC
• Width: 7.87 mm
• Brand: Analog Devices
• DNL - Differential Nonlinearity: +/- 1 LSB
• Gain Error: +/- 5 LSB
• INL - Integral Nonlinearity: +/- 0.5 LSB
• Number of ADC Inputs: 1 Input
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 60 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 15
• Subcategory: Data Converter ICs
