AD7891ASZ-2

AD7891ASZ-2 Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. QFP-44 package/case type is utilized by this product. This product is equipped with 8 Channel for efficient performance. The sampling rate of this product is 500 kS/s. Single-Ended input type Interface Type: 5-Wire, Parallel SAR architecture External, Internal is the reference type. This product requires an 5 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 105 C. Tray packaging for easy dispensing The height of the product is 2 mm. 2.5 V/5 V, +/- 2.5 V Input Voltage 10 mm long The output type is CMOS/TTL. This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics The +/- 1 LSB, ensuring accurate and precise analog-to-digital conversion. +/- 3 LSB is 0.2%. INL is within +/- 1 LSB Yes regarding Moisture Sensitivity 5 V operating supply voltage range 100 mW ADCs - Analog to Digital Converters product type 96 of 100 Data Converter ICs as subcategory 1. 0.017588 oz of Unit Weight

AD7891ASZ-2 Image

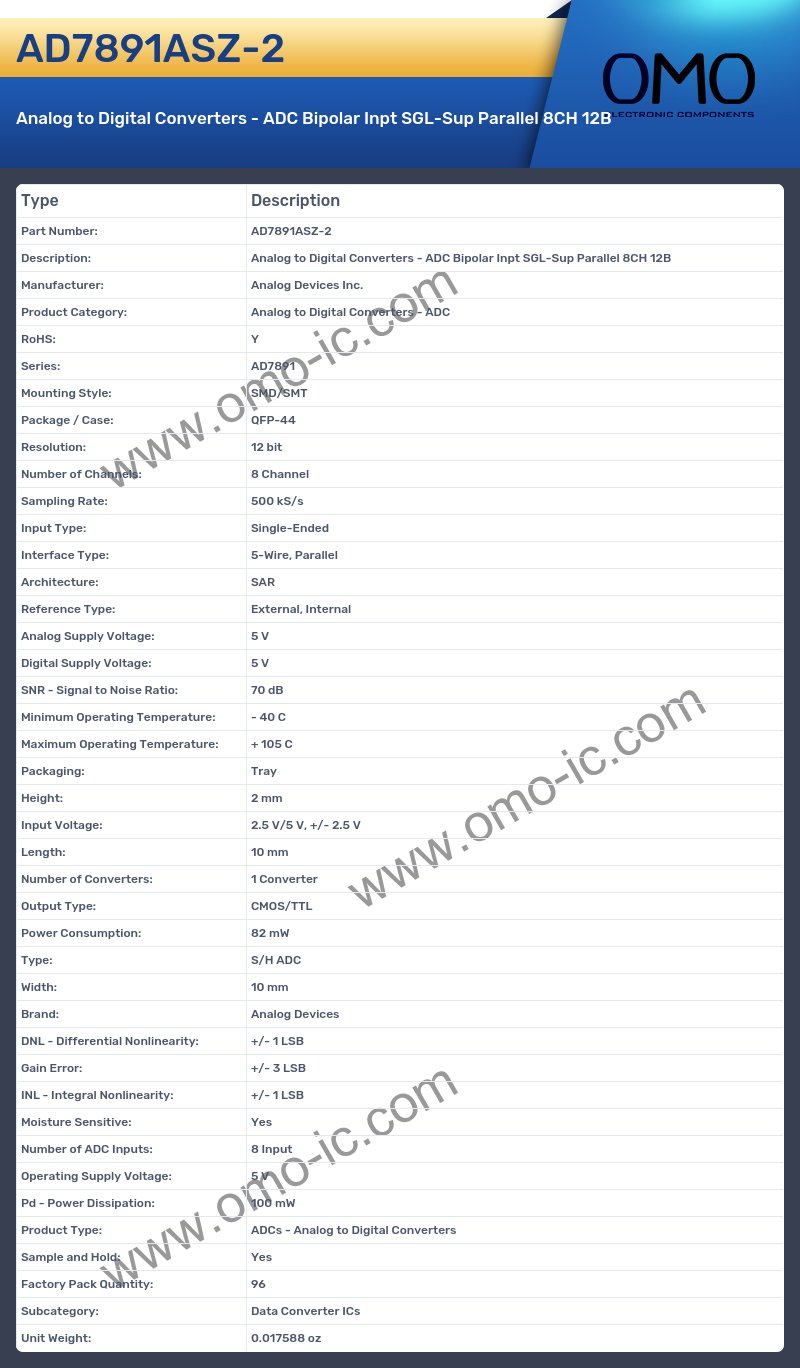

AD7891ASZ-2 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD7891
• Mounting Style: SMD/SMT
• Package / Case: QFP-44
• Resolution: 12 bit
• Number of Channels: 8 Channel
• Sampling Rate: 500 kS/s
• Input Type: Single-Ended
• Interface Type: 5-Wire, Parallel
• Architecture: SAR
• Reference Type: External, Internal
• Analog Supply Voltage: 5 V
• Digital Supply Voltage: 5 V
• SNR - Signal to Noise Ratio: 70 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 105 C
• Packaging: Tray
• Height: 2 mm
• Input Voltage: 2.5 V/5 V, +/- 2.5 V
• Length: 10 mm
• Number of Converters: 1 Converter
• Output Type: CMOS/TTL
• Power Consumption: 82 mW
• Type: S/H ADC
• Width: 10 mm
• Brand: Analog Devices
• DNL - Differential Nonlinearity: +/- 1 LSB
• Gain Error: +/- 3 LSB
• INL - Integral Nonlinearity: +/- 1 LSB
• Moisture Sensitive: Yes
• Number of ADC Inputs: 8 Input
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 100 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 96
• Subcategory: Data Converter ICs
• Unit Weight: 0.017588 oz
