AD8138ARZ

AD8138ARZ Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 1 Channel for efficient performance. This product has a - 77 dB of 50 dB, ensuring reliable signal acquisition. This product has an 7 uA of 5 uA for precise signal processing. Supply Voltage - Max: 11 V Supply Voltage - Min: 3 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 1.5 mm (Max). 5 mm (Max) long Differential Amplifiers Supply Type: Single, Dual Analog Devices is a trusted brand for quality electronics Maximum input voltage range of 5.5 V Gain ratio is 1 V/V. 1. The maximum dual supply voltage is +/- 5.5 V. +/- 1.4 V minimum dual supply voltage 1.4 V to 5.5 V operating supply voltage range 550 mW Differential Amplifiers product type This product has a - 90 dB of 50 dB, providing reliable power supply noise rejection. 16 ns settling time 98 of 100 Amplifier ICs as subcategory 1. 0.019048 oz of Unit Weight

AD8138ARZ Image

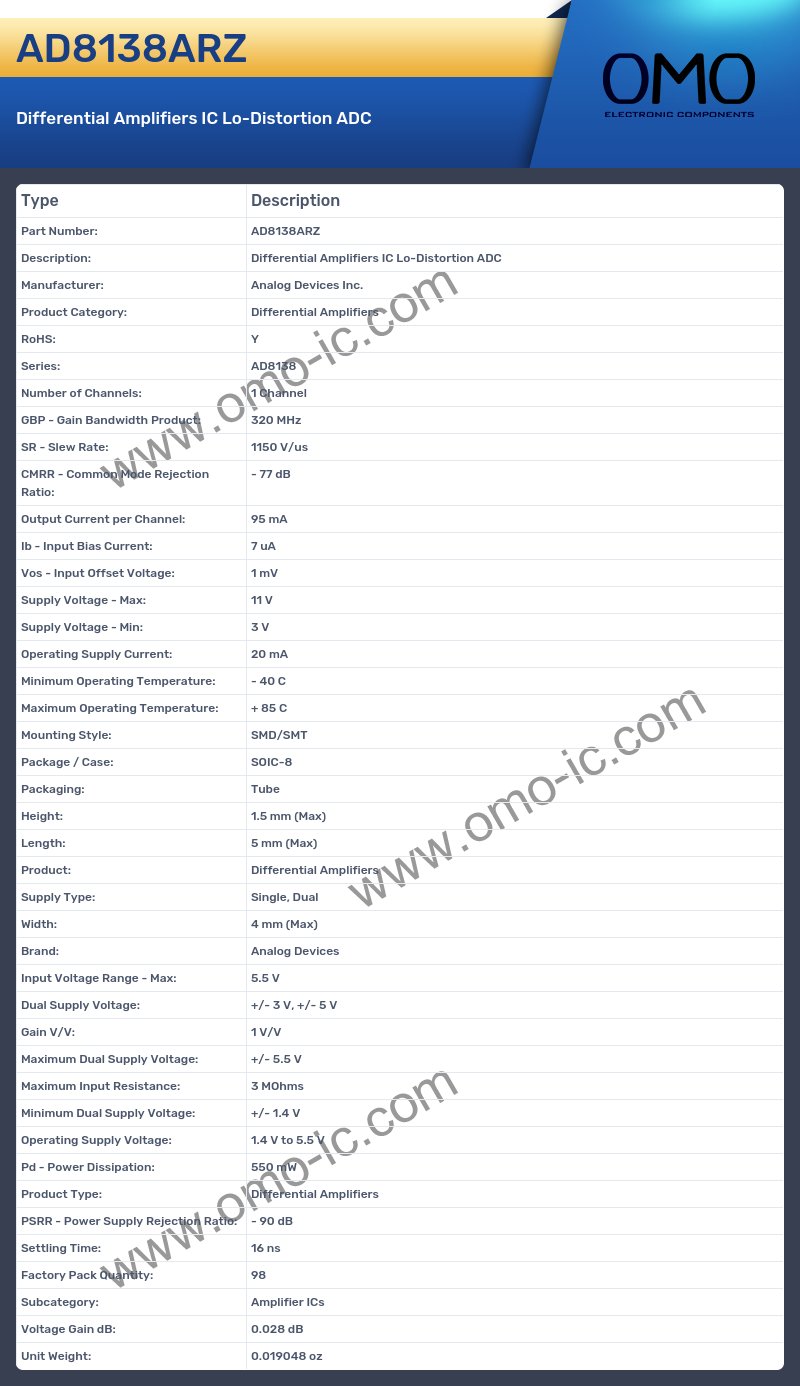

AD8138ARZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Differential Amplifiers
• RoHS: Y
• Series: AD8138
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: 320 MHz
• SR - Slew Rate: 1150 V/us
• CMRR - Common Mode Rejection Ratio: - 77 dB
• Output Current per Channel: 95 mA
• Ib - Input Bias Current: 7 uA
• Vos - Input Offset Voltage: 1 mV
• Supply Voltage - Max: 11 V
• Supply Voltage - Min: 3 V
• Operating Supply Current: 20 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Packaging: Tube
• Height: 1.5 mm (Max)
• Length: 5 mm (Max)
• Product: Differential Amplifiers
• Supply Type: Single, Dual
• Width: 4 mm (Max)
• Brand: Analog Devices
• Input Voltage Range - Max: 5.5 V
• Dual Supply Voltage: +/- 3 V, +/- 5 V
• Gain V/V: 1 V/V
• Maximum Dual Supply Voltage: +/- 5.5 V
• Maximum Input Resistance: 3 MOhms
• Minimum Dual Supply Voltage: +/- 1.4 V
• Operating Supply Voltage: 1.4 V to 5.5 V
• Pd - Power Dissipation: 550 mW
• Product Type: Differential Amplifiers
• PSRR - Power Supply Rejection Ratio: - 90 dB
• Settling Time: 16 ns
• Factory Pack Quantity: 98
• Subcategory: Amplifier ICs
• Voltage Gain dB: 0.028 dB
• Unit Weight: 0.019048 oz
