AD842SQ

AD842SQ Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of Through Hole. CDIP-14 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. This product has a 86 dB of 50 dB, ensuring reliable signal acquisition. This product has an 8 uA of 5 uA for precise signal processing. The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. This product does not have a No Shutdown feature, ensuring continuous operation. Tube packaging for easy dispensing The amplifier type is General Purpose. The height of the product is 3.56 mm (Max). 19.94 mm (Max) long Operational Amplifiers Supply Type: Dual This device belongs to the General Purpose Amplifier type. Analog Devices is a trusted brand for quality electronics 1. The maximum dual supply voltage is +/- 18 V. +/- 5 V minimum dual supply voltage +/- 15 V operating supply voltage range 1.1 W Op Amps - Operational Amplifiers product type This product has a 86 dB of 50 dB, providing reliable power supply noise rejection. 25 of 100 Amplifier ICs as subcategory 1. 0.042329 oz of Unit Weight

AD842SQ Image

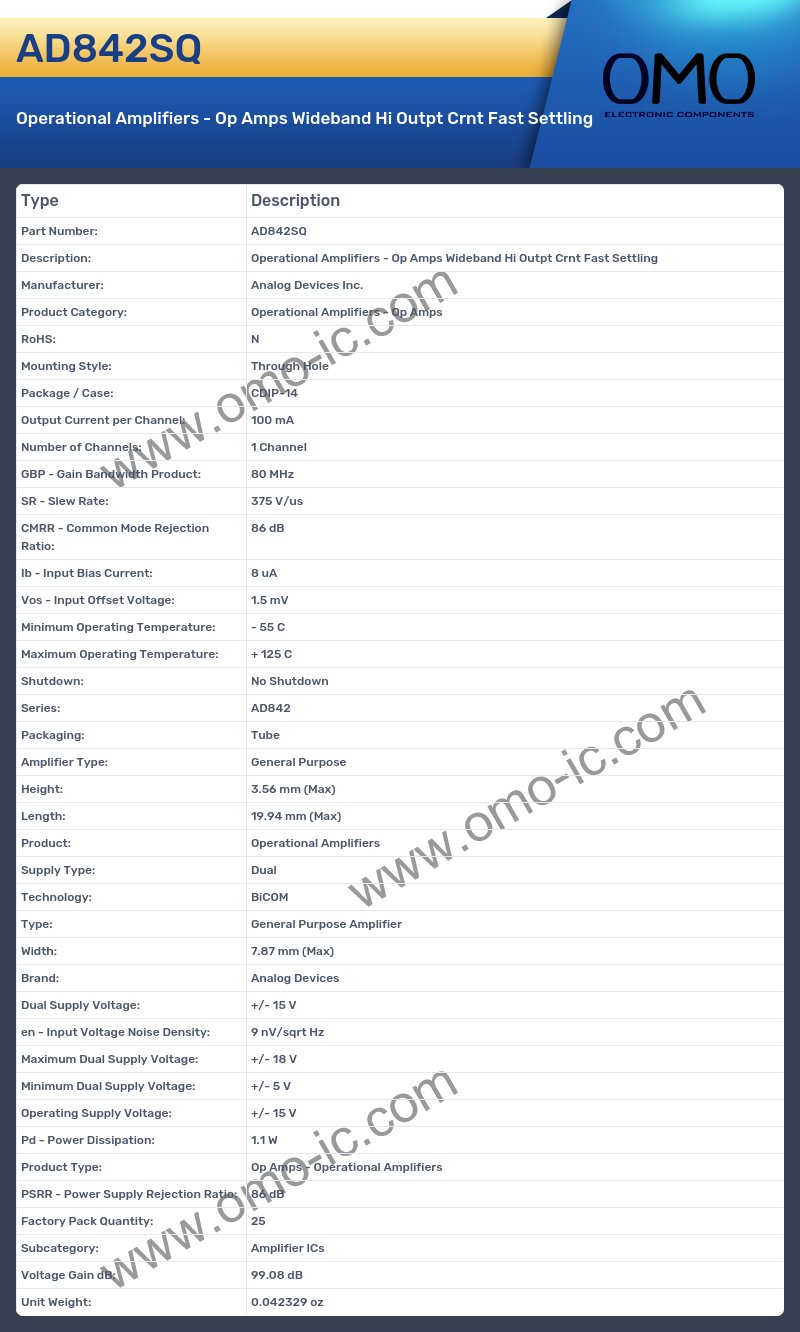

AD842SQ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Operational Amplifiers - Op Amps
• RoHS: N
• Mounting Style: Through Hole
• Package / Case: CDIP-14
• Output Current per Channel: 100 mA
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: 80 MHz
• SR - Slew Rate: 375 V/us
• CMRR - Common Mode Rejection Ratio: 86 dB
• Ib - Input Bias Current: 8 uA
• Vos - Input Offset Voltage: 1.5 mV
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Shutdown: No Shutdown
• Series: AD842
• Packaging: Tube
• Amplifier Type: General Purpose
• Height: 3.56 mm (Max)
• Length: 19.94 mm (Max)
• Product: Operational Amplifiers
• Supply Type: Dual
• Technology: BiCOM
• Type: General Purpose Amplifier
• Width: 7.87 mm (Max)
• Brand: Analog Devices
• Dual Supply Voltage: +/- 15 V
• en - Input Voltage Noise Density: 9 nV/sqrt Hz
• Maximum Dual Supply Voltage: +/- 18 V
• Minimum Dual Supply Voltage: +/- 5 V
• Operating Supply Voltage: +/- 15 V
• Pd - Power Dissipation: 1.1 W
• Product Type: Op Amps - Operational Amplifiers
• PSRR - Power Supply Rejection Ratio: 86 dB
• Factory Pack Quantity: 25
• Subcategory: Amplifier ICs
• Voltage Gain dB: 99.08 dB
• Unit Weight: 0.042329 oz
