AD9203WARUZ Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. TSSOP-28 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 40 MS/s. Differential/Single-Ended input type Pipeline architecture External, Internal is the reference type. This product requires an 3 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The AEC-Q100 Qualification Tube packaging for easy dispensing The output type is Digital. This device belongs to the ADC type. Analog Devices is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. The 0.25 LSB, ensuring accurate and precise analog-to-digital conversion. 0.7 % FSR is 0.2%. INL is within 0.65 LSB 3.3 V operating supply voltage range 1.2 W ADCs - Analog to Digital Converters product type 50 of 100 Data Converter ICs as subcategory THD is as low as - 74 dB. 1. 0.014215 oz of Unit Weight

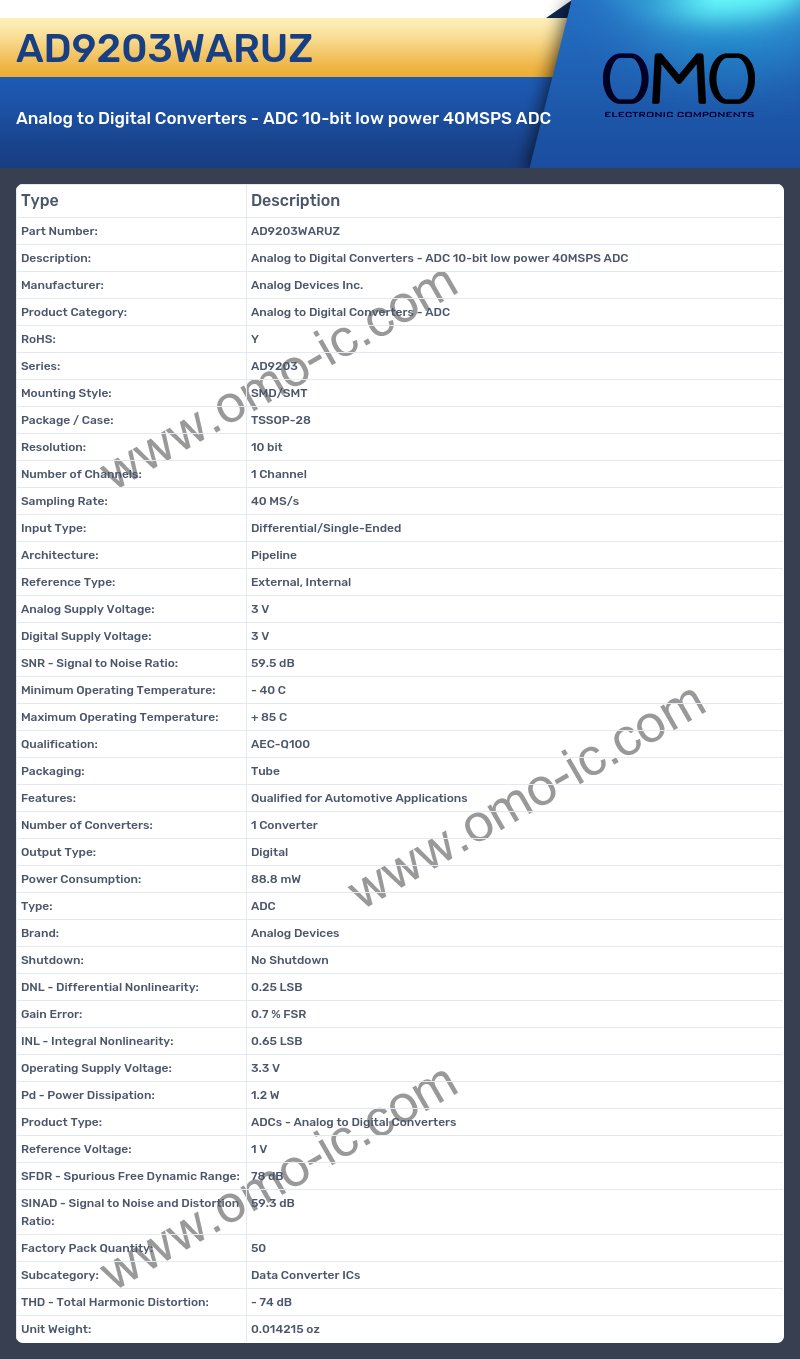

AD9203WARUZ Image

AD9203WARUZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD9203
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-28
• Resolution: 10 bit
• Number of Channels: 1 Channel
• Sampling Rate: 40 MS/s
• Input Type: Differential/Single-Ended
• Architecture: Pipeline
• Reference Type: External, Internal
• Analog Supply Voltage: 3 V
• Digital Supply Voltage: 3 V
• SNR - Signal to Noise Ratio: 59.5 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Qualification: AEC-Q100
• Packaging: Tube
• Features: Qualified for Automotive Applications
• Number of Converters: 1 Converter
• Output Type: Digital
• Power Consumption: 88.8 mW
• Type: ADC
• Brand: Analog Devices
• Shutdown: No Shutdown
• DNL - Differential Nonlinearity: 0.25 LSB
• Gain Error: 0.7 % FSR
• INL - Integral Nonlinearity: 0.65 LSB
• Operating Supply Voltage: 3.3 V
• Pd - Power Dissipation: 1.2 W
• Product Type: ADCs - Analog to Digital Converters
• Reference Voltage: 1 V
• SFDR - Spurious Free Dynamic Range: 78 dB
• SINAD - Signal to Noise and Distortion Ratio: 59.3 dB
• Factory Pack Quantity: 50
• Subcategory: Data Converter ICs
• THD - Total Harmonic Distortion: - 74 dB
• Unit Weight: 0.014215 oz
