AD9266BCPZ-80

AD9266BCPZ-80 Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. SOT-23-8 package/case type is utilized by this product. This product is equipped with 4 Channel for efficient performance. The sampling rate of this product is 1 MS/s. Single-Ended input type Interface Type: I2C SAR architecture External is the reference type. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Reel packaging for easy dispensing The height of the product is 1.15 mm. 5.5 V Input Voltage 2.9 mm long This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics EVAL-AD7991EBZ is a versatile development platform for hardware and software The +/- 0.9 LSB, ensuring accurate and precise analog-to-digital conversion. +/- 2 LSB is 0.2%. INL is within +/- 1 LSB 2.7 V to 5.25 V operating supply voltage range 4.68 mW ADCs - Analog to Digital Converters product type 10000 of 100 Data Converter ICs as subcategory 1. 0.001411 oz of Unit Weight

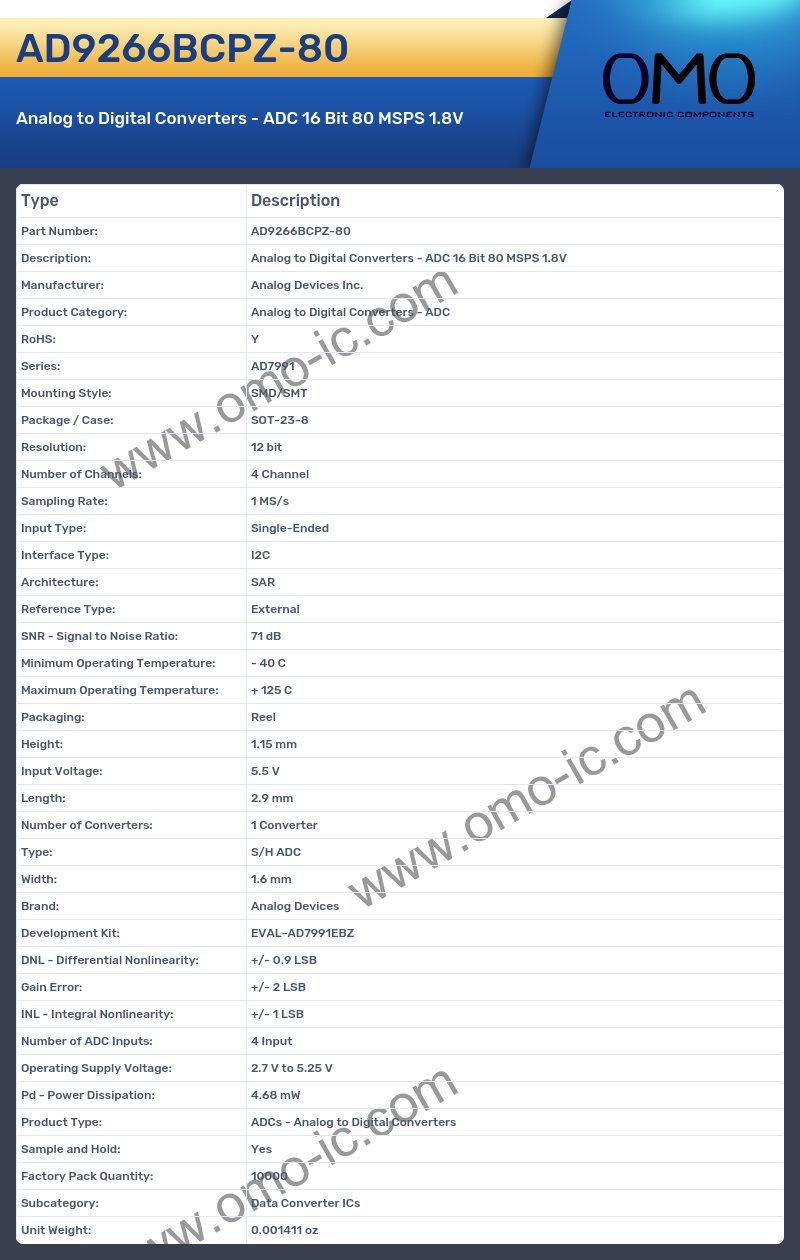

AD9266BCPZ-80 Image

AD9266BCPZ-80 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD7991
• Mounting Style: SMD/SMT
• Package / Case: SOT-23-8
• Resolution: 12 bit
• Number of Channels: 4 Channel
• Sampling Rate: 1 MS/s
• Input Type: Single-Ended
• Interface Type: I2C
• Architecture: SAR
• Reference Type: External
• SNR - Signal to Noise Ratio: 71 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Packaging: Reel
• Height: 1.15 mm
• Input Voltage: 5.5 V
• Length: 2.9 mm
• Number of Converters: 1 Converter
• Type: S/H ADC
• Width: 1.6 mm
• Brand: Analog Devices
• Development Kit: EVAL-AD7991EBZ
• DNL - Differential Nonlinearity: +/- 0.9 LSB
• Gain Error: +/- 2 LSB
• INL - Integral Nonlinearity: +/- 1 LSB
• Number of ADC Inputs: 4 Input
• Operating Supply Voltage: 2.7 V to 5.25 V
• Pd - Power Dissipation: 4.68 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 10000
• Subcategory: Data Converter ICs
• Unit Weight: 0.001411 oz
