AD976ARRL

AD976ARRL Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. SOIC-28 Wide package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 100 kS/s. Single-Ended input type Interface Type: Parallel SAR architecture External, Internal is the reference type. This product requires an 5 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing The height of the product is 2.35 mm. +/- 10 V Input Voltage 18.1 mm long This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics The - 2 LSB to + 3 LSB, ensuring accurate and precise analog-to-digital conversion. 0.5 % FSR is 0.2%. INL is within 3 LSB Yes regarding Moisture Sensitivity 5 V operating supply voltage range 100 mW ADCs - Analog to Digital Converters product type 1000 of 100 Data Converter ICs as subcategory 1. 0.025778 oz of Unit Weight

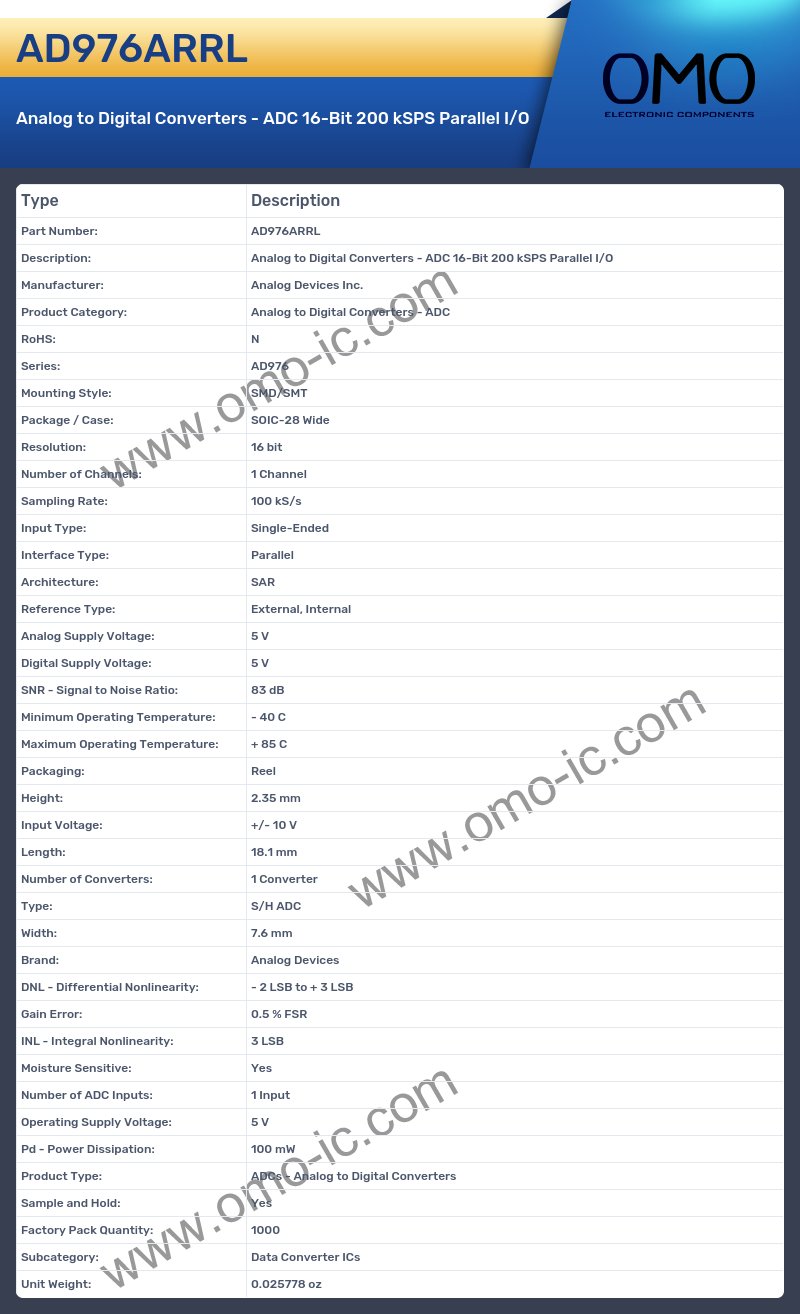

AD976ARRL Image

AD976ARRL Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: N
• Series: AD976
• Mounting Style: SMD/SMT
• Package / Case: SOIC-28 Wide
• Resolution: 16 bit
• Number of Channels: 1 Channel
• Sampling Rate: 100 kS/s
• Input Type: Single-Ended
• Interface Type: Parallel
• Architecture: SAR
• Reference Type: External, Internal
• Analog Supply Voltage: 5 V
• Digital Supply Voltage: 5 V
• SNR - Signal to Noise Ratio: 83 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Reel
• Height: 2.35 mm
• Input Voltage: +/- 10 V
• Length: 18.1 mm
• Number of Converters: 1 Converter
• Type: S/H ADC
• Width: 7.6 mm
• Brand: Analog Devices
• DNL - Differential Nonlinearity: - 2 LSB to + 3 LSB
• Gain Error: 0.5 % FSR
• INL - Integral Nonlinearity: 3 LSB
• Moisture Sensitive: Yes
• Number of ADC Inputs: 1 Input
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 100 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 1000
• Subcategory: Data Converter ICs
• Unit Weight: 0.025778 oz
