ADC08060CIMTX/NOPB

ADC08060CIMTX/NOPB Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. TSSOP-24 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 60 MS/s. Single-Ended input type Interface Type: Parallel Pipeline architecture External is the reference type. This product requires an 3 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing The height of the product is 0.9 mm. 1.6 V Input Voltage 7.8 mm long The output type is CMOS, TTL. This device belongs to the S/H ADC type. Texas Instruments is a trusted brand for quality electronics The +/- 0.4 LSB, ensuring accurate and precise analog-to-digital conversion. 28 mV is 0.2%. INL is within 1.3 LSB 3 V operating supply voltage range ADCs - Analog to Digital Converters product type 2500 of 100 Data Converter ICs as subcategory THD is as low as - 64 dB. 1. 0.007478 oz of Unit Weight

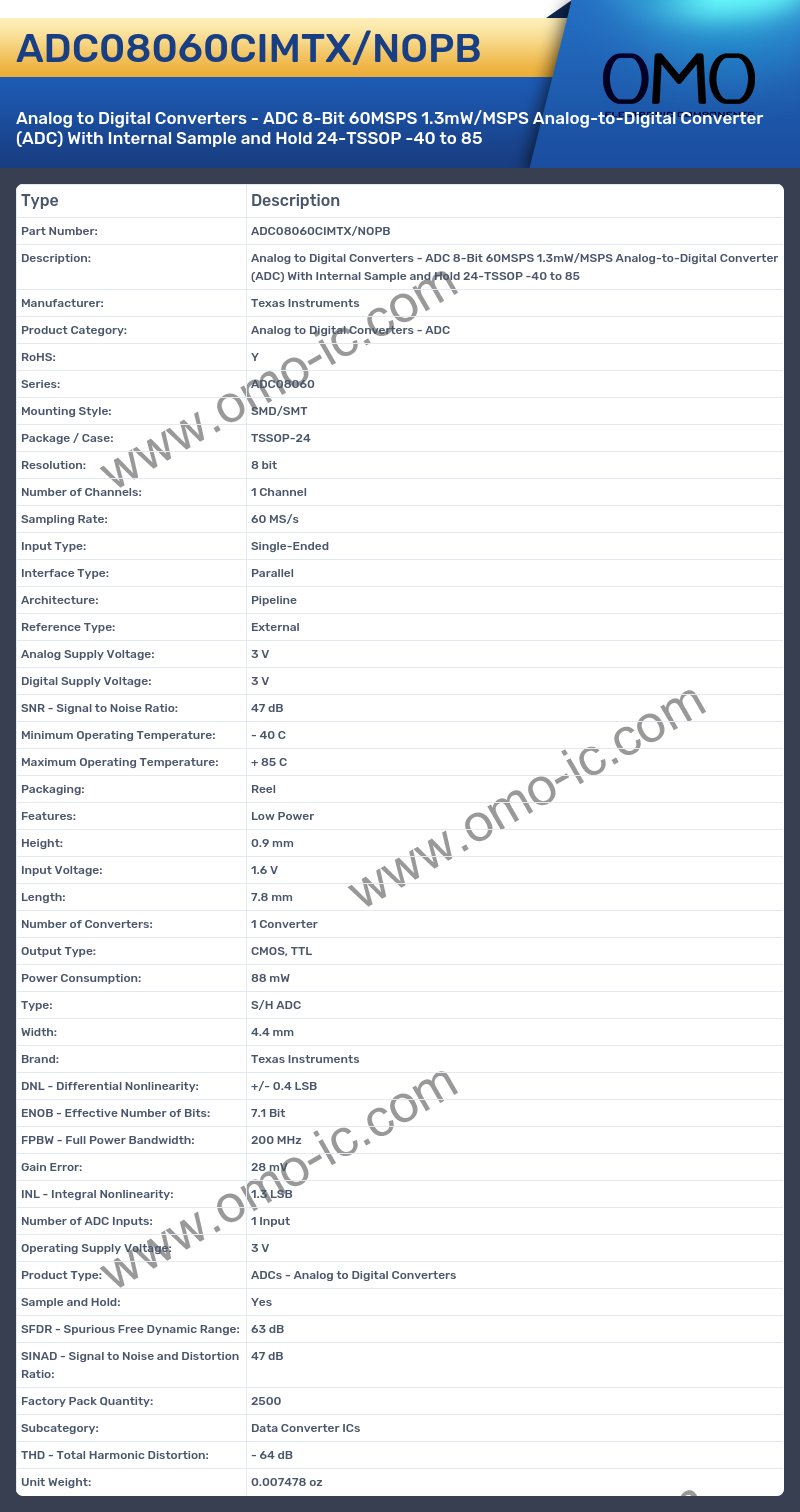

ADC08060CIMTX/NOPB Image

ADC08060CIMTX/NOPB Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: ADC08060
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-24
• Resolution: 8 bit
• Number of Channels: 1 Channel
• Sampling Rate: 60 MS/s
• Input Type: Single-Ended
• Interface Type: Parallel
• Architecture: Pipeline
• Reference Type: External
• Analog Supply Voltage: 3 V
• Digital Supply Voltage: 3 V
• SNR - Signal to Noise Ratio: 47 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Reel
• Features: Low Power
• Height: 0.9 mm
• Input Voltage: 1.6 V
• Length: 7.8 mm
• Number of Converters: 1 Converter
• Output Type: CMOS, TTL
• Power Consumption: 88 mW
• Type: S/H ADC
• Width: 4.4 mm
• Brand: Texas Instruments
• DNL - Differential Nonlinearity: +/- 0.4 LSB
• ENOB - Effective Number of Bits: 7.1 Bit
• FPBW - Full Power Bandwidth: 200 MHz
• Gain Error: 28 mV
• INL - Integral Nonlinearity: 1.3 LSB
• Number of ADC Inputs: 1 Input
• Operating Supply Voltage: 3 V
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• SFDR - Spurious Free Dynamic Range: 63 dB
• SINAD - Signal to Noise and Distortion Ratio: 47 dB
• Factory Pack Quantity: 2500
• Subcategory: Data Converter ICs
• THD - Total Harmonic Distortion: - 64 dB
• Unit Weight: 0.007478 oz
