ADC12138CIWMX/NOPB

ADC12138CIWMX/NOPB Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. SOIC-28 package/case type is utilized by this product. This product is equipped with 4 Channel/8 Channel for efficient performance. The sampling rate of this product is 114 kS/s. Differential/Pseudo-Differential/Single-Ended input type Interface Type: SPI SAR architecture External is the reference type. This product requires an 3 V to 5.5 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing The height of the product is 2.34 mm. 5 V Input Voltage 17.91 mm long This device belongs to the S/H ADC type. Texas Instruments is a trusted brand for quality electronics The +/- 1.5 LSB, ensuring accurate and precise analog-to-digital conversion. 3 LSB is 0.2%. INL is within +/- 2 LSB Yes regarding Moisture Sensitivity 3.3 V, 5 V operating supply voltage range 500 mW (1/2 W) ADCs - Analog to Digital Converters product type 1000 of 100 Data Converter ICs as subcategory 1. 0.025778 oz of Unit Weight

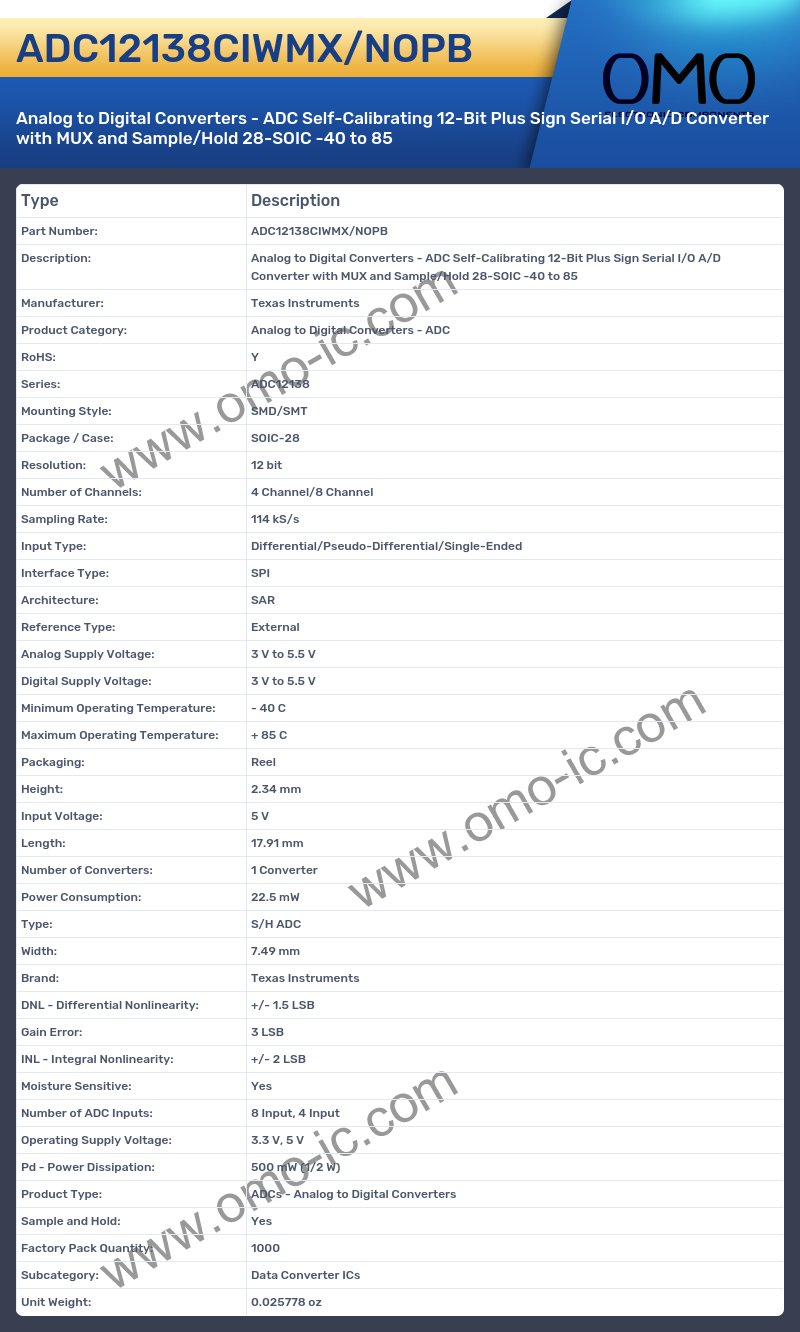

ADC12138CIWMX/NOPB Image

ADC12138CIWMX/NOPB Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: ADC12138
• Mounting Style: SMD/SMT
• Package / Case: SOIC-28
• Resolution: 12 bit
• Number of Channels: 4 Channel/8 Channel
• Sampling Rate: 114 kS/s
• Input Type: Differential/Pseudo-Differential/Single-Ended
• Interface Type: SPI
• Architecture: SAR
• Reference Type: External
• Analog Supply Voltage: 3 V to 5.5 V
• Digital Supply Voltage: 3 V to 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Reel
• Height: 2.34 mm
• Input Voltage: 5 V
• Length: 17.91 mm
• Number of Converters: 1 Converter
• Power Consumption: 22.5 mW
• Type: S/H ADC
• Width: 7.49 mm
• Brand: Texas Instruments
• DNL - Differential Nonlinearity: +/- 1.5 LSB
• Gain Error: 3 LSB
• INL - Integral Nonlinearity: +/- 2 LSB
• Moisture Sensitive: Yes
• Number of ADC Inputs: 8 Input, 4 Input
• Operating Supply Voltage: 3.3 V, 5 V
• Pd - Power Dissipation: 500 mW (1/2 W)
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 1000
• Subcategory: Data Converter ICs
• Unit Weight: 0.025778 oz
