ADG1436YCPZ-REEL

ADG1436YCPZ-REEL Overview

This product is manufactured by Analog Devices Inc.. Our product has a 2 Switch number of switches. This product has a 2 x SPDT configuration. Maximum switch voltage is 15 V Our product has a maximum 120 ns. Our product has a maximum 130 ns. 12 V operating supply voltage range The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. LFCSP-16 package/case type is utilized by this product. Reel packaging for easy dispensing The height of the product is 0.83 mm. 4 mm long Supply Type: Single Supply, Dual Supply Analog Devices is a trusted brand for quality electronics Maximum supply current: 285 uA 1. The maximum dual supply voltage is +/- 16.5 V. +/- 5 V minimum dual supply voltage Yes regarding Moisture Sensitivity 30 uW Analog Switch ICs product type 5000 of 100 Switch ICs as subcategory Supply Voltage - Max: 16.5 V Supply Voltage - Min: 5 V Maximum continuous current: 400 mA

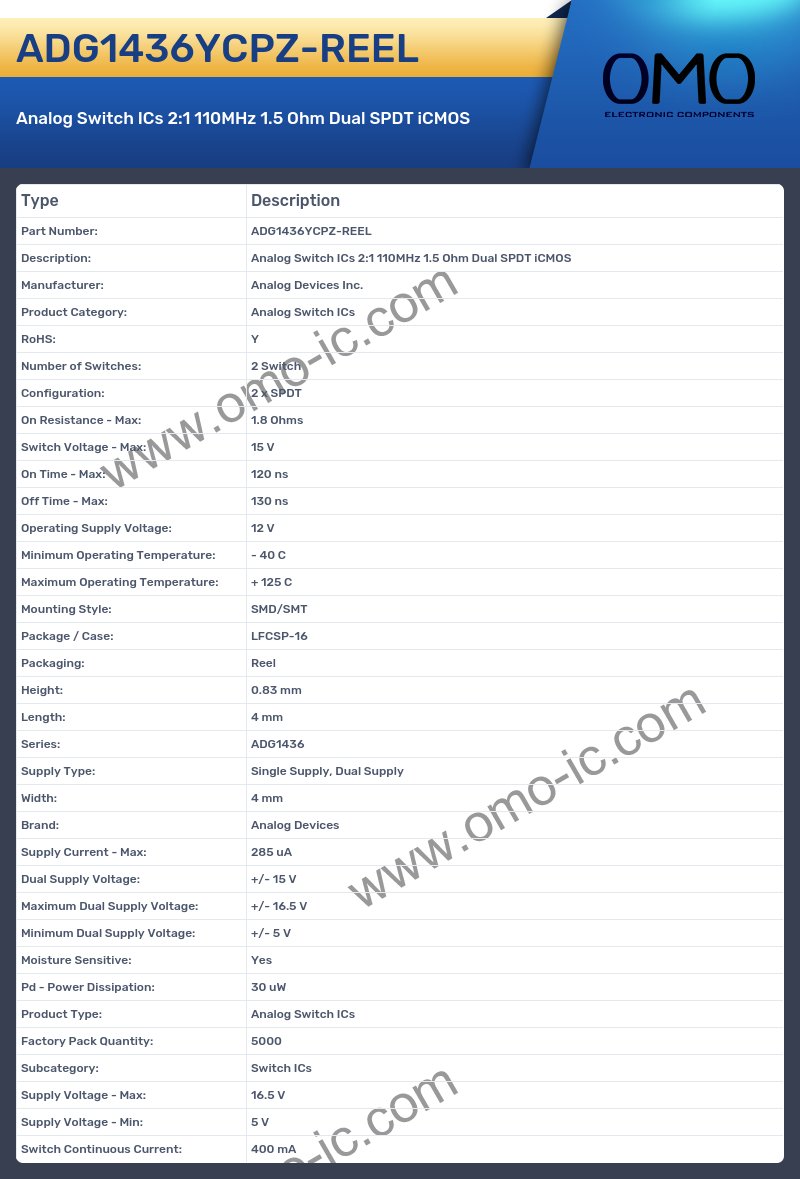

ADG1436YCPZ-REEL Image

ADG1436YCPZ-REEL Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog Switch ICs
• RoHS: Y
• Number of Switches: 2 Switch
• Configuration: 2 x SPDT
• On Resistance - Max: 1.8 Ohms
• Switch Voltage - Max: 15 V
• On Time - Max: 120 ns
• Off Time - Max: 130 ns
• Operating Supply Voltage: 12 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: LFCSP-16
• Packaging: Reel
• Height: 0.83 mm
• Length: 4 mm
• Series: ADG1436
• Supply Type: Single Supply, Dual Supply
• Width: 4 mm
• Brand: Analog Devices
• Supply Current - Max: 285 uA
• Dual Supply Voltage: +/- 15 V
• Maximum Dual Supply Voltage: +/- 16.5 V
• Minimum Dual Supply Voltage: +/- 5 V
• Moisture Sensitive: Yes
• Pd - Power Dissipation: 30 uW
• Product Type: Analog Switch ICs
• Factory Pack Quantity: 5000
• Subcategory: Switch ICs
• Supply Voltage - Max: 16.5 V
• Supply Voltage - Min: 5 V
• Switch Continuous Current: 400 mA
