ADG715BRUZ-REEL

ADG715BRUZ-REEL Overview

This product is manufactured by Analog Devices Inc.. Our product has a 8 Switch number of switches. This product has a 8 x SPST configuration. Maximum switch voltage is 2.5 V Our product has a maximum 140 ns. Our product has a maximum 130 ns. 2.7 V to 5.5 V operating supply voltage range The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. TSSOP-24 package/case type is utilized by this product. Reel packaging for easy dispensing The height of the product is 1.05 mm (Max). 7.8 mm long Supply Type: Single Supply, Dual Supply Analog Devices is a trusted brand for quality electronics Maximum supply current: 20 uA 1. The maximum dual supply voltage is +/- 2.75 V. +/- 2.25 V minimum dual supply voltage 125 uW Analog Switch ICs product type 2500 of 100 Switch ICs as subcategory Supply Voltage - Max: 5.5 V Supply Voltage - Min: 2.75 V Maximum continuous current: 30 mA 1. 0.007478 oz of Unit Weight

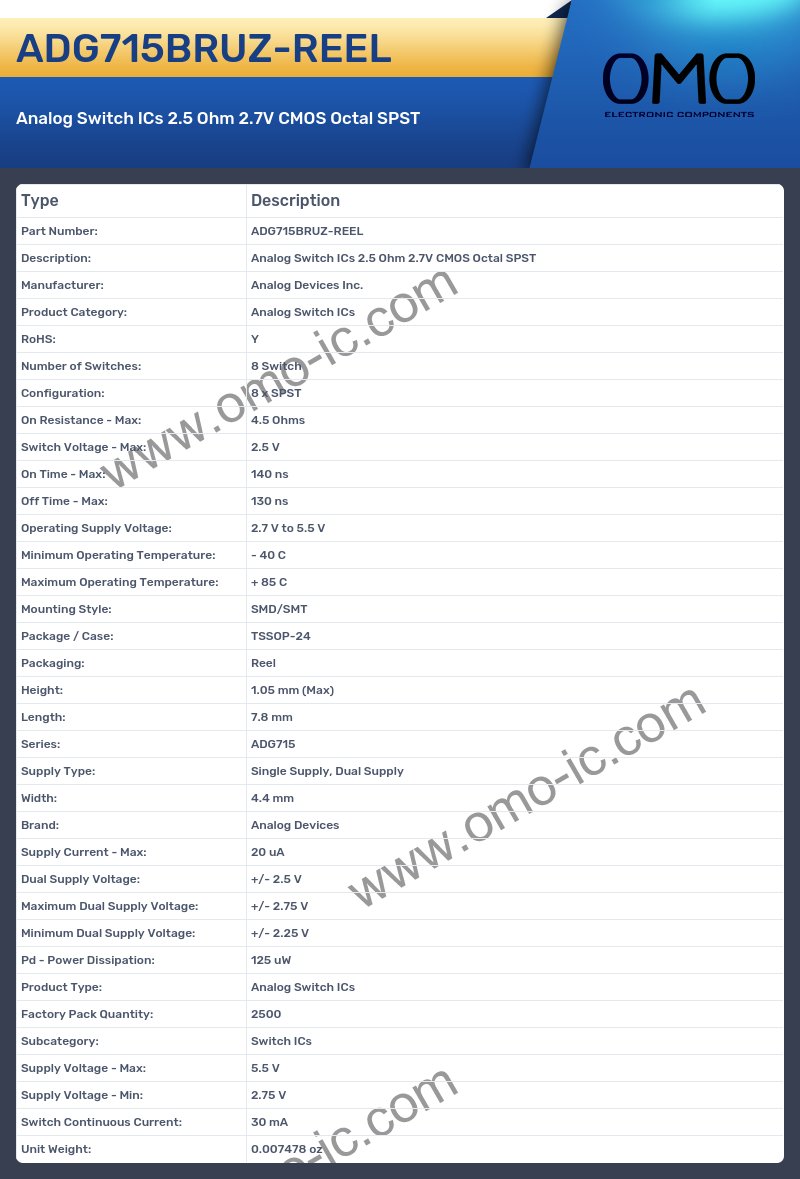

ADG715BRUZ-REEL Image

ADG715BRUZ-REEL Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog Switch ICs
• RoHS: Y
• Number of Switches: 8 Switch
• Configuration: 8 x SPST
• On Resistance - Max: 4.5 Ohms
• Switch Voltage - Max: 2.5 V
• On Time - Max: 140 ns
• Off Time - Max: 130 ns
• Operating Supply Voltage: 2.7 V to 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-24
• Packaging: Reel
• Height: 1.05 mm (Max)
• Length: 7.8 mm
• Series: ADG715
• Supply Type: Single Supply, Dual Supply
• Width: 4.4 mm
• Brand: Analog Devices
• Supply Current - Max: 20 uA
• Dual Supply Voltage: +/- 2.5 V
• Maximum Dual Supply Voltage: +/- 2.75 V
• Minimum Dual Supply Voltage: +/- 2.25 V
• Pd - Power Dissipation: 125 uW
• Product Type: Analog Switch ICs
• Factory Pack Quantity: 2500
• Subcategory: Switch ICs
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 2.75 V
• Switch Continuous Current: 30 mA
• Unit Weight: 0.007478 oz
