ADM8691ANZ

ADM8691ANZ Overview

This product is manufactured by Analog Devices Inc.. This device belongs to the Voltage Supervisory type. The product can operate at a maximum temperature of Through Hole. PDIP-16 package/case type is utilized by this product. 4.65 V threshold voltage range The output type is Active Low, Push-Pull. 70 ms. Supply Voltage - Max: 5.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 3.3 mm. 20.07 mm long Analog Devices is a trusted brand for quality electronics 4.73 V is specified as a product attribute. The 4.5 V is a critical parameter in this product. Chip Enable signal is supported. 600 mW Supervisory Circuits product type 25 of 100 PMIC - Power Management ICs as subcategory Supply Voltage - Min: 4.75 V 1. 0.057419 oz of Unit Weight

ADM8691ANZ Image

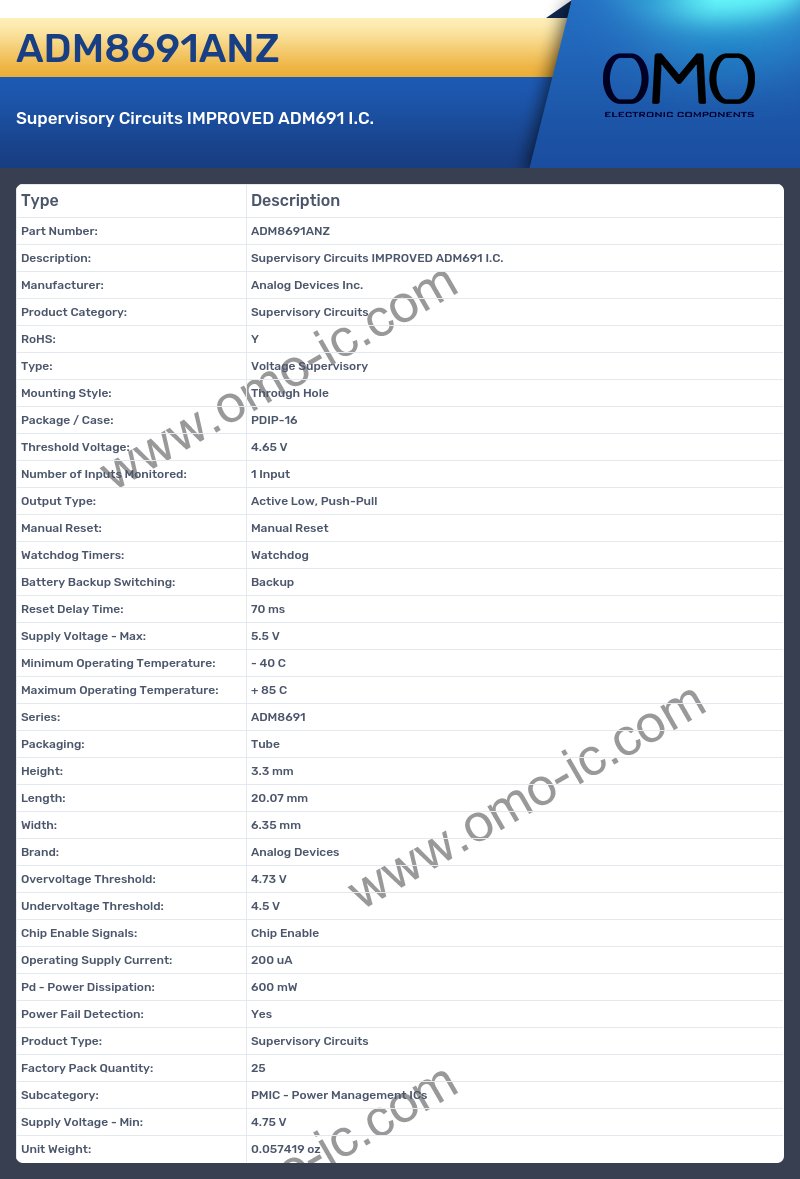

ADM8691ANZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Supervisory Circuits
• RoHS: Y
• Type: Voltage Supervisory
• Mounting Style: Through Hole
• Package / Case: PDIP-16
• Threshold Voltage: 4.65 V
• Number of Inputs Monitored: 1 Input
• Output Type: Active Low, Push-Pull
• Manual Reset: Manual Reset
• Watchdog Timers: Watchdog
• Battery Backup Switching: Backup
• Reset Delay Time: 70 ms
• Supply Voltage - Max: 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Series: ADM8691
• Packaging: Tube
• Height: 3.3 mm
• Length: 20.07 mm
• Width: 6.35 mm
• Brand: Analog Devices
• Overvoltage Threshold: 4.73 V
• Undervoltage Threshold: 4.5 V
• Chip Enable Signals: Chip Enable
• Operating Supply Current: 200 uA
• Pd - Power Dissipation: 600 mW
• Power Fail Detection: Yes
• Product Type: Supervisory Circuits
• Factory Pack Quantity: 25
• Subcategory: PMIC - Power Management ICs
• Supply Voltage - Min: 4.75 V
• Unit Weight: 0.057419 oz
