ADS5270IPFPTG4 Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. HTQFP-80 package/case type is utilized by this product. This product is equipped with 8 Channel for efficient performance. The sampling rate of this product is 40 MS/s. Differential input type Interface Type: Serial Pipeline architecture External, Internal is the reference type. This product requires an 3.3 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing The height of the product is 1 mm. 12 mm long The output type is LVDS. Texas Instruments is a trusted brand for quality electronics ADS5270EVM is a versatile development platform for hardware and software The +/- 0.5 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within +/- 2 LSB Yes regarding Moisture Sensitivity 3 V to 3.6 V operating supply voltage range 948 mW ADCs - Analog to Digital Converters product type 250 of 100 Data Converter ICs as subcategory 1. 0.012984 oz of Unit Weight

ADS5270IPFPTG4 Image

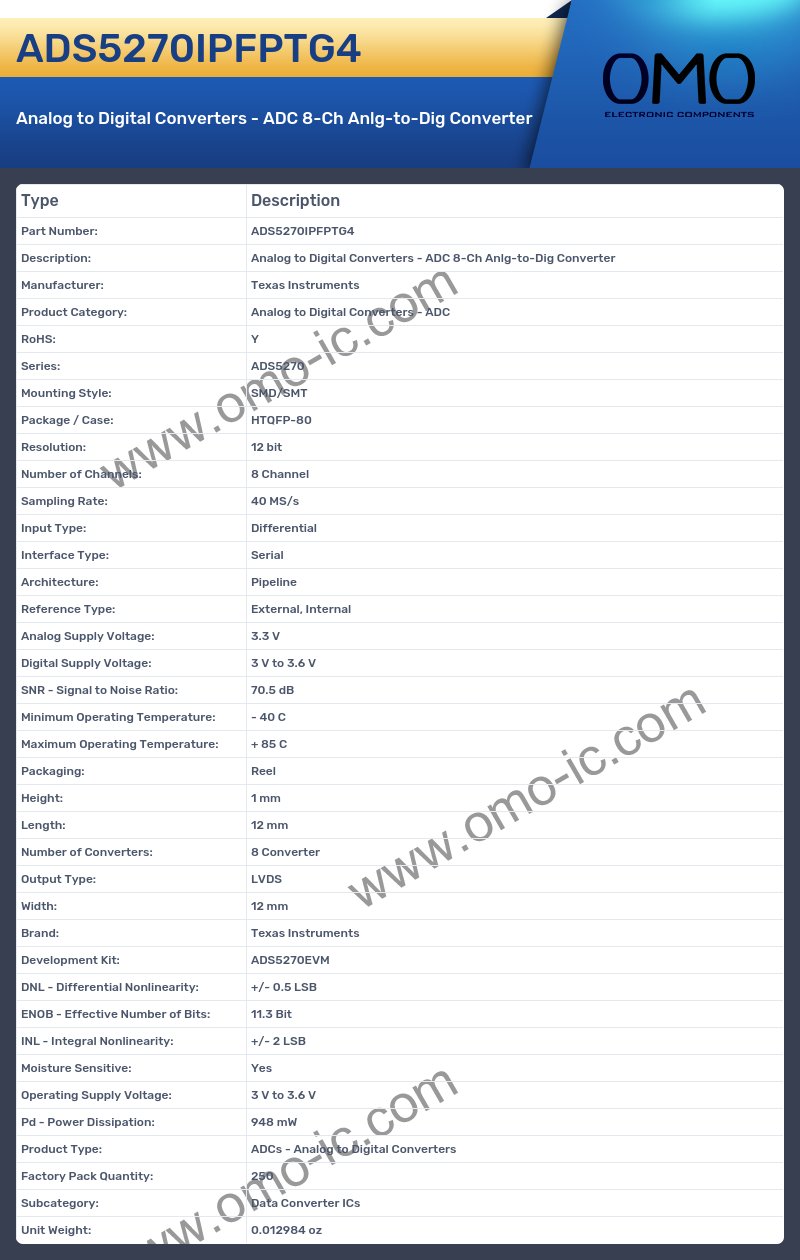

ADS5270IPFPTG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: ADS5270
• Mounting Style: SMD/SMT
• Package / Case: HTQFP-80
• Resolution: 12 bit
• Number of Channels: 8 Channel
• Sampling Rate: 40 MS/s
• Input Type: Differential
• Interface Type: Serial
• Architecture: Pipeline
• Reference Type: External, Internal
• Analog Supply Voltage: 3.3 V
• Digital Supply Voltage: 3 V to 3.6 V
• SNR - Signal to Noise Ratio: 70.5 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Reel
• Height: 1 mm
• Length: 12 mm
• Number of Converters: 8 Converter
• Output Type: LVDS
• Width: 12 mm
• Brand: Texas Instruments
• Development Kit: ADS5270EVM
• DNL - Differential Nonlinearity: +/- 0.5 LSB
• ENOB - Effective Number of Bits: 11.3 Bit
• INL - Integral Nonlinearity: +/- 2 LSB
• Moisture Sensitive: Yes
• Operating Supply Voltage: 3 V to 3.6 V
• Pd - Power Dissipation: 948 mW
• Product Type: ADCs - Analog to Digital Converters
• Factory Pack Quantity: 250
• Subcategory: Data Converter ICs
• Unit Weight: 0.012984 oz
