ADS5421Y/TG4 Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. LQFP-64 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 40 MS/s. Differential input type Interface Type: Parallel Pipeline architecture External, Internal is the reference type. This product requires an 4.75 V to 5.25 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing The height of the product is 1.4 mm. 10 mm long Texas Instruments is a trusted brand for quality electronics ADS5421EVM is a versatile development platform for hardware and software The +/- 1 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within +/- 2.5 LSB 5 V operating supply voltage range 925 mW ADCs - Analog to Digital Converters product type 250 of 100 Data Converter ICs as subcategory 1. 0.012088 oz of Unit Weight

ADS5421Y/TG4 Image

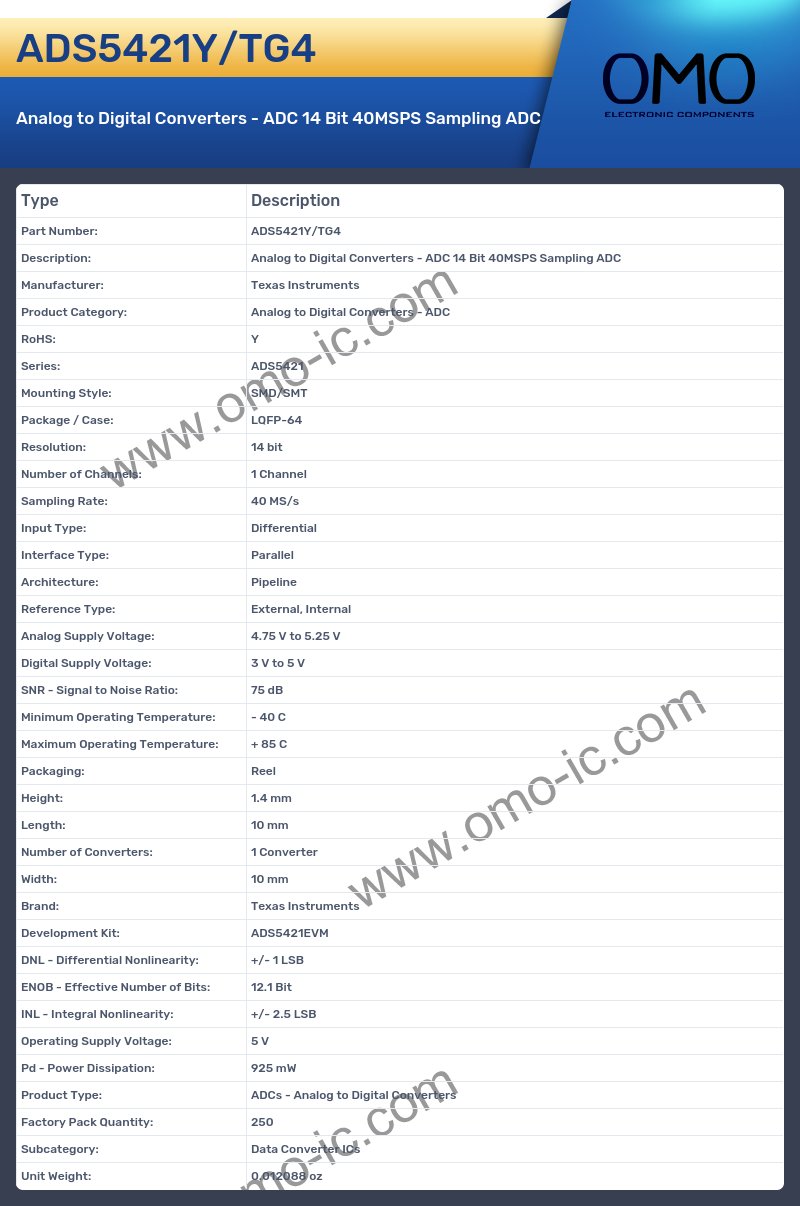

ADS5421Y/TG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: ADS5421
• Mounting Style: SMD/SMT
• Package / Case: LQFP-64
• Resolution: 14 bit
• Number of Channels: 1 Channel
• Sampling Rate: 40 MS/s
• Input Type: Differential
• Interface Type: Parallel
• Architecture: Pipeline
• Reference Type: External, Internal
• Analog Supply Voltage: 4.75 V to 5.25 V
• Digital Supply Voltage: 3 V to 5 V
• SNR - Signal to Noise Ratio: 75 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Reel
• Height: 1.4 mm
• Length: 10 mm
• Number of Converters: 1 Converter
• Width: 10 mm
• Brand: Texas Instruments
• Development Kit: ADS5421EVM
• DNL - Differential Nonlinearity: +/- 1 LSB
• ENOB - Effective Number of Bits: 12.1 Bit
• INL - Integral Nonlinearity: +/- 2.5 LSB
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 925 mW
• Product Type: ADCs - Analog to Digital Converters
• Factory Pack Quantity: 250
• Subcategory: Data Converter ICs
• Unit Weight: 0.012088 oz
