ADS5545IRGZR

ADS5545IRGZR Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. VQFN-48 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 170 MS/s. Differential input type Interface Type: Parallel, Serial Pipeline architecture External, Internal is the reference type. This product requires an 3.3 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing The height of the product is 0.9 mm. 7 mm long The output type is CMOS/LVDS. Analog to Digital Converters This device belongs to the With DDR type. Texas Instruments is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. ADS5545EVM is a versatile development platform for hardware and software The 0.5 LSB, ensuring accurate and precise analog-to-digital conversion. 1 %/FSR is 0.2%. INL is within 3 LSB 3 V to 3.6 V operating supply voltage range 1.1 W ADCs - Analog to Digital Converters product type 2500 of 100 Data Converter ICs as subcategory THD is as low as 68 dBc. 1. 0.004868 oz of Unit Weight

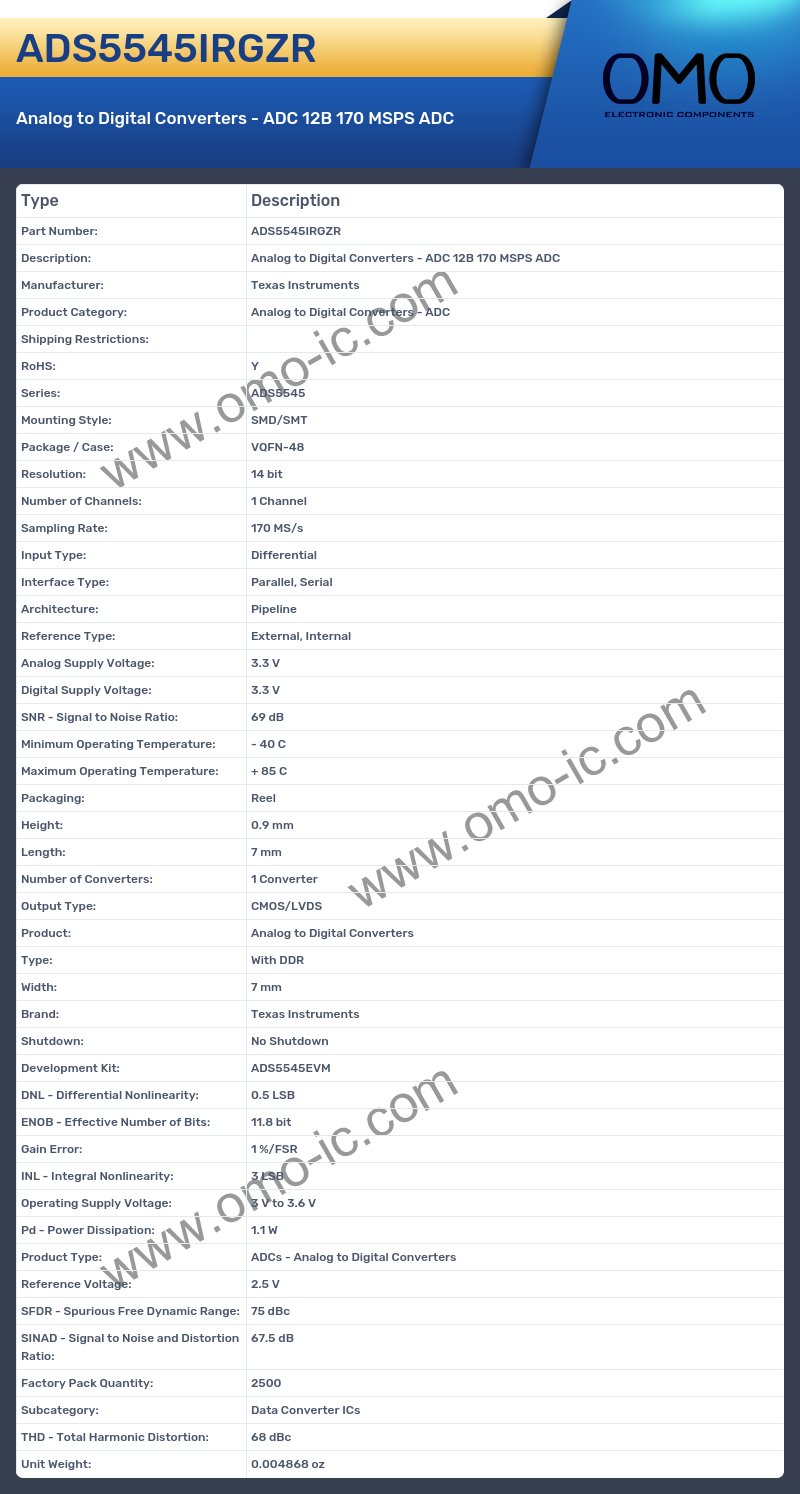

ADS5545IRGZR Image

ADS5545IRGZR Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• Shipping Restrictions:
• RoHS: Y
• Series: ADS5545
• Mounting Style: SMD/SMT
• Package / Case: VQFN-48
• Resolution: 14 bit
• Number of Channels: 1 Channel
• Sampling Rate: 170 MS/s
• Input Type: Differential
• Interface Type: Parallel, Serial
• Architecture: Pipeline
• Reference Type: External, Internal
• Analog Supply Voltage: 3.3 V
• Digital Supply Voltage: 3.3 V
• SNR - Signal to Noise Ratio: 69 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Reel
• Height: 0.9 mm
• Length: 7 mm
• Number of Converters: 1 Converter
• Output Type: CMOS/LVDS
• Product: Analog to Digital Converters
• Type: With DDR
• Width: 7 mm
• Brand: Texas Instruments
• Shutdown: No Shutdown
• Development Kit: ADS5545EVM
• DNL - Differential Nonlinearity: 0.5 LSB
• ENOB - Effective Number of Bits: 11.8 bit
• Gain Error: 1 %/FSR
• INL - Integral Nonlinearity: 3 LSB
• Operating Supply Voltage: 3 V to 3.6 V
• Pd - Power Dissipation: 1.1 W
• Product Type: ADCs - Analog to Digital Converters
• Reference Voltage: 2.5 V
• SFDR - Spurious Free Dynamic Range: 75 dBc
• SINAD - Signal to Noise and Distortion Ratio: 67.5 dB
• Factory Pack Quantity: 2500
• Subcategory: Data Converter ICs
• THD - Total Harmonic Distortion: 68 dBc
• Unit Weight: 0.004868 oz
