ADS8684AIDBT

ADS8684AIDBT Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. TSSOP-38 package/case type is utilized by this product. This product is equipped with 4 Channel for efficient performance. The sampling rate of this product is 500 kS/s. Single-Ended input type Interface Type: SPI SAR architecture Internal is the reference type. This product requires an 4.75 V to 5.25 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing The output type is CMOS. This device belongs to the Precision ADC type. Texas Instruments is a trusted brand for quality electronics This product does not have a Shutdown feature, ensuring continuous operation. The 1.5 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within 2 LSB Yes regarding Moisture Sensitivity ADCs - Analog to Digital Converters product type 50 of 100 Data Converter ICs as subcategory THD is as low as - 102 dB. 1. 0.007189 oz of Unit Weight

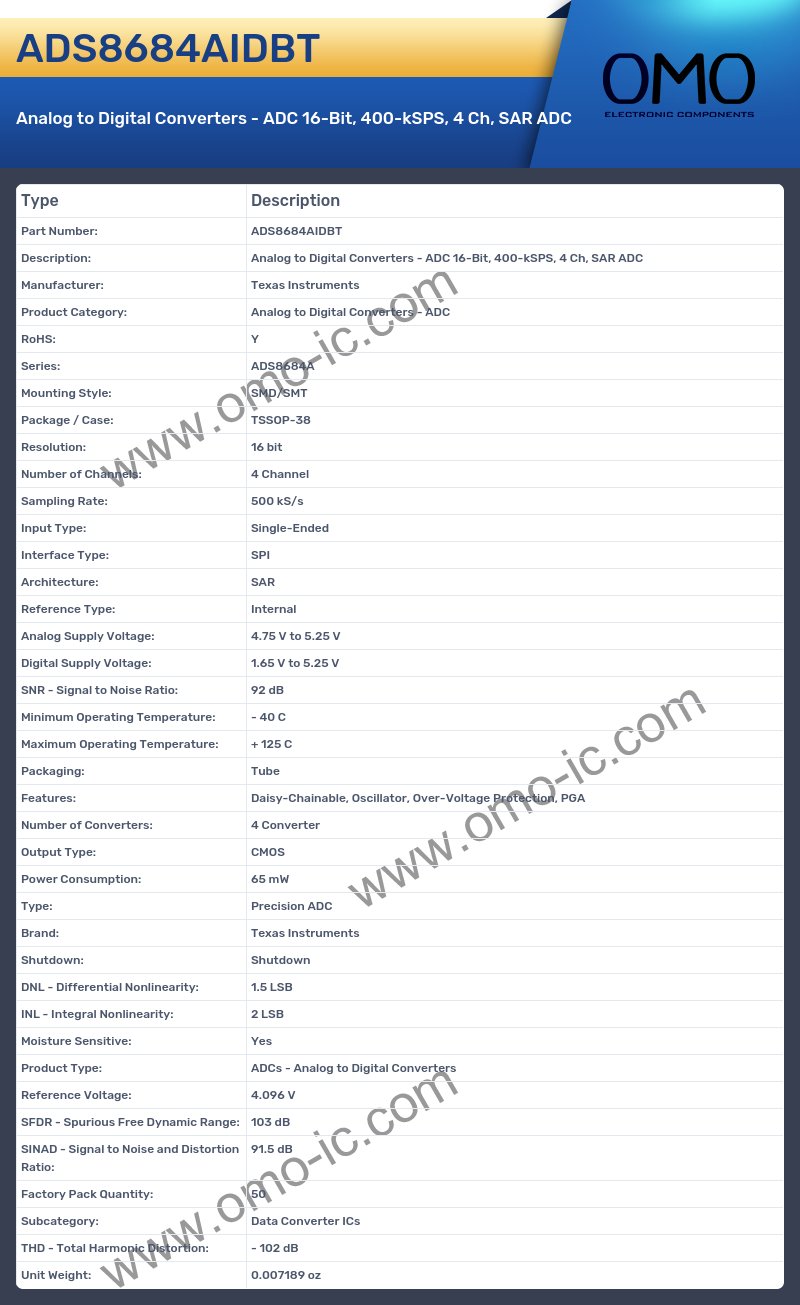

ADS8684AIDBT Image

ADS8684AIDBT Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: ADS8684A
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-38
• Resolution: 16 bit
• Number of Channels: 4 Channel
• Sampling Rate: 500 kS/s
• Input Type: Single-Ended
• Interface Type: SPI
• Architecture: SAR
• Reference Type: Internal
• Analog Supply Voltage: 4.75 V to 5.25 V
• Digital Supply Voltage: 1.65 V to 5.25 V
• SNR - Signal to Noise Ratio: 92 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Packaging: Tube
• Features: Daisy-Chainable, Oscillator, Over-Voltage Protection, PGA
• Number of Converters: 4 Converter
• Output Type: CMOS
• Power Consumption: 65 mW
• Type: Precision ADC
• Brand: Texas Instruments
• Shutdown: Shutdown
• DNL - Differential Nonlinearity: 1.5 LSB
• INL - Integral Nonlinearity: 2 LSB
• Moisture Sensitive: Yes
• Product Type: ADCs - Analog to Digital Converters
• Reference Voltage: 4.096 V
• SFDR - Spurious Free Dynamic Range: 103 dB
• SINAD - Signal to Noise and Distortion Ratio: 91.5 dB
• Factory Pack Quantity: 50
• Subcategory: Data Converter ICs
• THD - Total Harmonic Distortion: - 102 dB
• Unit Weight: 0.007189 oz
