ADUM7703BRWZ-RL

ADUM7703BRWZ-RL Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. SOIC-16 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 78.1 kS/s. Pseudo-Differential input type Sigma-Delta architecture This product requires an 4.5 V to 20 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Reel packaging for easy dispensing Analog to Digital Converters This device belongs to the Second Order Isolated ADC type. Analog Devices is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. EV-ADuM7703-8FMCZ is a versatile development platform for hardware and software The +/- 0.99 LSB, ensuring accurate and precise analog-to-digital conversion. 0.2 % FSR is 0.2%. INL is within +/- 2 LSB 133 mW ADCs - Analog to Digital Converters product type 1000 of 100 Data Converter ICs as subcategory THD is as low as - 99 dB.

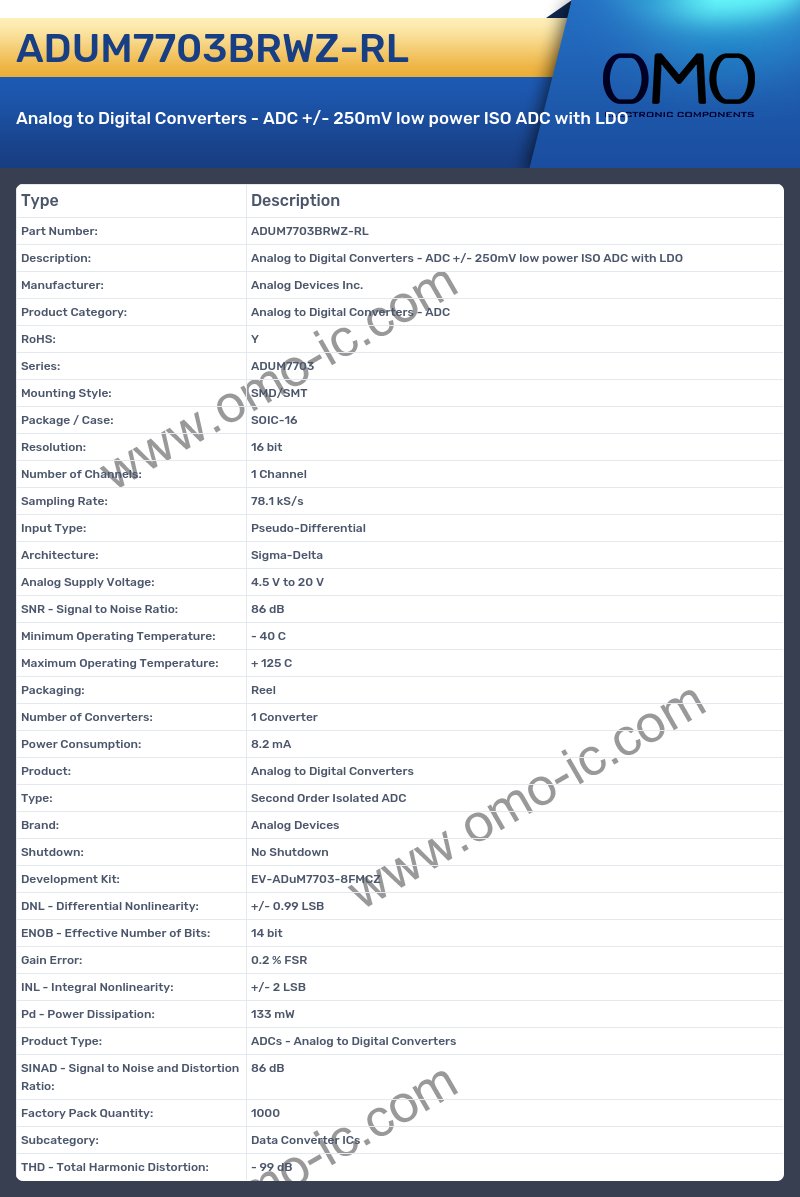

ADUM7703BRWZ-RL Image

ADUM7703BRWZ-RL Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: ADUM7703
• Mounting Style: SMD/SMT
• Package / Case: SOIC-16
• Resolution: 16 bit
• Number of Channels: 1 Channel
• Sampling Rate: 78.1 kS/s
• Input Type: Pseudo-Differential
• Architecture: Sigma-Delta
• Analog Supply Voltage: 4.5 V to 20 V
• SNR - Signal to Noise Ratio: 86 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Packaging: Reel
• Number of Converters: 1 Converter
• Power Consumption: 8.2 mA
• Product: Analog to Digital Converters
• Type: Second Order Isolated ADC
• Brand: Analog Devices
• Shutdown: No Shutdown
• Development Kit: EV-ADuM7703-8FMCZ
• DNL - Differential Nonlinearity: +/- 0.99 LSB
• ENOB - Effective Number of Bits: 14 bit
• Gain Error: 0.2 % FSR
• INL - Integral Nonlinearity: +/- 2 LSB
• Pd - Power Dissipation: 133 mW
• Product Type: ADCs - Analog to Digital Converters
• SINAD - Signal to Noise and Distortion Ratio: 86 dB
• Factory Pack Quantity: 1000
• Subcategory: Data Converter ICs
• THD - Total Harmonic Distortion: - 99 dB
