CD4556BE

CD4556BE Overview

This product is manufactured by Texas Instruments. Decoders / Demultiplexers The product uses the CD4000 logic family. The propagation delay time is 190 ns. Supply Voltage - Min: 3 V Supply Voltage - Max: 18 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of Through Hole. PDIP-16 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Dual Binary 1-of-4 The height of the product is 4.57 mm. - 0.5 V to + 0.5 V Input Voltage 19.3 mm long This product has Dual circuit. Output current: 5 mA Output Voltage is 3 V to 18 V Texas Instruments is a trusted brand for quality electronics Decoders/Demultiplexers. Maximum supply current: 0.1 mA This product has a - 1.5 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 1.5 mA The Maximum Clock Frequency of this product is 8 MHz. 3 V to 18 V operating supply voltage range 500 mW (1/2 W) Encoders, Decoders, Multiplexers & Demultiplexers product type 25 of 100 Logic ICs as subcategory 1. 0.033570 oz of Unit Weight

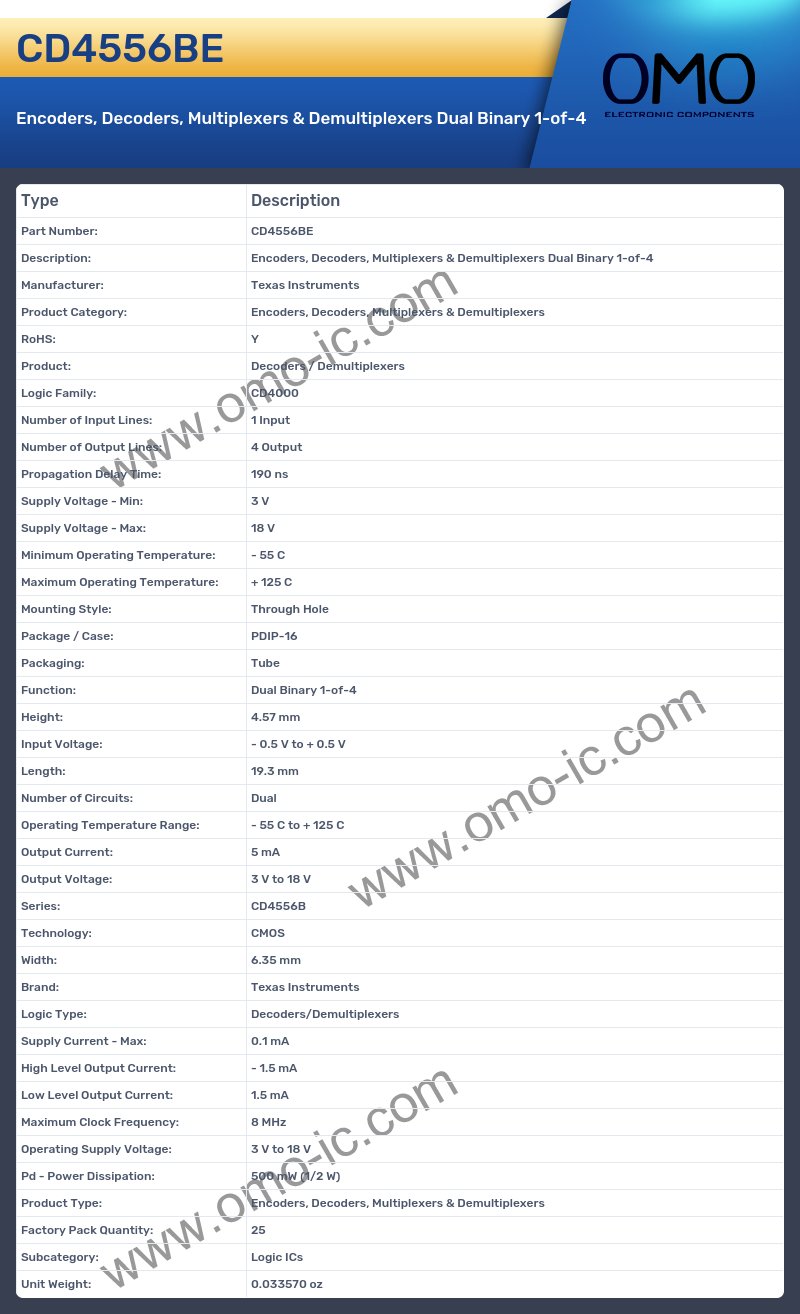

CD4556BE Image

CD4556BE Specifications

• Manufacturer: Texas Instruments
• Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
• RoHS: Y
• Product: Decoders / Demultiplexers
• Logic Family: CD4000
• Number of Input Lines: 1 Input
• Number of Output Lines: 4 Output
• Propagation Delay Time: 190 ns
• Supply Voltage - Min: 3 V
• Supply Voltage - Max: 18 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: Through Hole
• Package / Case: PDIP-16
• Packaging: Tube
• Function: Dual Binary 1-of-4
• Height: 4.57 mm
• Input Voltage: - 0.5 V to + 0.5 V
• Length: 19.3 mm
• Number of Circuits: Dual
• Operating Temperature Range: - 55 C to + 125 C
• Output Current: 5 mA
• Output Voltage: 3 V to 18 V
• Series: CD4556B
• Technology: CMOS
• Width: 6.35 mm
• Brand: Texas Instruments
• Logic Type: Decoders/Demultiplexers
• Supply Current - Max: 0.1 mA
• High Level Output Current: - 1.5 mA
• Low Level Output Current: 1.5 mA
• Maximum Clock Frequency: 8 MHz
• Operating Supply Voltage: 3 V to 18 V
• Pd - Power Dissipation: 500 mW (1/2 W)
• Product Type: Encoders, Decoders, Multiplexers & Demultiplexers
• Factory Pack Quantity: 25
• Subcategory: Logic ICs
• Unit Weight: 0.033570 oz
