CD74ACT646EN Overview

This product is manufactured by Texas Instruments. The product uses the ACT logic family. The product's TTL input level ensures compatibility with a wide range of devices. CMOS Output Level for flexible output configuration The output type is 3-State. This product has a - 24 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 24 mA The propagation delay time is 5.3 ns at 5 V. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. PDIP-24 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Bus Transceiver / Register The height of the product is 4.57 mm. 31.64 mm long This product has 1 circuit. Registered Transceiver Texas Instruments is a trusted brand for quality electronics The product can operate at a maximum temperature of Through Hole. This product is equipped with 8 for efficient performance. 4.5 V to 5.5 V operating supply voltage range 500 mW (1/2 W) Polarity type: Non-Inverting Bus Transceivers product type 15 of 100 Logic ICs as subcategory This product's Positive Edge. 1. 0.061853 oz of Unit Weight

CD74ACT646EN Image

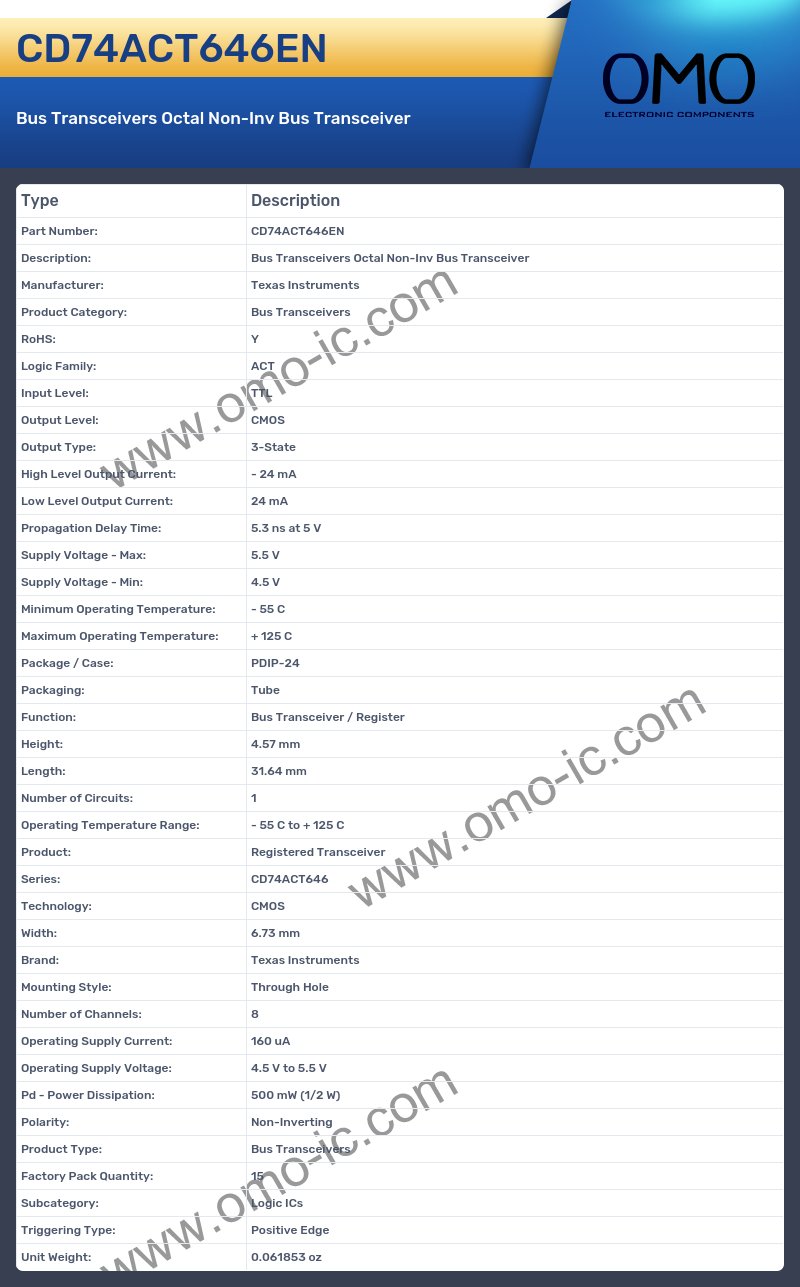

CD74ACT646EN Specifications

• Manufacturer: Texas Instruments
• Product Category: Bus Transceivers
• RoHS: Y
• Logic Family: ACT
• Input Level: TTL
• Output Level: CMOS
• Output Type: 3-State
• High Level Output Current: - 24 mA
• Low Level Output Current: 24 mA
• Propagation Delay Time: 5.3 ns at 5 V
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 4.5 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Package / Case: PDIP-24
• Packaging: Tube
• Function: Bus Transceiver / Register
• Height: 4.57 mm
• Length: 31.64 mm
• Number of Circuits: 1
• Operating Temperature Range: - 55 C to + 125 C
• Product: Registered Transceiver
• Series: CD74ACT646
• Technology: CMOS
• Width: 6.73 mm
• Brand: Texas Instruments
• Mounting Style: Through Hole
• Number of Channels: 8
• Operating Supply Current: 160 uA
• Operating Supply Voltage: 4.5 V to 5.5 V
• Pd - Power Dissipation: 500 mW (1/2 W)
• Polarity: Non-Inverting
• Product Type: Bus Transceivers
• Factory Pack Quantity: 15
• Subcategory: Logic ICs
• Triggering Type: Positive Edge
• Unit Weight: 0.061853 oz
