CMP04FS

CMP04FS Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. SOIC-14 package/case type is utilized by this product. The comparator type of this product is Precision for versatile use. This product is equipped with 4 Channel for efficient performance. The output type is Open Collector. This product has an 100 nA of 5 uA for precise signal processing. Supply Voltage - Max: 36 V Supply Voltage - Min: 3.3 V 1.3 us response time The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 1.5 mm (Max). 8.75 mm (Max) long Analog Comparators Supply Type: Single, Dual This device belongs to the Low Power Comparator type. Analog Devices is a trusted brand for quality electronics This product does not have a Shutdown feature, ensuring continuous operation. This product has a 100 dB of 50 dB, ensuring reliable signal acquisition. 1. The maximum dual supply voltage is +/- 18 V. +/- 1.65 V minimum dual supply voltage 5 V, 9 V, 12 V, 15 V, 18 V, 24 V, 28 V operating supply voltage range Analog Comparators product type This product has a 100 dB of 50 dB, providing reliable power supply noise rejection. 56 of 100 Amplifier ICs as subcategory 1. 0.011923 oz of Unit Weight

CMP04FS Image

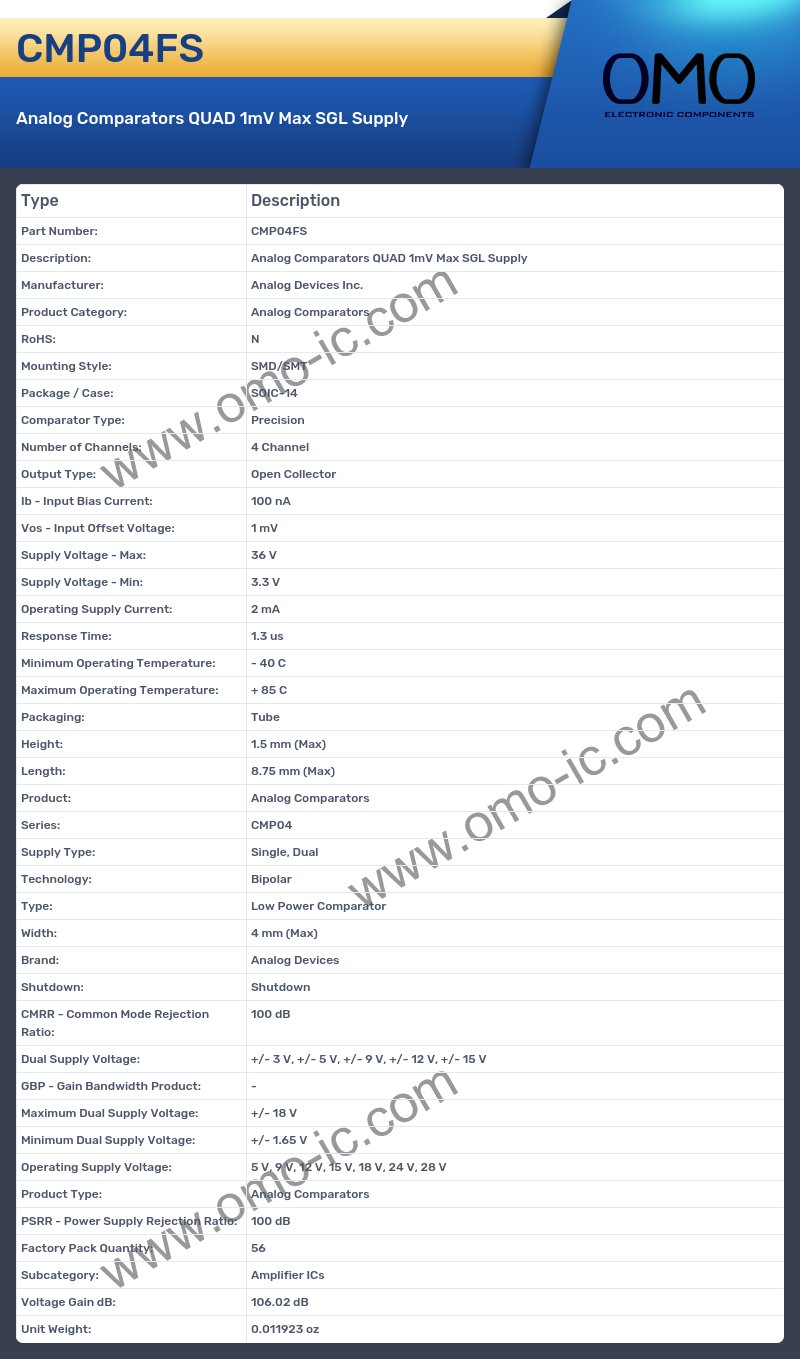

CMP04FS Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog Comparators
• RoHS: N
• Mounting Style: SMD/SMT
• Package / Case: SOIC-14
• Comparator Type: Precision
• Number of Channels: 4 Channel
• Output Type: Open Collector
• Ib - Input Bias Current: 100 nA
• Vos - Input Offset Voltage: 1 mV
• Supply Voltage - Max: 36 V
• Supply Voltage - Min: 3.3 V
• Operating Supply Current: 2 mA
• Response Time: 1.3 us
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Height: 1.5 mm (Max)
• Length: 8.75 mm (Max)
• Product: Analog Comparators
• Series: CMP04
• Supply Type: Single, Dual
• Technology: Bipolar
• Type: Low Power Comparator
• Width: 4 mm (Max)
• Brand: Analog Devices
• Shutdown: Shutdown
• CMRR - Common Mode Rejection Ratio: 100 dB
• Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
• GBP - Gain Bandwidth Product: -
• Maximum Dual Supply Voltage: +/- 18 V
• Minimum Dual Supply Voltage: +/- 1.65 V
• Operating Supply Voltage: 5 V, 9 V, 12 V, 15 V, 18 V, 24 V, 28 V
• Product Type: Analog Comparators
• PSRR - Power Supply Rejection Ratio: 100 dB
• Factory Pack Quantity: 56
• Subcategory: Amplifier ICs
• Voltage Gain dB: 106.02 dB
• Unit Weight: 0.011923 oz
