CSD17304Q3

CSD17304Q3 Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. VSON-CLIP-8 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 30 V 56 A continuous drain current Rds On value of 7.5 mOhms Gate-Source Threshold Voltage Range: 900 mV Gate-Source Voltage: 8 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 2.7 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's NexFET is Blue Gecko. Reel packaging for easy dispensing The height of the product is 1 mm. 3.3 mm long The Transistor Type is 1 N-Channel. This device belongs to the Power MOSFET type. Texas Instruments is a trusted brand for quality electronics Minimum forward transconductance of 48 S TPS65090EVM is a versatile development platform for hardware and software 3.1 ns fall time MOSFET product type Rise Time is 9.1 ns. 2500 of 100 MOSFETs as subcategory Turn-off delay time is 10.4 ns. The typical turn-on delay time is 5.1 ns. 1. 0.001432 oz of Unit Weight

CSD17304Q3 Image

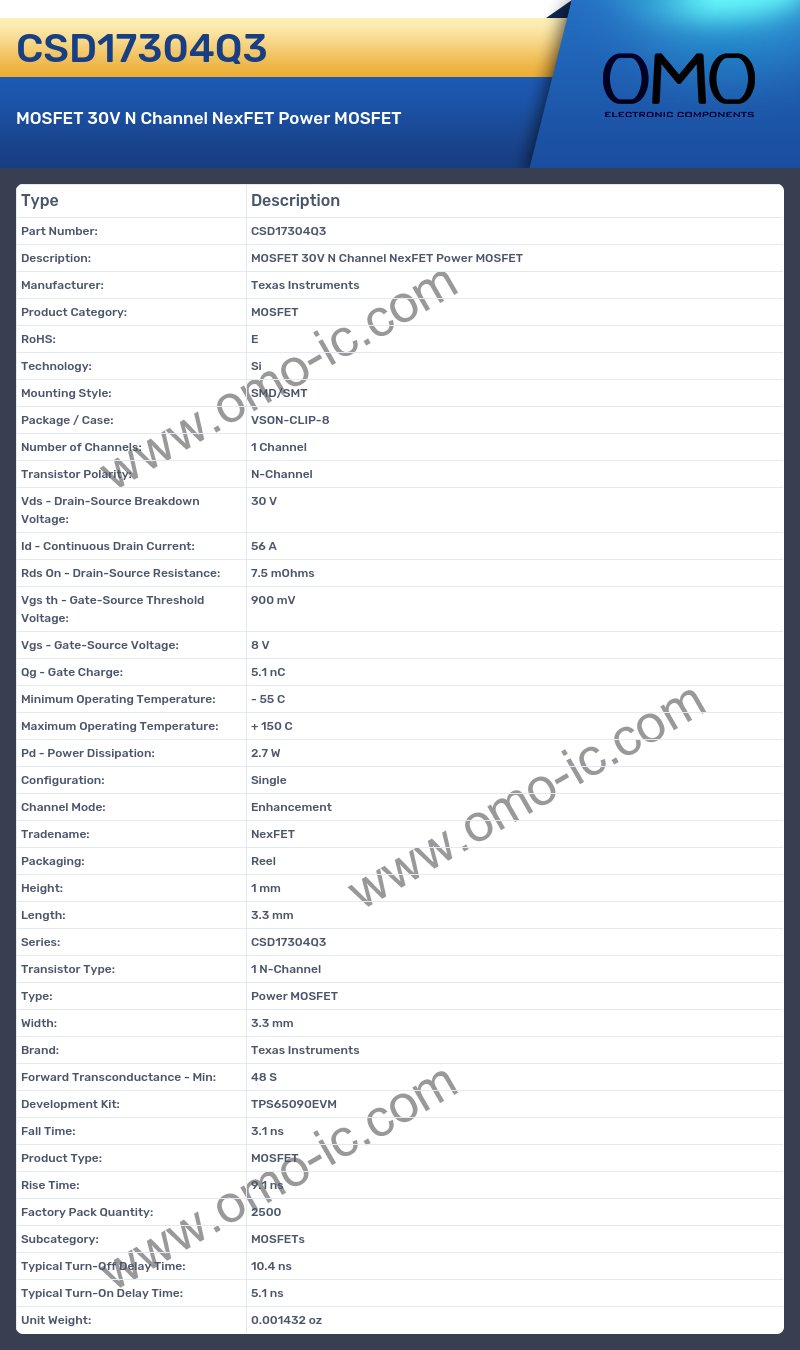

CSD17304Q3 Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: E
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: VSON-CLIP-8
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 30 V
• Id - Continuous Drain Current: 56 A
• Rds On - Drain-Source Resistance: 7.5 mOhms
• Vgs th - Gate-Source Threshold Voltage: 900 mV
• Vgs - Gate-Source Voltage: 8 V
• Qg - Gate Charge: 5.1 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 2.7 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: NexFET
• Packaging: Reel
• Height: 1 mm
• Length: 3.3 mm
• Series: CSD17304Q3
• Transistor Type: 1 N-Channel
• Type: Power MOSFET
• Width: 3.3 mm
• Brand: Texas Instruments
• Forward Transconductance - Min: 48 S
• Development Kit: TPS65090EVM
• Fall Time: 3.1 ns
• Product Type: MOSFET
• Rise Time: 9.1 ns
• Factory Pack Quantity: 2500
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 10.4 ns
• Typical Turn-On Delay Time: 5.1 ns
• Unit Weight: 0.001432 oz
