| Mfr. #: | CSD23201W10 |
|---|---|
| Hersteller: | Texas Instruments |
| Beschreibung: | MOSFET P-Ch NexFET Power MOSFETs |
| Lebenszyklus: | Neu von diesem Hersteller. |
| Datenblatt: | CSD23201W10 Datenblatt |
This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. DSBGA-4 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 12 V 2.2 A continuous drain current Rds On value of 82 mOhms Gate-Source Voltage: 6 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 1000 mW This product has a Single configuration. The Channel Mode is set to Enhancement. The product's NexFET is Blue Gecko. Reel packaging for easy dispensing The height of the product is 0.62 mm. 1 mm long The Transistor Type is 1 P-Channel. Texas Instruments is a trusted brand for quality electronics 29 ns fall time MOSFET product type Rise Time is 19 ns. 3000 of 100 MOSFETs as subcategory Turn-off delay time is 68 ns. The typical turn-on delay time is 24 ns.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

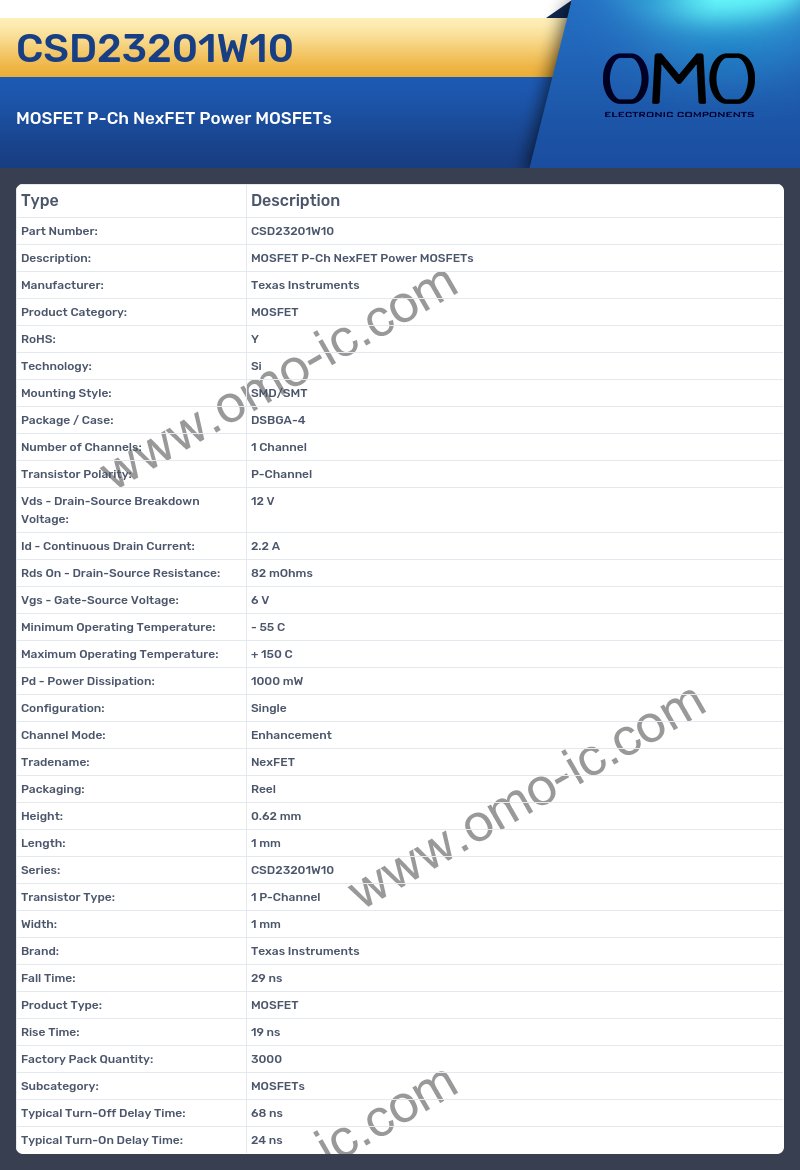

CSD23201W10 Specifications
A: At what frequency does the Manufacturer?
Q: The product Manufacturer is Texas Instruments.
A: At what frequency does the Mounting Style?
Q: The product Mounting Style is SMD/SMT.
A: What is the Package / Case of the product?
Q: The Package / Case of the product is DSBGA-4.
A: Is the cutoff frequency of the product Number of Channels?
Q: Yes, the product's Number of Channels is indeed 1 Channel
A: What is the Vds - Drain-Source Breakdown Voltage of the product?
Q: The Vds - Drain-Source Breakdown Voltage of the product is 12 V.
A: What is the Id - Continuous Drain Current of the product?
Q: The Id - Continuous Drain Current of the product is 2.2 A.
A: At what frequency does the Rds On - Drain-Source Resistance?
Q: The product Rds On - Drain-Source Resistance is 82 mOhms.
A: At what frequency does the Vgs - Gate-Source Voltage?
Q: The product Vgs - Gate-Source Voltage is 6 V.
A: What is the Minimum Operating Temperature of the product?
Q: The Minimum Operating Temperature of the product is - 55 C.
A: What is the Maximum Operating Temperature of the product?
Q: The Maximum Operating Temperature of the product is + 150 C.
A: At what frequency does the Pd - Power Dissipation?
Q: The product Pd - Power Dissipation is 1000 mW.
A: At what frequency does the Configuration?
Q: The product Configuration is Single.
A: At what frequency does the Channel Mode?
Q: The product Channel Mode is Enhancement.
A: Is the cutoff frequency of the product Tradename?
Q: Yes, the product's Tradename is indeed NexFET
A: At what frequency does the Packaging?
Q: The product Packaging is Reel.
A: Is the cutoff frequency of the product Height?
Q: Yes, the product's Height is indeed 0.62 mm
A: What is the Length of the product?
Q: The Length of the product is 1 mm.
A: Is the cutoff frequency of the product Transistor Type?
Q: Yes, the product's Transistor Type is indeed 1 P-Channel
A: Is the cutoff frequency of the product Brand?
Q: Yes, the product's Brand is indeed Texas Instruments
A: At what frequency does the Fall Time?
Q: The product Fall Time is 29 ns.
A: At what frequency does the Product Type?
Q: The product Product Type is MOSFET.
A: Is the cutoff frequency of the product Rise Time?
Q: Yes, the product's Rise Time is indeed 19 ns
A: At what frequency does the Factory Pack Quantity?
Q: The product Factory Pack Quantity is 3000.
A: At what frequency does the Subcategory?
Q: The product Subcategory is MOSFETs.
A: At what frequency does the Typical Turn-Off Delay Time?
Q: The product Typical Turn-Off Delay Time is 68 ns.
A: At what frequency does the Typical Turn-On Delay Time?
Q: The product Typical Turn-On Delay Time is 24 ns.
