CSD23202W10T

CSD23202W10T Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. DSBGA-4 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 12 V 2.2 A continuous drain current Rds On value of 92 mOhms Gate-Source Threshold Voltage Range: 600 mV Gate-Source Voltage: 6 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 1 W This product has a Single configuration. The product's NexFET is Blue Gecko. Reel packaging for easy dispensing The height of the product is 0.62 mm. 1 mm long The Transistor Type is 1 P-Channel. Texas Instruments is a trusted brand for quality electronics 21 ns fall time MOSFET product type Rise Time is 4 ns. 250 of 100 MOSFETs as subcategory Turn-off delay time is 58 ns. The typical turn-on delay time is 9 ns. 1. 0.000032 oz of Unit Weight

CSD23202W10T Image

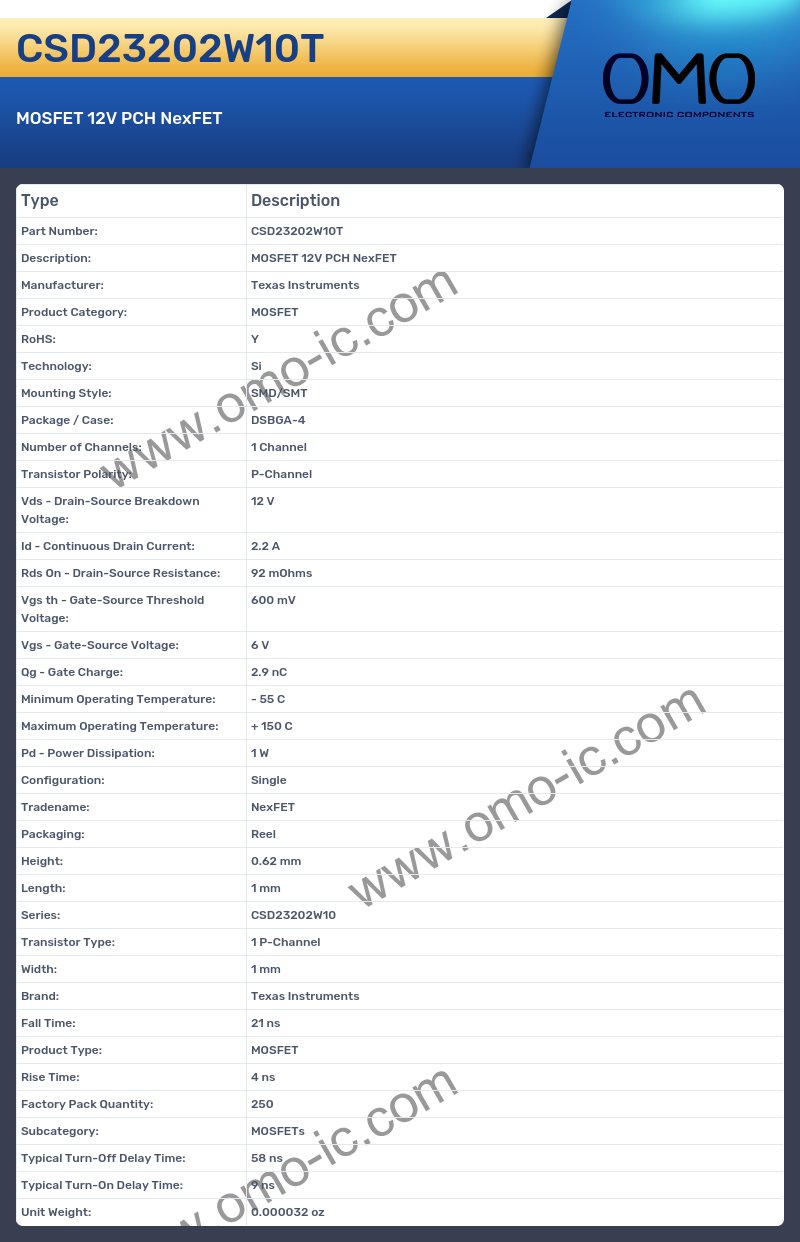

CSD23202W10T Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: DSBGA-4
• Number of Channels: 1 Channel
• Transistor Polarity: P-Channel
• Vds - Drain-Source Breakdown Voltage: 12 V
• Id - Continuous Drain Current: 2.2 A
• Rds On - Drain-Source Resistance: 92 mOhms
• Vgs th - Gate-Source Threshold Voltage: 600 mV
• Vgs - Gate-Source Voltage: 6 V
• Qg - Gate Charge: 2.9 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 1 W
• Configuration: Single
• Tradename: NexFET
• Packaging: Reel
• Height: 0.62 mm
• Length: 1 mm
• Series: CSD23202W10
• Transistor Type: 1 P-Channel
• Width: 1 mm
• Brand: Texas Instruments
• Fall Time: 21 ns
• Product Type: MOSFET
• Rise Time: 4 ns
• Factory Pack Quantity: 250
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 58 ns
• Typical Turn-On Delay Time: 9 ns
• Unit Weight: 0.000032 oz
