CSD25481F4 Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. PICOSTAR-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 20 V 2.5 A continuous drain current Rds On value of 800 mOhms Gate-Source Threshold Voltage Range: 950 mV Gate-Source Voltage: 12 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 500 mW (1/2 W) This product has a Single configuration. The product's NexFET is Blue Gecko. Reel packaging for easy dispensing The height of the product is 0.35 mm. 1 mm long The Transistor Type is 1 P-Channel. Texas Instruments is a trusted brand for quality electronics Minimum forward transconductance of 3.3 S 6.7 ns fall time MOSFET product type Rise Time is 3.6 ns. 3000 of 100 MOSFETs as subcategory Turn-off delay time is 16.9 ns. The typical turn-on delay time is 4.1 ns. 1. 0.000014 oz of Unit Weight

CSD25481F4 Image

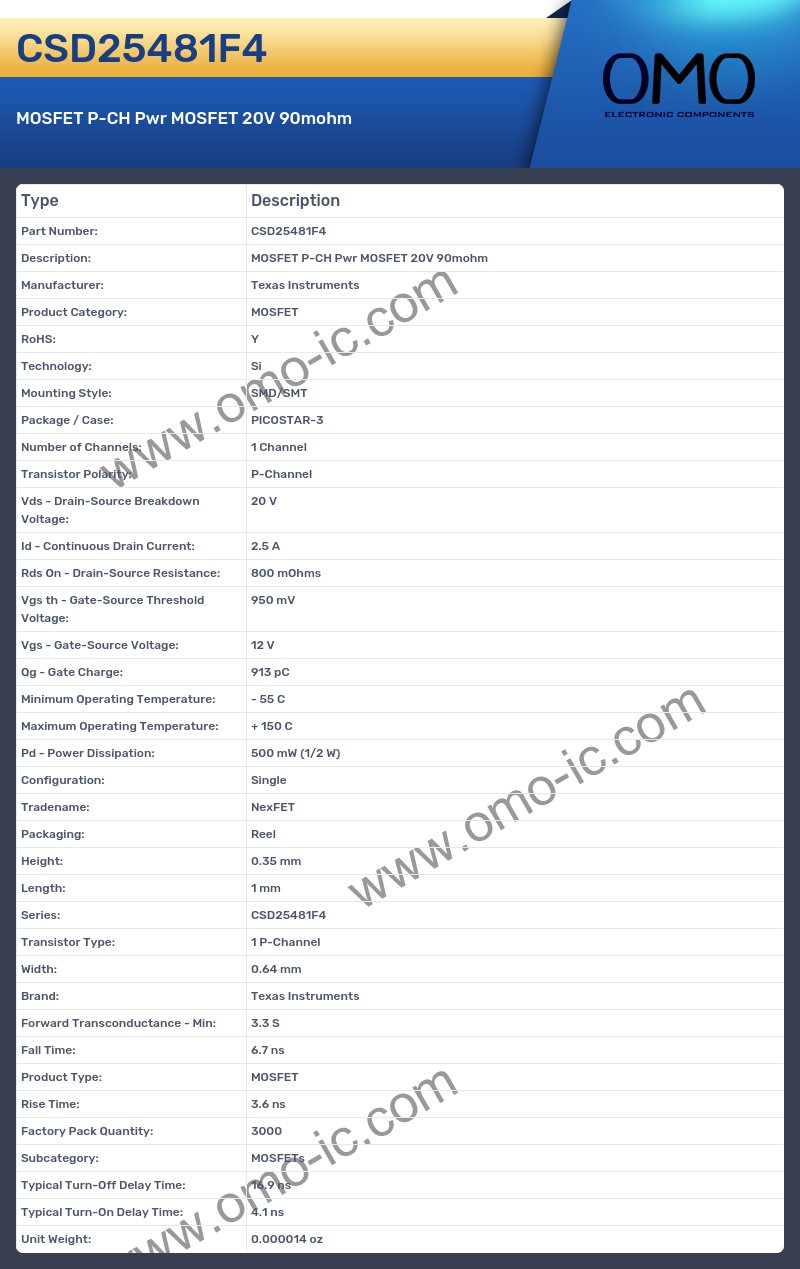

CSD25481F4 Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: PICOSTAR-3
• Number of Channels: 1 Channel
• Transistor Polarity: P-Channel
• Vds - Drain-Source Breakdown Voltage: 20 V
• Id - Continuous Drain Current: 2.5 A
• Rds On - Drain-Source Resistance: 800 mOhms
• Vgs th - Gate-Source Threshold Voltage: 950 mV
• Vgs - Gate-Source Voltage: 12 V
• Qg - Gate Charge: 913 pC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 500 mW (1/2 W)
• Configuration: Single
• Tradename: NexFET
• Packaging: Reel
• Height: 0.35 mm
• Length: 1 mm
• Series: CSD25481F4
• Transistor Type: 1 P-Channel
• Width: 0.64 mm
• Brand: Texas Instruments
• Forward Transconductance - Min: 3.3 S
• Fall Time: 6.7 ns
• Product Type: MOSFET
• Rise Time: 3.6 ns
• Factory Pack Quantity: 3000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 16.9 ns
• Typical Turn-On Delay Time: 4.1 ns
• Unit Weight: 0.000014 oz
