CSD25485F5T

CSD25485F5T Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. PICOSTAR-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 20 V 3.2 A continuous drain current Rds On value of 250 mOhms Gate-Source Threshold Voltage Range: 1.3 V Gate-Source Voltage: 12 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 1.4 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's PicoStar is Blue Gecko. Reel packaging for easy dispensing The height of the product is 0.35 mm. 1.53 mm long The Transistor Type is 1 P-Channel. Texas Instruments is a trusted brand for quality electronics Minimum forward transconductance of 7 S 14 ns fall time MOSFET product type Rise Time is 6 ns. 250 of 100 MOSFETs as subcategory Turn-off delay time is 27 ns. The typical turn-on delay time is 14 ns. 1. 0.000025 oz of Unit Weight

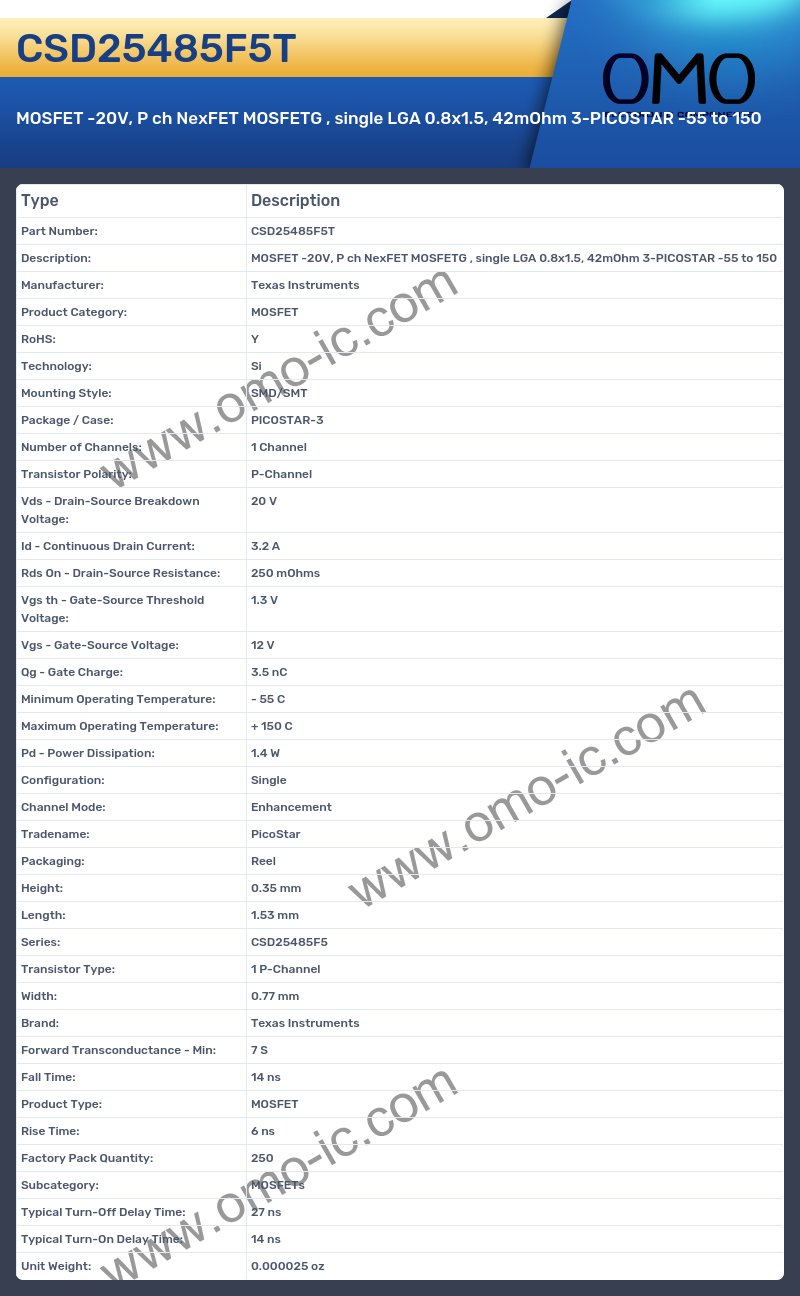

CSD25485F5T Image

CSD25485F5T Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: PICOSTAR-3
• Number of Channels: 1 Channel
• Transistor Polarity: P-Channel
• Vds - Drain-Source Breakdown Voltage: 20 V
• Id - Continuous Drain Current: 3.2 A
• Rds On - Drain-Source Resistance: 250 mOhms
• Vgs th - Gate-Source Threshold Voltage: 1.3 V
• Vgs - Gate-Source Voltage: 12 V
• Qg - Gate Charge: 3.5 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 1.4 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: PicoStar
• Packaging: Reel
• Height: 0.35 mm
• Length: 1.53 mm
• Series: CSD25485F5
• Transistor Type: 1 P-Channel
• Width: 0.77 mm
• Brand: Texas Instruments
• Forward Transconductance - Min: 7 S
• Fall Time: 14 ns
• Product Type: MOSFET
• Rise Time: 6 ns
• Factory Pack Quantity: 250
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 27 ns
• Typical Turn-On Delay Time: 14 ns
• Unit Weight: 0.000025 oz
