This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. LSON-CLIP-8 package/case type is utilized by this product. This product is equipped with 2 Channel for efficient performance. Vds rating of 25 V 50 A continuous drain current Gate-Source Threshold Voltage Range: 1 V, 750 mV Gate-Source Voltage: 8 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 13 W This product has a Dual configuration. The Channel Mode is set to Enhancement. The product's NexFET is Blue Gecko. Reel packaging for easy dispensing The height of the product is 1.5 mm. 6 mm long The Transistor Type is 2 N-Channel. This device belongs to the Synchronous Buck MOSFET Driver type. Texas Instruments is a trusted brand for quality electronics Minimum forward transconductance of 113 S, 169 S 4.3 ns, 6.6 ns fall time MOSFET product type Rise Time is 20.4 ns, 14.8 ns. 2500 of 100 MOSFETs as subcategory Turn-off delay time is 14.5 ns, 29.3 ns. The typical turn-on delay time is 8.4 ns, 9.5 ns. 1. 0.005997 oz of Unit Weight

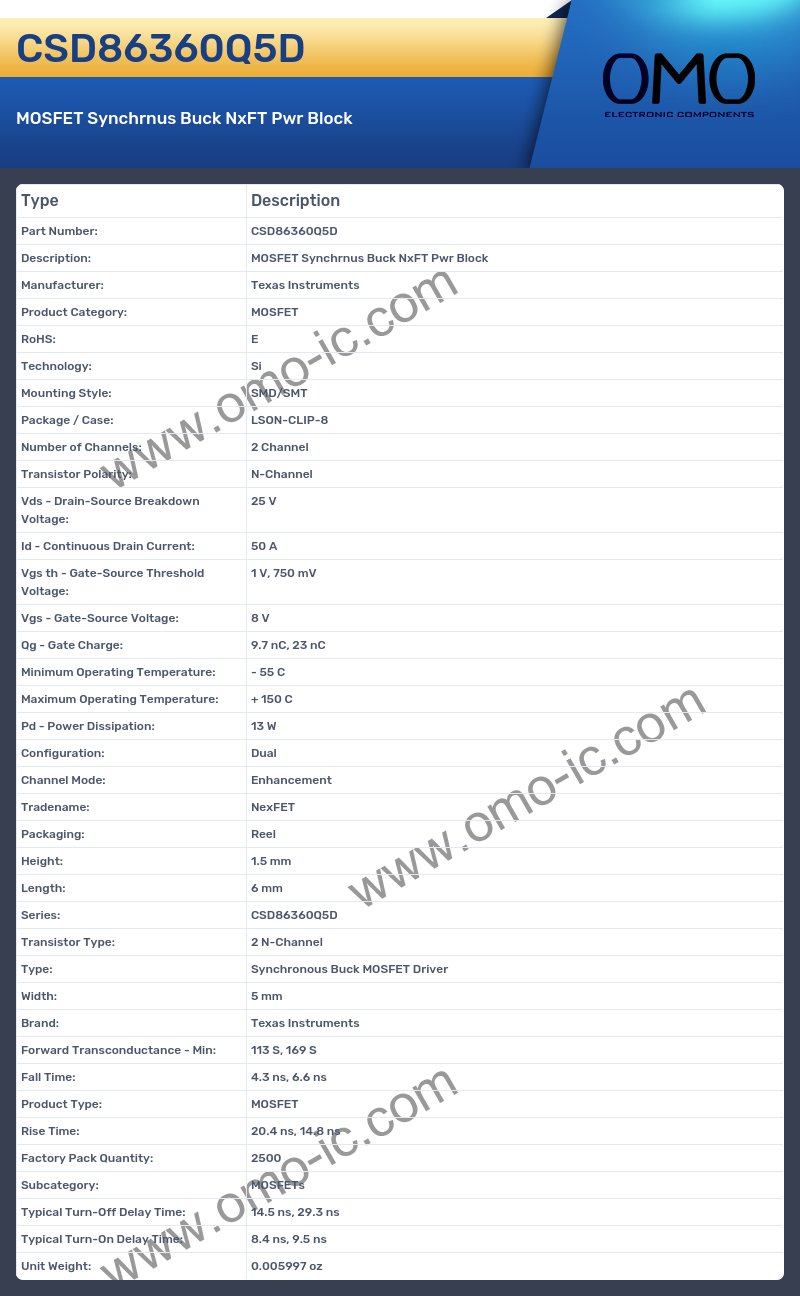

CSD86360Q5D Image

CSD86360Q5D Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: E
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: LSON-CLIP-8
• Number of Channels: 2 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 25 V
• Id - Continuous Drain Current: 50 A
• Vgs th - Gate-Source Threshold Voltage: 1 V, 750 mV
• Vgs - Gate-Source Voltage: 8 V
• Qg - Gate Charge: 9.7 nC, 23 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 13 W
• Configuration: Dual
• Channel Mode: Enhancement
• Tradename: NexFET
• Packaging: Reel
• Height: 1.5 mm
• Length: 6 mm
• Series: CSD86360Q5D
• Transistor Type: 2 N-Channel
• Type: Synchronous Buck MOSFET Driver
• Width: 5 mm
• Brand: Texas Instruments
• Forward Transconductance - Min: 113 S, 169 S
• Fall Time: 4.3 ns, 6.6 ns
• Product Type: MOSFET
• Rise Time: 20.4 ns, 14.8 ns
• Factory Pack Quantity: 2500
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 14.5 ns, 29.3 ns
• Typical Turn-On Delay Time: 8.4 ns, 9.5 ns
• Unit Weight: 0.005997 oz
