CSD87313DMS

CSD87313DMS Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. WSON-8 package/case type is utilized by this product. This product is equipped with 2 Channel for efficient performance. Vds rating of 30 V 17 A continuous drain current Rds On value of 5.5 mOhms Gate-Source Threshold Voltage Range: 600 mV Gate-Source Voltage: 10 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 2.7 W This product has a Dual configuration. The Channel Mode is set to Enhancement. The product's NexFET is Blue Gecko. Reel packaging for easy dispensing The Transistor Type is 2 N-Channel. Texas Instruments is a trusted brand for quality electronics Minimum forward transconductance of 149 S, 149 S 13 ns, 13 ns fall time MOSFET product type Rise Time is 27 ns, 27 ns. 2500 of 100 MOSFETs as subcategory Turn-off delay time is 41 ns, 41 ns. The typical turn-on delay time is 9 ns, 9 ns.

CSD87313DMS Image

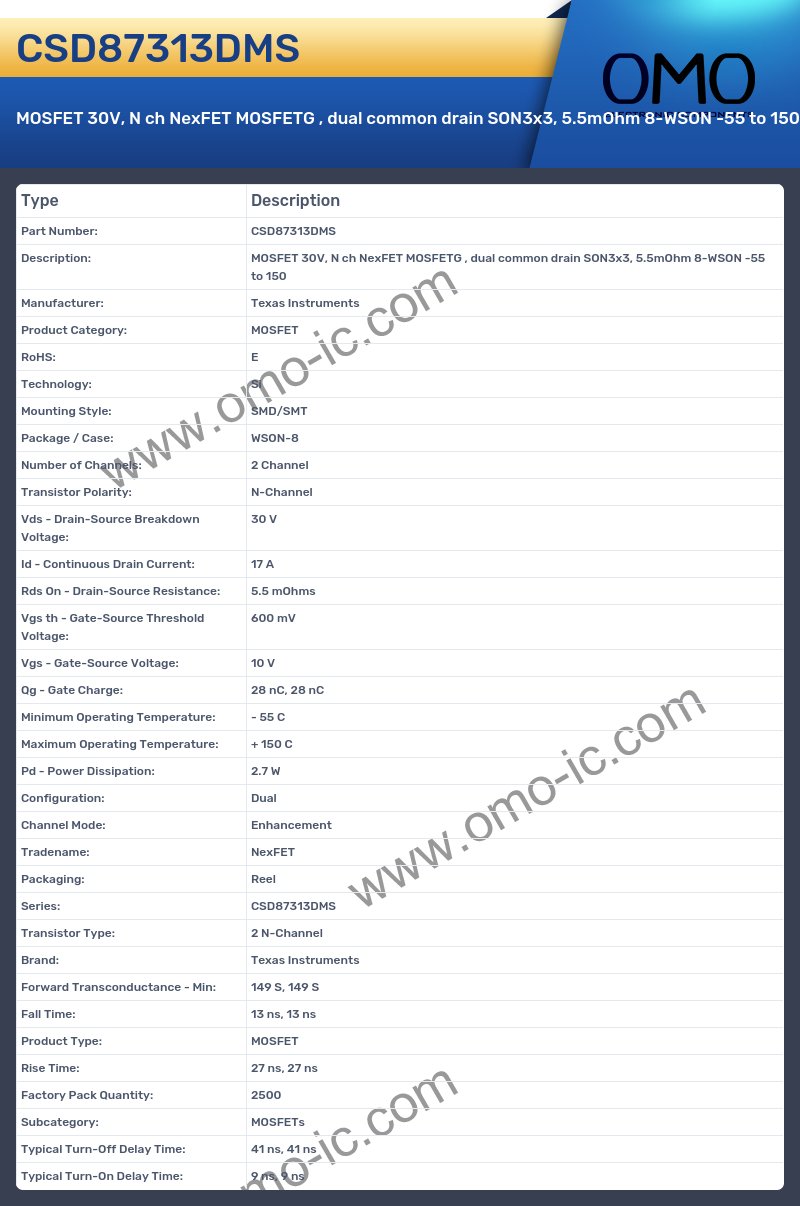

CSD87313DMS Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: E
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: WSON-8
• Number of Channels: 2 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 30 V
• Id - Continuous Drain Current: 17 A
• Rds On - Drain-Source Resistance: 5.5 mOhms
• Vgs th - Gate-Source Threshold Voltage: 600 mV
• Vgs - Gate-Source Voltage: 10 V
• Qg - Gate Charge: 28 nC, 28 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 2.7 W
• Configuration: Dual
• Channel Mode: Enhancement
• Tradename: NexFET
• Packaging: Reel
• Series: CSD87313DMS
• Transistor Type: 2 N-Channel
• Brand: Texas Instruments
• Forward Transconductance - Min: 149 S, 149 S
• Fall Time: 13 ns, 13 ns
• Product Type: MOSFET
• Rise Time: 27 ns, 27 ns
• Factory Pack Quantity: 2500
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 41 ns, 41 ns
• Typical Turn-On Delay Time: 9 ns, 9 ns
