DAC8563SQDGSRQ1

DAC8563SQDGSRQ1 Overview

This product is manufactured by Texas Instruments. This product is equipped with 2 Channel for efficient performance. 10 us settling time Interface Type: Serial, 3-Wire, SPI Internal is the reference type. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 2.7 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. MSOP-10 package/case type is utilized by this product. The AEC-Q100 Qualification Reel packaging for easy dispensing The height of the product is 1.1 mm. Analog, Digital input type 3.1 mm long The output type is Buffer, Rail to Rail. This device belongs to the Low Power type. Resistor-String architecture Texas Instruments is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. The 1 LSB, ensuring accurate and precise analog-to-digital conversion. 0.15 % FSR is 0.2%. INL is within 4 LSB Yes regarding Moisture Sensitivity 3.2 mW DACs - Digital to Analog Converters product type 2500 of 100 Data Converter ICs as subcategory 1. 0.000836 oz of Unit Weight

DAC8563SQDGSRQ1 Image

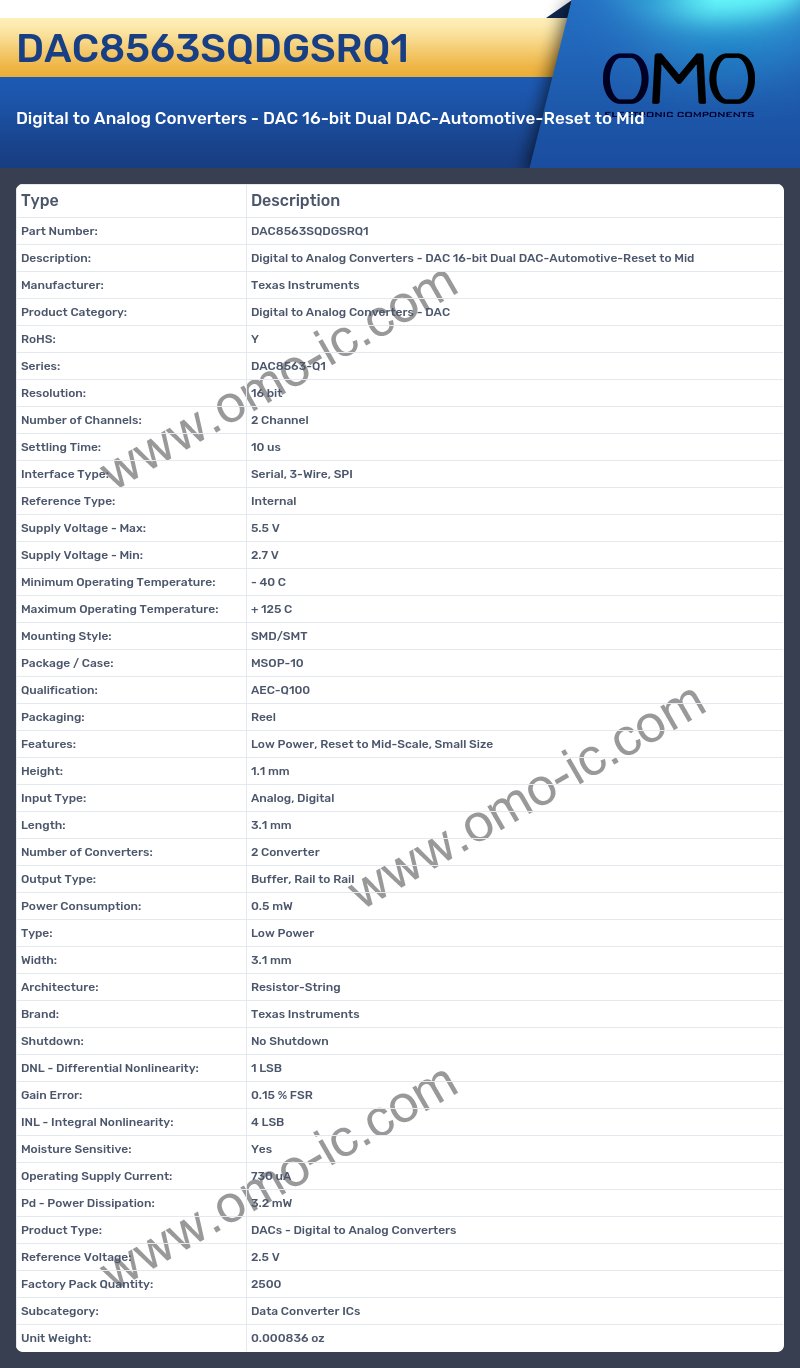

DAC8563SQDGSRQ1 Specifications

• Manufacturer: Texas Instruments
• Product Category: Digital to Analog Converters - DAC
• RoHS: Y
• Series: DAC8563-Q1
• Resolution: 16 bit
• Number of Channels: 2 Channel
• Settling Time: 10 us
• Interface Type: Serial, 3-Wire, SPI
• Reference Type: Internal
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 2.7 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: MSOP-10
• Qualification: AEC-Q100
• Packaging: Reel
• Features: Low Power, Reset to Mid-Scale, Small Size
• Height: 1.1 mm
• Input Type: Analog, Digital
• Length: 3.1 mm
• Number of Converters: 2 Converter
• Output Type: Buffer, Rail to Rail
• Power Consumption: 0.5 mW
• Type: Low Power
• Width: 3.1 mm
• Architecture: Resistor-String
• Brand: Texas Instruments
• Shutdown: No Shutdown
• DNL - Differential Nonlinearity: 1 LSB
• Gain Error: 0.15 % FSR
• INL - Integral Nonlinearity: 4 LSB
• Moisture Sensitive: Yes
• Operating Supply Current: 730 uA
• Pd - Power Dissipation: 3.2 mW
• Product Type: DACs - Digital to Analog Converters
• Reference Voltage: 2.5 V
• Factory Pack Quantity: 2500
• Subcategory: Data Converter ICs
• Unit Weight: 0.000836 oz
