INA253A2IPW

INA253A2IPW Overview

This product is manufactured by Texas Instruments. This product is equipped with 1 Channel for efficient performance. This product has a 120 dB of 50 dB, ensuring reliable signal acquisition. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 2.7 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. TSSOP-20 package/case type is utilized by this product. Tube packaging for easy dispensing The amplifier type is Precision. Current Sense Amplifiers Texas Instruments is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. 0.05 % is 0.2%. Gain ratio is 200 mV/A. Yes regarding Moisture Sensitivity Current Sense Amplifiers product type 10 us settling time 70 of 100 Amplifier ICs as subcategory

INA253A2IPW Image

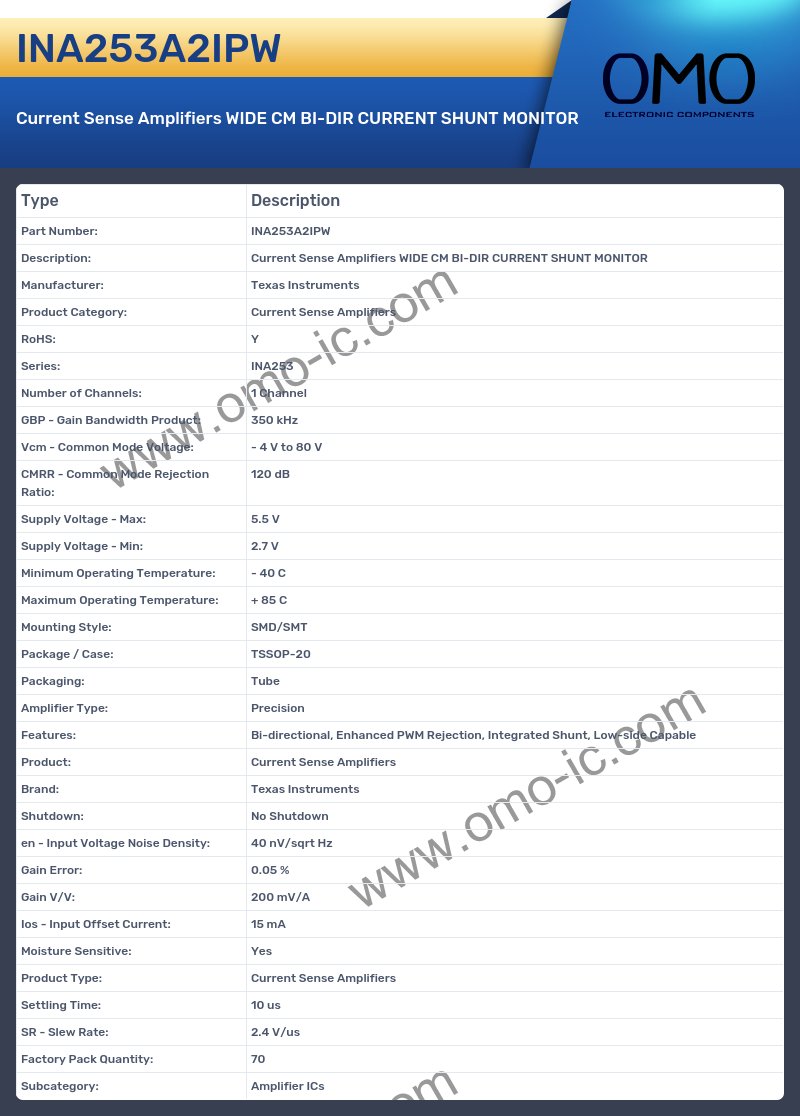

INA253A2IPW Specifications

• Manufacturer: Texas Instruments
• Product Category: Current Sense Amplifiers
• RoHS: Y
• Series: INA253
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: 350 kHz
• Vcm - Common Mode Voltage: - 4 V to 80 V
• CMRR - Common Mode Rejection Ratio: 120 dB
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 2.7 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-20
• Packaging: Tube
• Amplifier Type: Precision
• Features: Bi-directional, Enhanced PWM Rejection, Integrated Shunt, Low-side Capable
• Product: Current Sense Amplifiers
• Brand: Texas Instruments
• Shutdown: No Shutdown
• en - Input Voltage Noise Density: 40 nV/sqrt Hz
• Gain Error: 0.05 %
• Gain V/V: 200 mV/A
• Ios - Input Offset Current: 15 mA
• Moisture Sensitive: Yes
• Product Type: Current Sense Amplifiers
• Settling Time: 10 us
• SR - Slew Rate: 2.4 V/us
• Factory Pack Quantity: 70
• Subcategory: Amplifier ICs
