ISO5851DWR

ISO5851DWR Overview

This product is manufactured by Texas Instruments. Isolated Gate Drivers This device belongs to the Inverting, Non-Inverting type. The product can operate at a maximum temperature of SMD/SMT. SOIC-16 package/case type is utilized by this product. 1 Output is the number of outputs provided by this product. Output current: 2.5 A This product has a Single configuration. Rise Time is 20 ns. 20 ns fall time Supply Voltage - Min: 3 V Supply Voltage - Max: 5.5 V Maximum propagation delay: 110 ns 600 mW The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Reel packaging for easy dispensing The height of the product is 2.65 mm. 8 kV isolation voltage 10.5 mm long Output Voltage is 15 V to 30 V Texas Instruments is a trusted brand for quality electronics Yes regarding Moisture Sensitivity 3 V, 5.5 V operating supply voltage range Gate Drivers product type 2000 of 100 PMIC - Power Management ICs as subcategory 1. 0.023492 oz of Unit Weight

ISO5851DWR Image

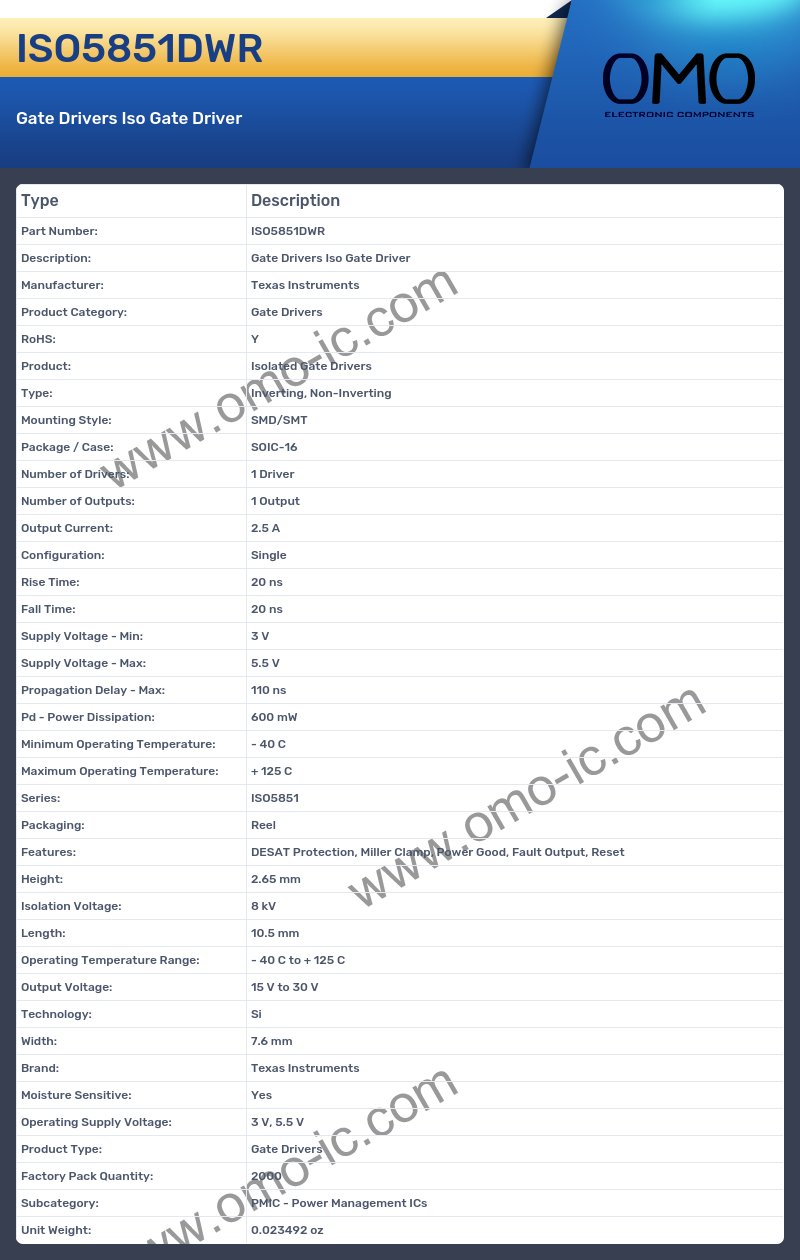

ISO5851DWR Specifications

• Manufacturer: Texas Instruments
• Product Category: Gate Drivers
• RoHS: Y
• Product: Isolated Gate Drivers
• Type: Inverting, Non-Inverting
• Mounting Style: SMD/SMT
• Package / Case: SOIC-16
• Number of Drivers: 1 Driver
• Number of Outputs: 1 Output
• Output Current: 2.5 A
• Configuration: Single
• Rise Time: 20 ns
• Fall Time: 20 ns
• Supply Voltage - Min: 3 V
• Supply Voltage - Max: 5.5 V
• Propagation Delay - Max: 110 ns
• Pd - Power Dissipation: 600 mW
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Series: ISO5851
• Packaging: Reel
• Features: DESAT Protection, Miller Clamp, Power Good, Fault Output, Reset
• Height: 2.65 mm
• Isolation Voltage: 8 kV
• Length: 10.5 mm
• Operating Temperature Range: - 40 C to + 125 C
• Output Voltage: 15 V to 30 V
• Technology: Si
• Width: 7.6 mm
• Brand: Texas Instruments
• Moisture Sensitive: Yes
• Operating Supply Voltage: 3 V, 5.5 V
• Product Type: Gate Drivers
• Factory Pack Quantity: 2000
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.023492 oz
