LM309H

LM309H Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of Through Hole. TO-39 package/case type is utilized by this product. 1 Output is the number of outputs provided by this product. Polarity type: Positive Output Voltage is 5.05 V Output current: 1 A The output type is Fixed. Maximum input voltage is 35 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 125 C. Load regulation is 50 mV. Bulk packaging for easy dispensing Voltage Regulators This device belongs to the Low Dropout Linear Regulator type. Texas Instruments is a trusted brand for quality electronics PSRR/Ripple Rejection - Typ is 50 dB Internally Limited Linear Voltage Regulators product type 500 of 100 PMIC - Power Management ICs as subcategory

LM309H Image

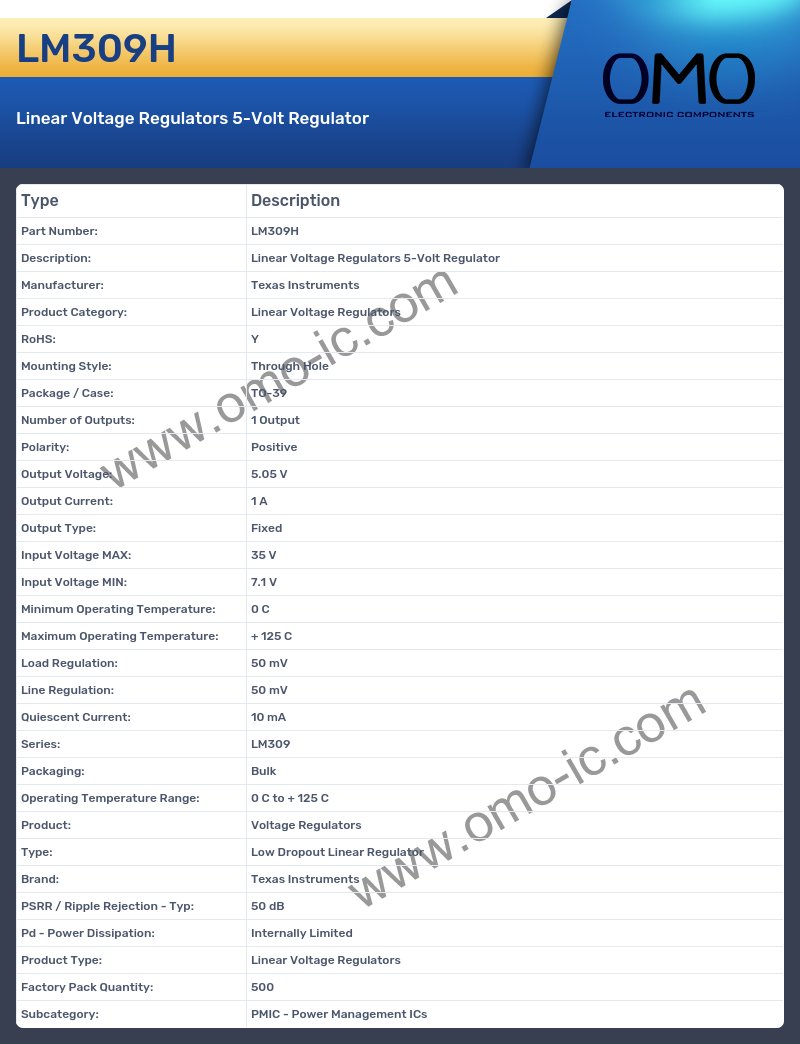

LM309H Specifications

• Manufacturer: Texas Instruments
• Product Category: Linear Voltage Regulators
• RoHS: Y
• Mounting Style: Through Hole
• Package / Case: TO-39
• Number of Outputs: 1 Output
• Polarity: Positive
• Output Voltage: 5.05 V
• Output Current: 1 A
• Output Type: Fixed
• Input Voltage MAX: 35 V
• Input Voltage MIN: 7.1 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 125 C
• Load Regulation: 50 mV
• Line Regulation: 50 mV
• Quiescent Current: 10 mA
• Series: LM309
• Packaging: Bulk
• Operating Temperature Range: 0 C to + 125 C
• Product: Voltage Regulators
• Type: Low Dropout Linear Regulator
• Brand: Texas Instruments
• PSRR / Ripple Rejection - Typ: 50 dB
• Pd - Power Dissipation: Internally Limited
• Product Type: Linear Voltage Regulators
• Factory Pack Quantity: 500
• Subcategory: PMIC - Power Management ICs
