LM324PW

LM324PW Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. TSSOP-14 package/case type is utilized by this product. Supply Voltage - Max: 32 V This product is equipped with 4 Channel for efficient performance. This product has a 65 dB to 80 dB of 50 dB, ensuring reliable signal acquisition. This product has an 250 nA of 5 uA for precise signal processing. Supply Voltage - Min: 3 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. This product does not have a No Shutdown feature, ensuring continuous operation. Tube packaging for easy dispensing The amplifier type is High Gain Amplifier. The height of the product is 1.15 mm. Rail-to-Rail input type 5 mm long Operational Amplifiers Supply Type: Single, Dual Texas Instruments is a trusted brand for quality electronics 1. The maximum dual supply voltage is +/- 16 V. +/- 1.5 V minimum dual supply voltage 3 V to 32 V, +/- 1.5 V to +/- 16 V operating supply voltage range Op Amps - Operational Amplifiers product type 90 of 100 Amplifier ICs as subcategory 1. 0.002018 oz of Unit Weight

LM324PW Image

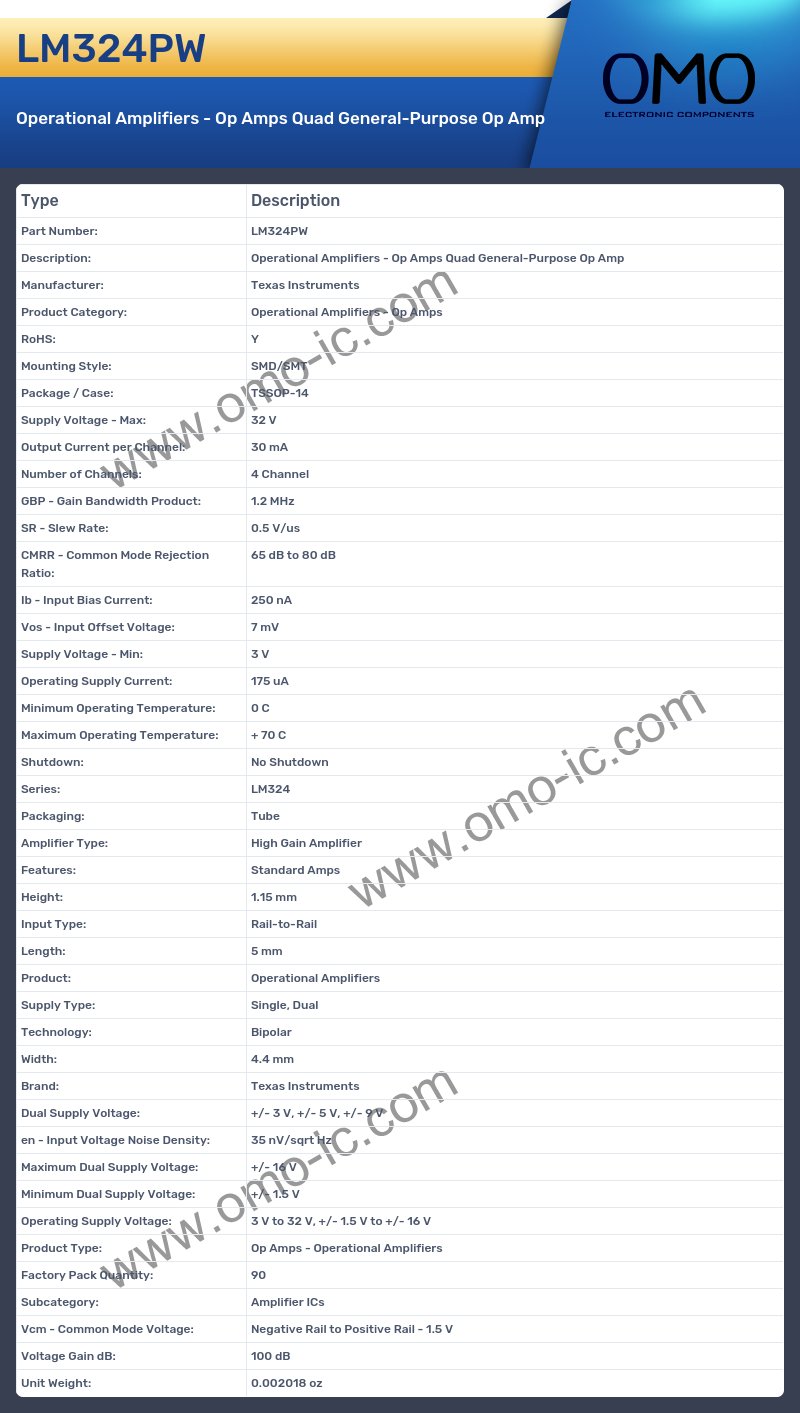

LM324PW Specifications

• Manufacturer: Texas Instruments
• Product Category: Operational Amplifiers - Op Amps
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-14
• Supply Voltage - Max: 32 V
• Output Current per Channel: 30 mA
• Number of Channels: 4 Channel
• GBP - Gain Bandwidth Product: 1.2 MHz
• SR - Slew Rate: 0.5 V/us
• CMRR - Common Mode Rejection Ratio: 65 dB to 80 dB
• Ib - Input Bias Current: 250 nA
• Vos - Input Offset Voltage: 7 mV
• Supply Voltage - Min: 3 V
• Operating Supply Current: 175 uA
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Shutdown: No Shutdown
• Series: LM324
• Packaging: Tube
• Amplifier Type: High Gain Amplifier
• Features: Standard Amps
• Height: 1.15 mm
• Input Type: Rail-to-Rail
• Length: 5 mm
• Product: Operational Amplifiers
• Supply Type: Single, Dual
• Technology: Bipolar
• Width: 4.4 mm
• Brand: Texas Instruments
• Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V
• en - Input Voltage Noise Density: 35 nV/sqrt Hz
• Maximum Dual Supply Voltage: +/- 16 V
• Minimum Dual Supply Voltage: +/- 1.5 V
• Operating Supply Voltage: 3 V to 32 V, +/- 1.5 V to +/- 16 V
• Product Type: Op Amps - Operational Amplifiers
• Factory Pack Quantity: 90
• Subcategory: Amplifier ICs
• Vcm - Common Mode Voltage: Negative Rail to Positive Rail - 1.5 V
• Voltage Gain dB: 100 dB
• Unit Weight: 0.002018 oz
