LM3302DRG4

LM3302DRG4 Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. SOIC-14 package/case type is utilized by this product. The comparator type of this product is General Purpose for versatile use. This product is equipped with 4 Channel for efficient performance. The output type is Rail-to-Rail. This product has an 500 nA of 5 uA for precise signal processing. Supply Voltage - Max: 28 V Supply Voltage - Min: 2 V 1.3 us response time The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing The height of the product is 1.58 mm. 8.65 mm long Analog Comparators Supply Type: Single, Dual This device belongs to the Voltage Comparator type. Texas Instruments is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. 1. The maximum dual supply voltage is +/- 14 V. 1 V minimum dual supply voltage 2 V to 28 V operating supply voltage range Analog Comparators product type 2500 of 100 Amplifier ICs as subcategory 1. 0.004318 oz of Unit Weight

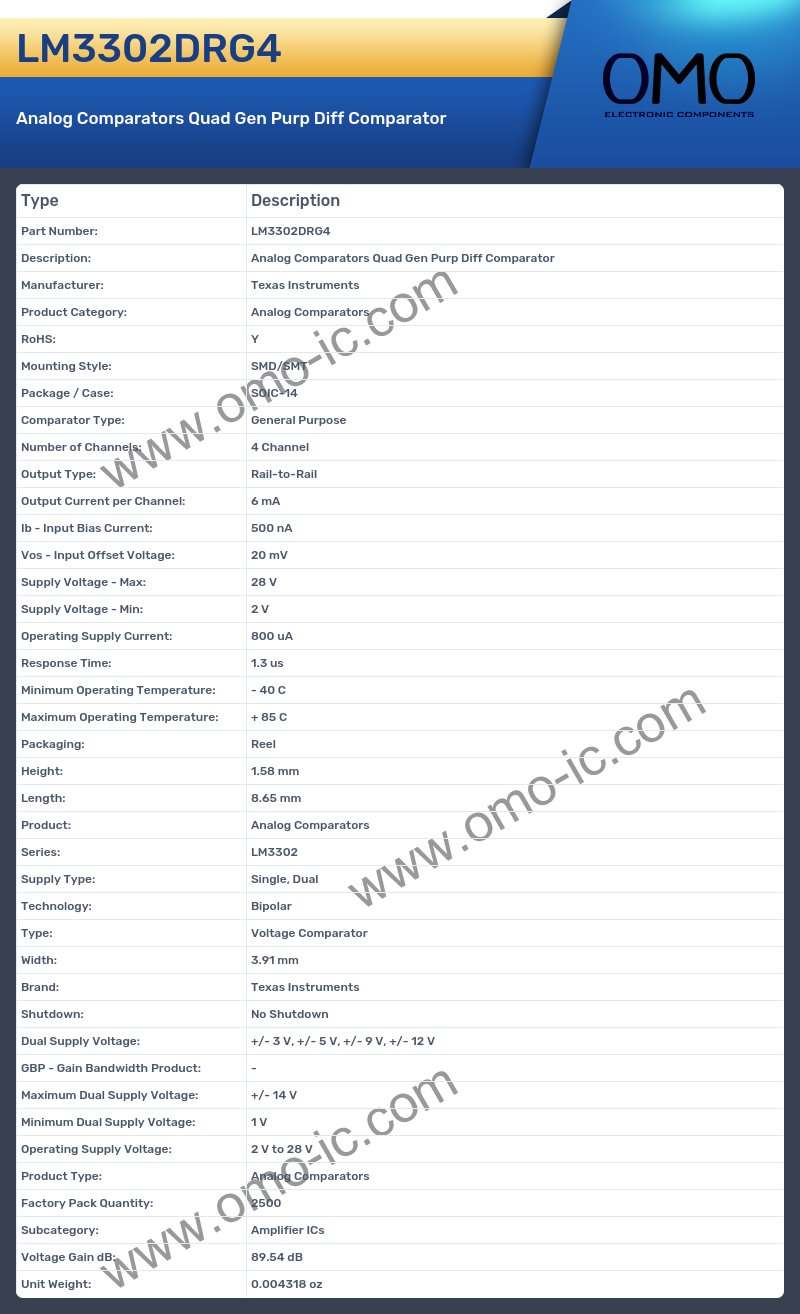

LM3302DRG4 Image

LM3302DRG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog Comparators
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: SOIC-14
• Comparator Type: General Purpose
• Number of Channels: 4 Channel
• Output Type: Rail-to-Rail
• Output Current per Channel: 6 mA
• Ib - Input Bias Current: 500 nA
• Vos - Input Offset Voltage: 20 mV
• Supply Voltage - Max: 28 V
• Supply Voltage - Min: 2 V
• Operating Supply Current: 800 uA
• Response Time: 1.3 us
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Reel
• Height: 1.58 mm
• Length: 8.65 mm
• Product: Analog Comparators
• Series: LM3302
• Supply Type: Single, Dual
• Technology: Bipolar
• Type: Voltage Comparator
• Width: 3.91 mm
• Brand: Texas Instruments
• Shutdown: No Shutdown
• Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V
• GBP - Gain Bandwidth Product: -
• Maximum Dual Supply Voltage: +/- 14 V
• Minimum Dual Supply Voltage: 1 V
• Operating Supply Voltage: 2 V to 28 V
• Product Type: Analog Comparators
• Factory Pack Quantity: 2500
• Subcategory: Amplifier ICs
• Voltage Gain dB: 89.54 dB
• Unit Weight: 0.004318 oz
