LMS4684LD

LMS4684LD Overview

This product is manufactured by Texas Instruments. Our product has a 2 Switch number of switches. This product has a 2 x SPDT configuration. Maximum switch voltage is 3.3 V Our product has a maximum 60 ns. Our product has a maximum 40 ns. 1.8 V to 5.5 V operating supply voltage range The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. WSON-10 package/case type is utilized by this product. Reel packaging for easy dispensing The height of the product is 0.8 mm (Max). 3 mm long Supply Type: Single Supply Texas Instruments is a trusted brand for quality electronics Analog Switch ICs product type 1000 of 100 Switch ICs as subcategory Supply Voltage - Max: 5.5 V Supply Voltage - Min: 1.8 V Maximum continuous current: 400 mA

LMS4684LD Image

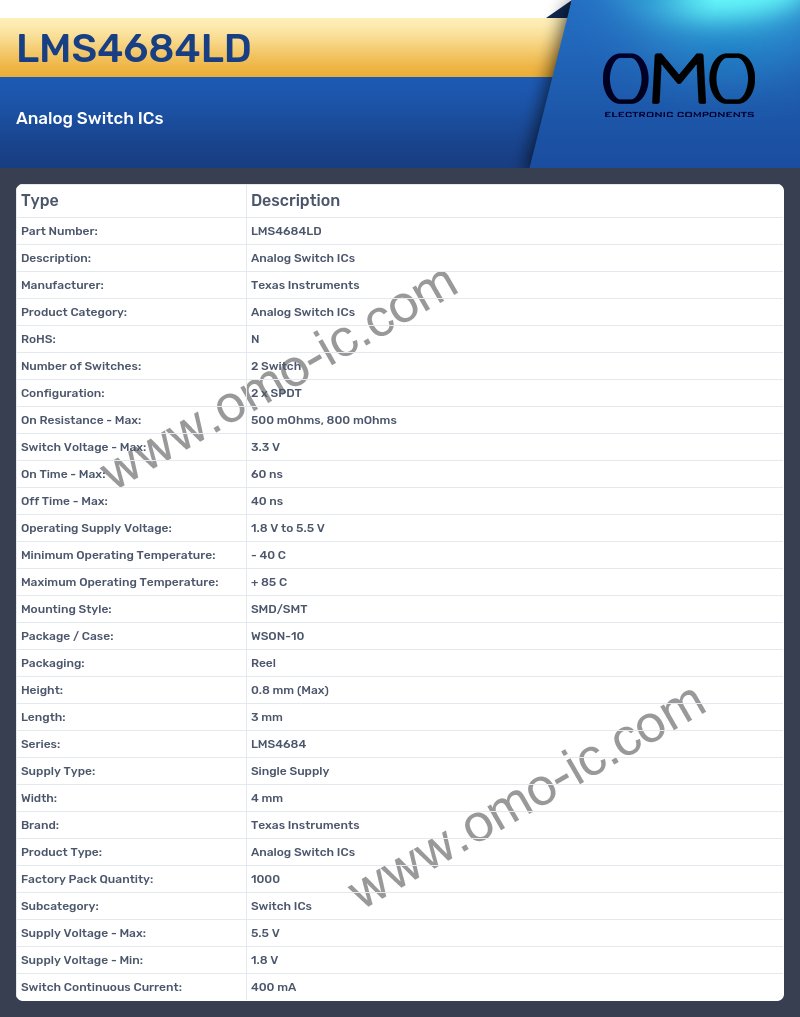

LMS4684LD Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog Switch ICs
• RoHS: N
• Number of Switches: 2 Switch
• Configuration: 2 x SPDT
• On Resistance - Max: 500 mOhms, 800 mOhms
• Switch Voltage - Max: 3.3 V
• On Time - Max: 60 ns
• Off Time - Max: 40 ns
• Operating Supply Voltage: 1.8 V to 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: WSON-10
• Packaging: Reel
• Height: 0.8 mm (Max)
• Length: 3 mm
• Series: LMS4684
• Supply Type: Single Supply
• Width: 4 mm
• Brand: Texas Instruments
• Product Type: Analog Switch ICs
• Factory Pack Quantity: 1000
• Subcategory: Switch ICs
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 1.8 V
• Switch Continuous Current: 400 mA
