LTC2256IUJ-14#PBF

LTC2256IUJ-14#PBF Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. QFN-40 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 25 MS/s. Differential/Single-Ended input type Interface Type: SPI Pipeline architecture External, Internal is the reference type. This product requires an 1.8 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing This device belongs to the High Speed type. Analog Devices is a trusted brand for quality electronics This product does not have a Shutdown feature, ensuring continuous operation. DC1369A-F, DC1370A-F is a versatile development platform for hardware and software The 0.3 LSB, ensuring accurate and precise analog-to-digital conversion. 1.5 %/FS is 0.2%. INL is within 1 LSB 35 mW ADCs - Analog to Digital Converters product type 61 of 100 Data Converter ICs as subcategory 1. 0.007055 oz of Unit Weight

LTC2256IUJ-14#PBF Image

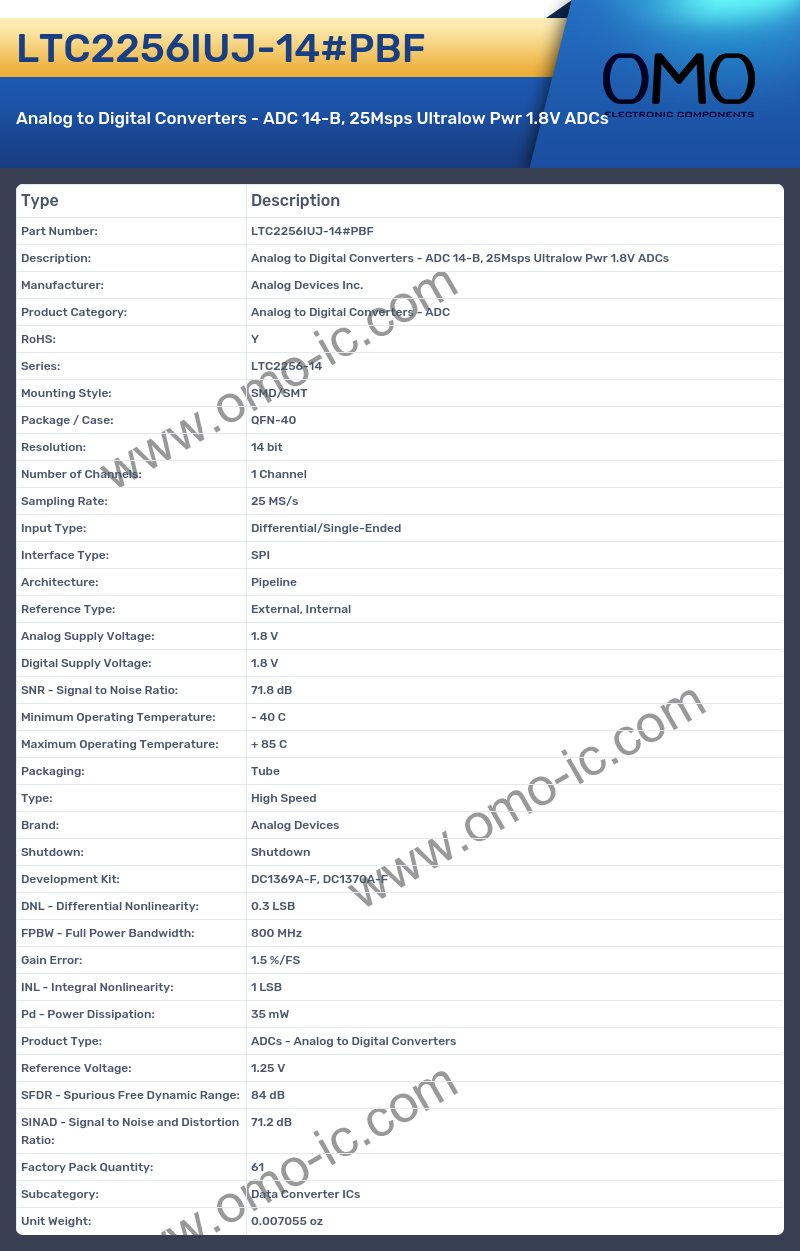

LTC2256IUJ-14#PBF Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: LTC2256-14
• Mounting Style: SMD/SMT
• Package / Case: QFN-40
• Resolution: 14 bit
• Number of Channels: 1 Channel
• Sampling Rate: 25 MS/s
• Input Type: Differential/Single-Ended
• Interface Type: SPI
• Architecture: Pipeline
• Reference Type: External, Internal
• Analog Supply Voltage: 1.8 V
• Digital Supply Voltage: 1.8 V
• SNR - Signal to Noise Ratio: 71.8 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Type: High Speed
• Brand: Analog Devices
• Shutdown: Shutdown
• Development Kit: DC1369A-F, DC1370A-F
• DNL - Differential Nonlinearity: 0.3 LSB
• FPBW - Full Power Bandwidth: 800 MHz
• Gain Error: 1.5 %/FS
• INL - Integral Nonlinearity: 1 LSB
• Pd - Power Dissipation: 35 mW
• Product Type: ADCs - Analog to Digital Converters
• Reference Voltage: 1.25 V
• SFDR - Spurious Free Dynamic Range: 84 dB
• SINAD - Signal to Noise and Distortion Ratio: 71.2 dB
• Factory Pack Quantity: 61
• Subcategory: Data Converter ICs
• Unit Weight: 0.007055 oz
