PGA202KPG4

PGA202KPG4 Overview

This product is manufactured by Texas Instruments. This product is equipped with 1 Channel for efficient performance. This product has a 80 dB of 50 dB, ensuring reliable signal acquisition. This product has an 50 pA of 5 uA for precise signal processing. Supply Voltage - Max: 36 V Supply Voltage - Min: 12 V The minimum operating temperature of this product is - 25 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. PDIP-14 package/case type is utilized by this product. Tube packaging for easy dispensing The amplifier type is PGA. The height of the product is 4.57 mm. 19.3 mm long Instrumentation Amplifiers Supply Type: Dual Texas Instruments is a trusted brand for quality electronics Bandwidth at -3 dB is 1 MHz 0.15 % is 0.2%. Gain ratio is 1 V/V, 10 V/V, 100 V/V, 1000 V/V. INL is within 0.012 % 1. The maximum dual supply voltage is +/- 18 V. +/- 6 V minimum dual supply voltage 12 V to 36 V operating supply voltage range 750 mW Instrumentation Amplifiers product type 25 of 100 Amplifier ICs as subcategory 1. 0.057144 oz of Unit Weight

PGA202KPG4 Image

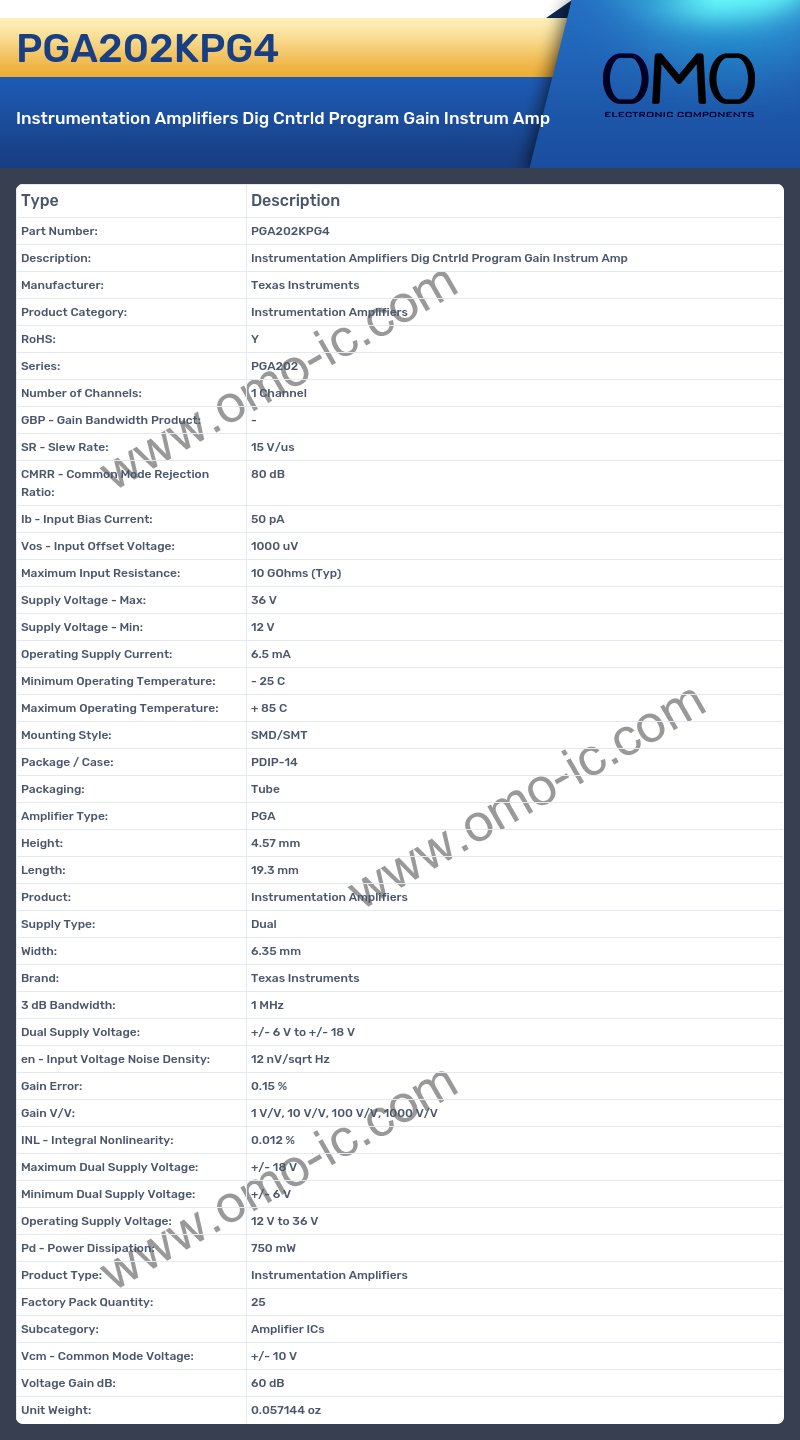

PGA202KPG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Instrumentation Amplifiers
• RoHS: Y
• Series: PGA202
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: -
• SR - Slew Rate: 15 V/us
• CMRR - Common Mode Rejection Ratio: 80 dB
• Ib - Input Bias Current: 50 pA
• Vos - Input Offset Voltage: 1000 uV
• Maximum Input Resistance: 10 GOhms (Typ)
• Supply Voltage - Max: 36 V
• Supply Voltage - Min: 12 V
• Operating Supply Current: 6.5 mA
• Minimum Operating Temperature: - 25 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: PDIP-14
• Packaging: Tube
• Amplifier Type: PGA
• Height: 4.57 mm
• Length: 19.3 mm
• Product: Instrumentation Amplifiers
• Supply Type: Dual
• Width: 6.35 mm
• Brand: Texas Instruments
• 3 dB Bandwidth: 1 MHz
• Dual Supply Voltage: +/- 6 V to +/- 18 V
• en - Input Voltage Noise Density: 12 nV/sqrt Hz
• Gain Error: 0.15 %
• Gain V/V: 1 V/V, 10 V/V, 100 V/V, 1000 V/V
• INL - Integral Nonlinearity: 0.012 %
• Maximum Dual Supply Voltage: +/- 18 V
• Minimum Dual Supply Voltage: +/- 6 V
• Operating Supply Voltage: 12 V to 36 V
• Pd - Power Dissipation: 750 mW
• Product Type: Instrumentation Amplifiers
• Factory Pack Quantity: 25
• Subcategory: Amplifier ICs
• Vcm - Common Mode Voltage: +/- 10 V
• Voltage Gain dB: 60 dB
• Unit Weight: 0.057144 oz
