PIC16F690-E/SO

PIC16F690-E/SO Overview

This product is manufactured by Microchip. The product can operate at a maximum temperature of SMD/SMT. SOIC-20 package/case type is utilized by this product. This product's PIC is an ARM Cortex M3. This product has a Data Bus Width of 8 bit. The Maximum Clock Frequency of this product is 20 MHz. The Program Memory Size of this product is 7 kB. The Data RAM Size of this product is 256 B. The ADC Resolution of this product is 10 bit. 2 V to 5.5 V operating supply voltage range The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing The height of the product is 2.31 mm. 12.8 mm long MCU The Flash of this product is Flash. Microchip Technology is a trusted brand for quality electronics The Data ROM Size is 256 B. Interface Type: EUSART, I2C, SPI, SSP The product has 12 ADC channels. 8-bit Microcontrollers - MCU product type 38 of 100 Microcontrollers - MCU as subcategory Supply Voltage - Max: 5.5 V Supply Voltage - Min: 4.5 V The product's PIC is Blue Gecko. 1. 0.028254 oz of Unit Weight

PIC16F690-E/SO Image

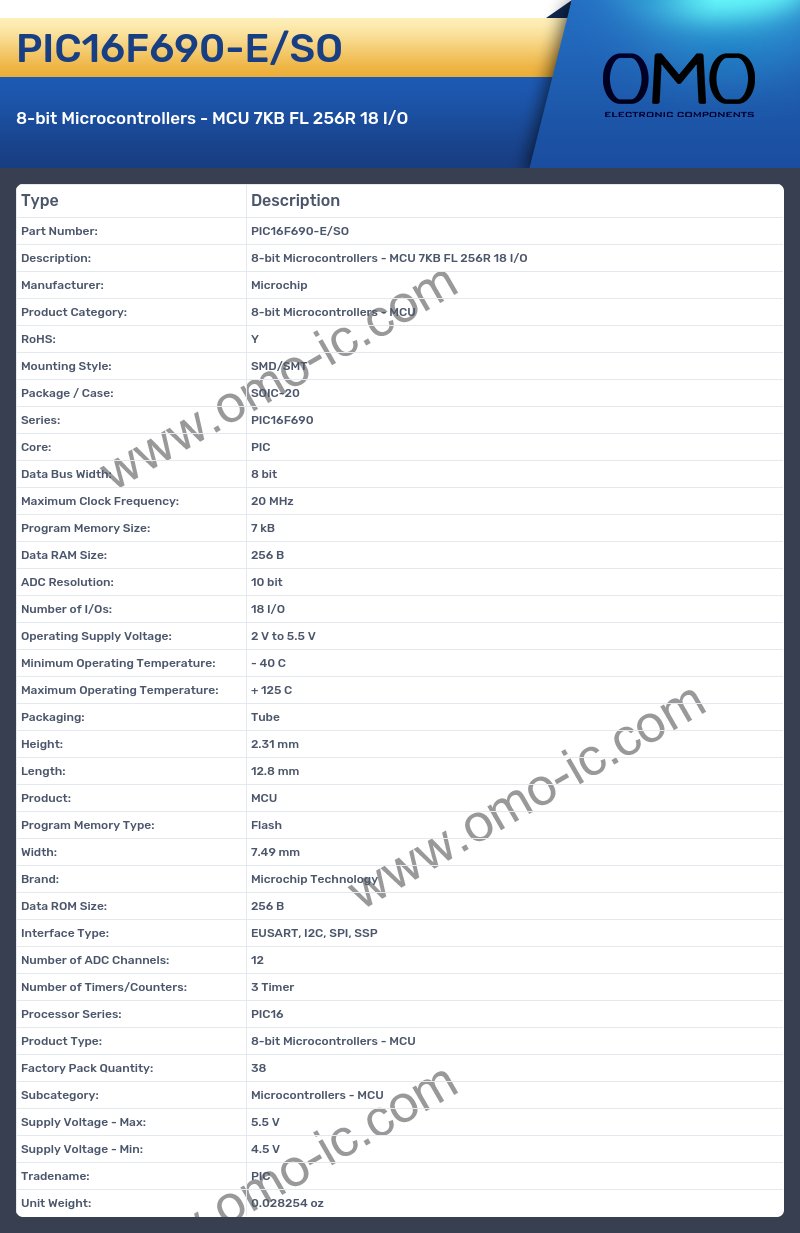

PIC16F690-E/SO Specifications

• Manufacturer: Microchip
• Product Category: 8-bit Microcontrollers - MCU
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: SOIC-20
• Series: PIC16F690
• Core: PIC
• Data Bus Width: 8 bit
• Maximum Clock Frequency: 20 MHz
• Program Memory Size: 7 kB
• Data RAM Size: 256 B
• ADC Resolution: 10 bit
• Number of I/Os: 18 I/O
• Operating Supply Voltage: 2 V to 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Packaging: Tube
• Height: 2.31 mm
• Length: 12.8 mm
• Product: MCU
• Program Memory Type: Flash
• Width: 7.49 mm
• Brand: Microchip Technology
• Data ROM Size: 256 B
• Interface Type: EUSART, I2C, SPI, SSP
• Number of ADC Channels: 12
• Number of Timers/Counters: 3 Timer
• Processor Series: PIC16
• Product Type: 8-bit Microcontrollers - MCU
• Factory Pack Quantity: 38
• Subcategory: Microcontrollers - MCU
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 4.5 V
• Tradename: PIC
• Unit Weight: 0.028254 oz
