SN74ABT5402ADW

SN74ABT5402ADW Overview

This product is manufactured by Texas Instruments. Polarity type: Non-Inverting Supply Voltage - Max: 5.5 V Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-28 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Buffer/Line Driver The height of the product is 2.35 mm. 18 mm long The output type is 3-State. Texas Instruments is a trusted brand for quality electronics The product uses the ABT logic family. Line/Memory Driver. This product is equipped with 12 for efficient performance. Maximum supply current: 48000 uA This product has a - 12 mA, ensuring reliable performance in demanding applications. Single-Ended is the input signal type. Low Level Output Current is 12 mA 5 V operating supply voltage range Buffers & Line Drivers product type The propagation delay time is 5.7 ns. 20 of 100 Logic ICs as subcategory 1. 0.025778 oz of Unit Weight

SN74ABT5402ADW Image

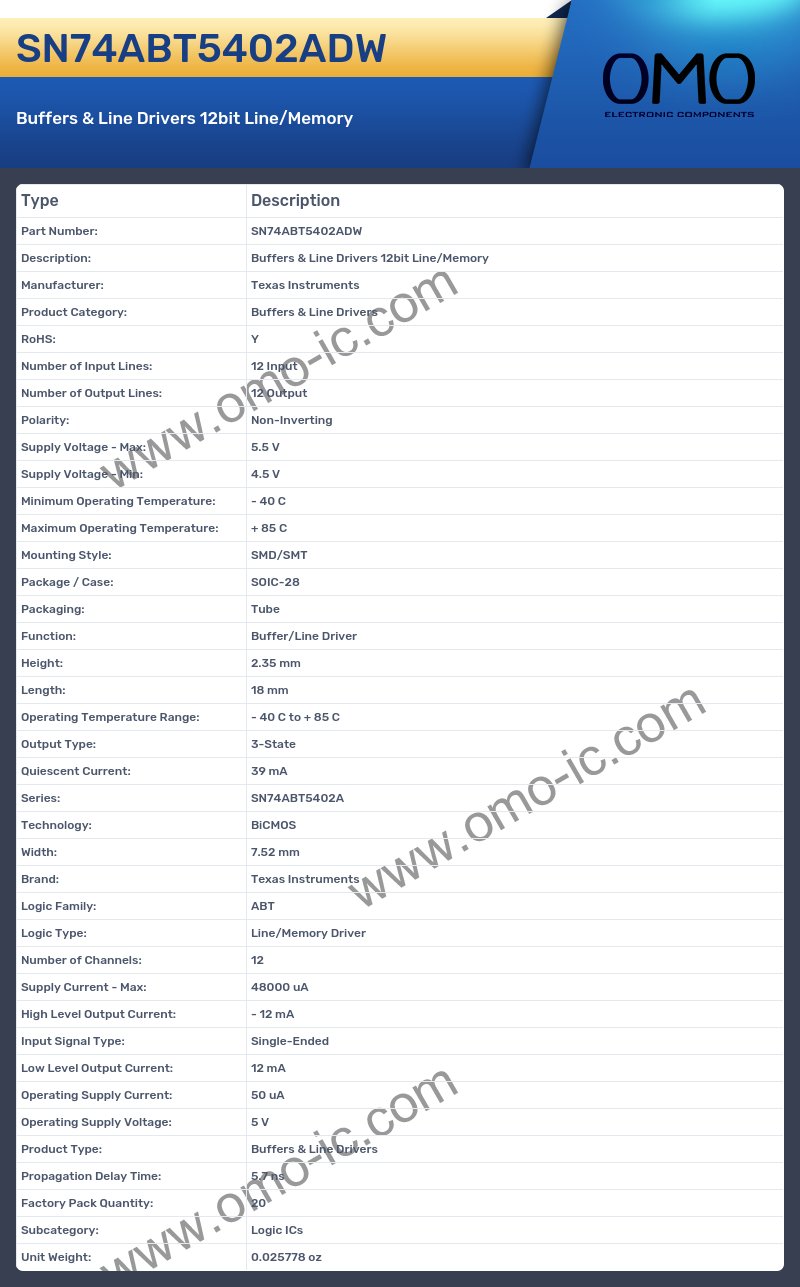

SN74ABT5402ADW Specifications

• Manufacturer: Texas Instruments
• Product Category: Buffers & Line Drivers
• RoHS: Y
• Number of Input Lines: 12 Input
• Number of Output Lines: 12 Output
• Polarity: Non-Inverting
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 4.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-28
• Packaging: Tube
• Function: Buffer/Line Driver
• Height: 2.35 mm
• Length: 18 mm
• Operating Temperature Range: - 40 C to + 85 C
• Output Type: 3-State
• Quiescent Current: 39 mA
• Series: SN74ABT5402A
• Technology: BiCMOS
• Width: 7.52 mm
• Brand: Texas Instruments
• Logic Family: ABT
• Logic Type: Line/Memory Driver
• Number of Channels: 12
• Supply Current - Max: 48000 uA
• High Level Output Current: - 12 mA
• Input Signal Type: Single-Ended
• Low Level Output Current: 12 mA
• Operating Supply Current: 50 uA
• Operating Supply Voltage: 5 V
• Product Type: Buffers & Line Drivers
• Propagation Delay Time: 5.7 ns
• Factory Pack Quantity: 20
• Subcategory: Logic ICs
• Unit Weight: 0.025778 oz
