SN74AHCT595DRE4

SN74AHCT595DRE4 Overview

This product is manufactured by Texas Instruments. Serial to Serial/Parallel is the counting sequence used. This product has 1 circuit. Number of bits: 8 bit SOP-16 package/case type is utilized by this product. The product uses the AHCT logic family. CMOS. The output type is 3-State. The propagation delay time is 10.2 ns. Supply Voltage - Min: 4.5 V Supply Voltage - Max: 5.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing t's a Shift Register The height of the product is 1.58 mm. 9.9 mm long Texas Instruments is a trusted brand for quality electronics The product can operate at a maximum temperature of SMD/SMT. 5 V operating supply voltage range Counter Shift Registers product type 2500 of 100 Logic ICs as subcategory This product's Positive Edge. 1. 0.004938 oz of Unit Weight

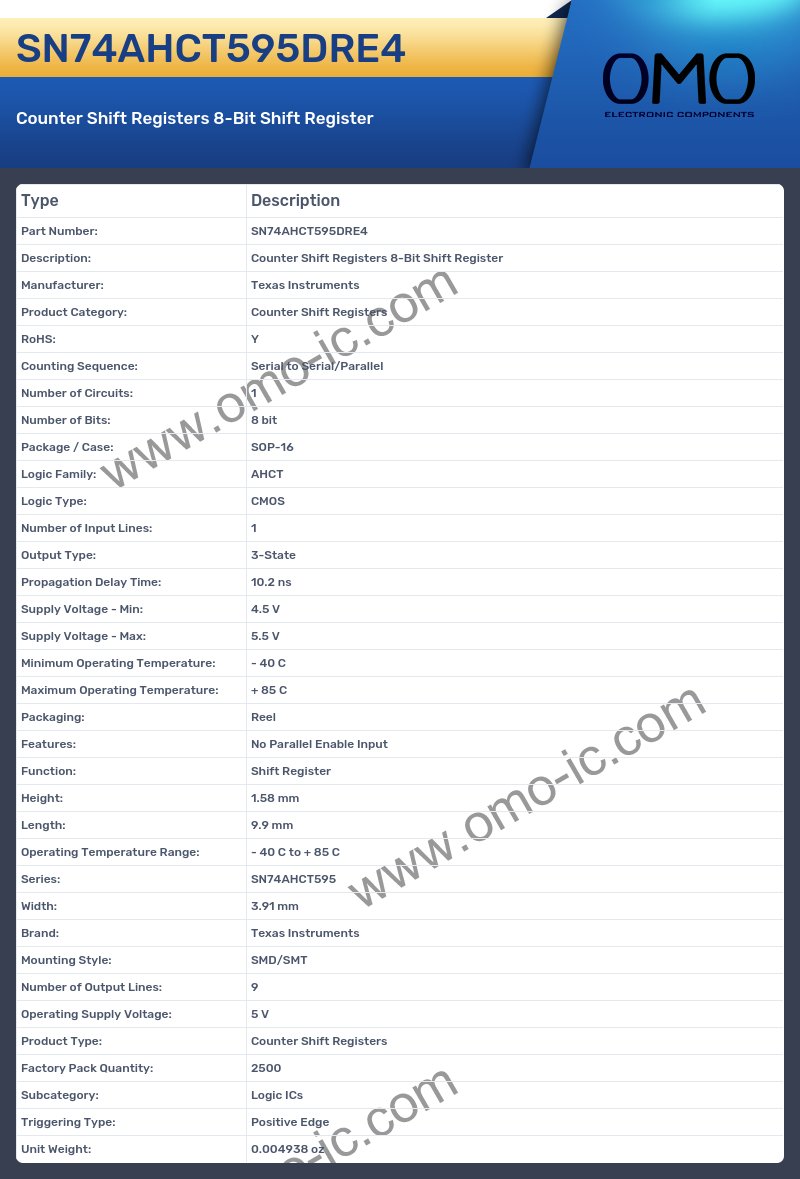

SN74AHCT595DRE4 Image

SN74AHCT595DRE4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Counter Shift Registers
• RoHS: Y
• Counting Sequence: Serial to Serial/Parallel
• Number of Circuits: 1
• Number of Bits: 8 bit
• Package / Case: SOP-16
• Logic Family: AHCT
• Logic Type: CMOS
• Number of Input Lines: 1
• Output Type: 3-State
• Propagation Delay Time: 10.2 ns
• Supply Voltage - Min: 4.5 V
• Supply Voltage - Max: 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Reel
• Features: No Parallel Enable Input
• Function: Shift Register
• Height: 1.58 mm
• Length: 9.9 mm
• Operating Temperature Range: - 40 C to + 85 C
• Series: SN74AHCT595
• Width: 3.91 mm
• Brand: Texas Instruments
• Mounting Style: SMD/SMT
• Number of Output Lines: 9
• Operating Supply Voltage: 5 V
• Product Type: Counter Shift Registers
• Factory Pack Quantity: 2500
• Subcategory: Logic ICs
• Triggering Type: Positive Edge
• Unit Weight: 0.004938 oz
