SN74ALS258AN

SN74ALS258AN Overview

This product is manufactured by Texas Instruments. Selectors / Multiplexers The product uses the ALS logic family. Number of bits: 4 bit The propagation delay time is 8 ns. Supply Voltage - Min: 4.5 V Supply Voltage - Max: 5.5 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of Through Hole. PDIP-16 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Multiplexer The height of the product is 4.57 mm. 19.3 mm long This product has Quad circuit. Texas Instruments is a trusted brand for quality electronics Data Selectors/Multiplexers. This product has a - 2.6 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 24 mA The Maximum Clock Frequency of this product is 75 MHz. 5 V operating supply voltage range Encoders, Decoders, Multiplexers & Demultiplexers product type 25 of 100 Logic ICs as subcategory 1. 0.033570 oz of Unit Weight

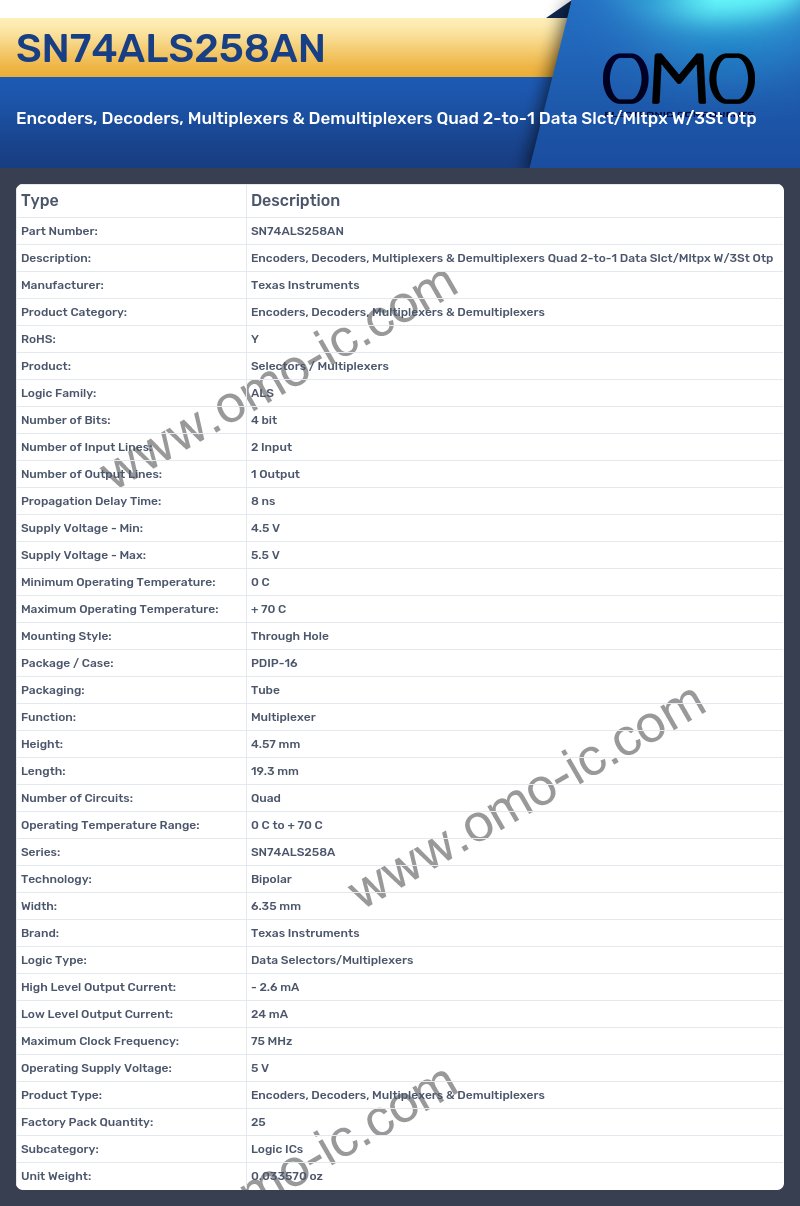

SN74ALS258AN Image

SN74ALS258AN Specifications

• Manufacturer: Texas Instruments
• Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
• RoHS: Y
• Product: Selectors / Multiplexers
• Logic Family: ALS
• Number of Bits: 4 bit
• Number of Input Lines: 2 Input
• Number of Output Lines: 1 Output
• Propagation Delay Time: 8 ns
• Supply Voltage - Min: 4.5 V
• Supply Voltage - Max: 5.5 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Mounting Style: Through Hole
• Package / Case: PDIP-16
• Packaging: Tube
• Function: Multiplexer
• Height: 4.57 mm
• Length: 19.3 mm
• Number of Circuits: Quad
• Operating Temperature Range: 0 C to + 70 C
• Series: SN74ALS258A
• Technology: Bipolar
• Width: 6.35 mm
• Brand: Texas Instruments
• Logic Type: Data Selectors/Multiplexers
• High Level Output Current: - 2.6 mA
• Low Level Output Current: 24 mA
• Maximum Clock Frequency: 75 MHz
• Operating Supply Voltage: 5 V
• Product Type: Encoders, Decoders, Multiplexers & Demultiplexers
• Factory Pack Quantity: 25
• Subcategory: Logic ICs
• Unit Weight: 0.033570 oz
